Table 3: System Configuration Option Definitions
Hardware Configuration
Displays the Model, Type, Revision number, and
Power Supply options for the modem and its ELIMs
and OLIMs. Also displays the modem's SNMP status,
if applicable.
Functional Configuration
Provides functional configuration settings for Framing
Pattern, Line Length and Coding.
Link Level Trap Configuration
Enables or disables traps to the customer's Network
Manager
Alarm Output Configuration
Allows regulation of Major/Minor and On/Off
conditions for each alarm condition
SNMP Configuration
Set up SNMP, if a Network Manager is in use (Stand
Alone only)
What follows is a suggested order for viewing and configuring the 2461 modem's parameters.
The screens can actually be accessed and configured in any desired sequence.
4.4.1 Hardware Configuration Status
The Hardware Configuration screen (see Figure 26) provides detailed information about the
modem, modem components, the modem's remote and redundant partners, and SNMP status.
Hardware Configuration Status options are spread over two screens. The first screen is shown
here. To view this information:
1. From the Main Menu, type "1" to enter the System Configuration Screen
2. Type "1" to view the Hardware Configuration screen.
3. The Hardware Configuration Screen appears. This is a status reporting screen only. No
options may be set from here.

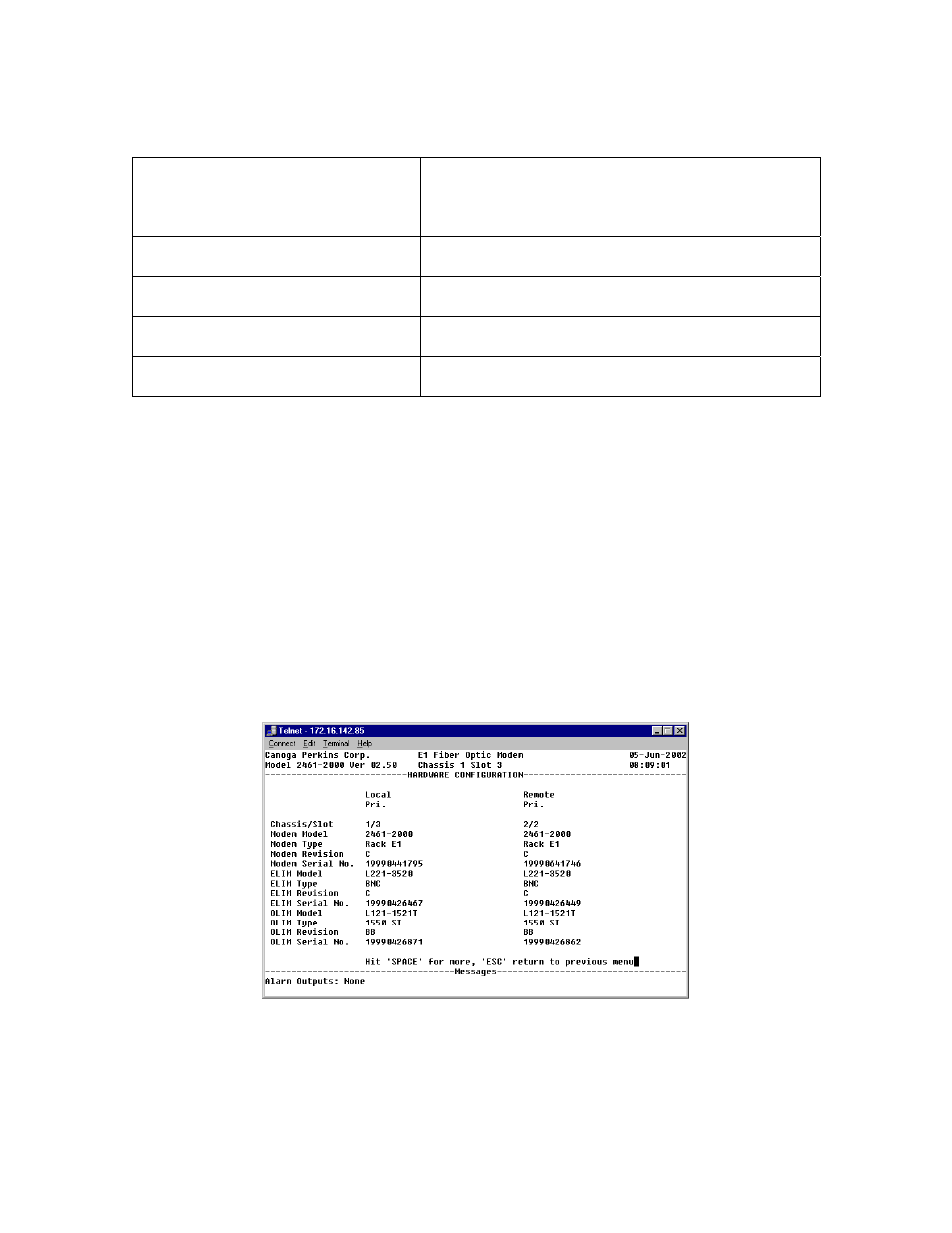

Figure 26. The Hardware Configuration Screen (First of two screens).
