C.R.Plastic Products L38 - Manual (Page 3)

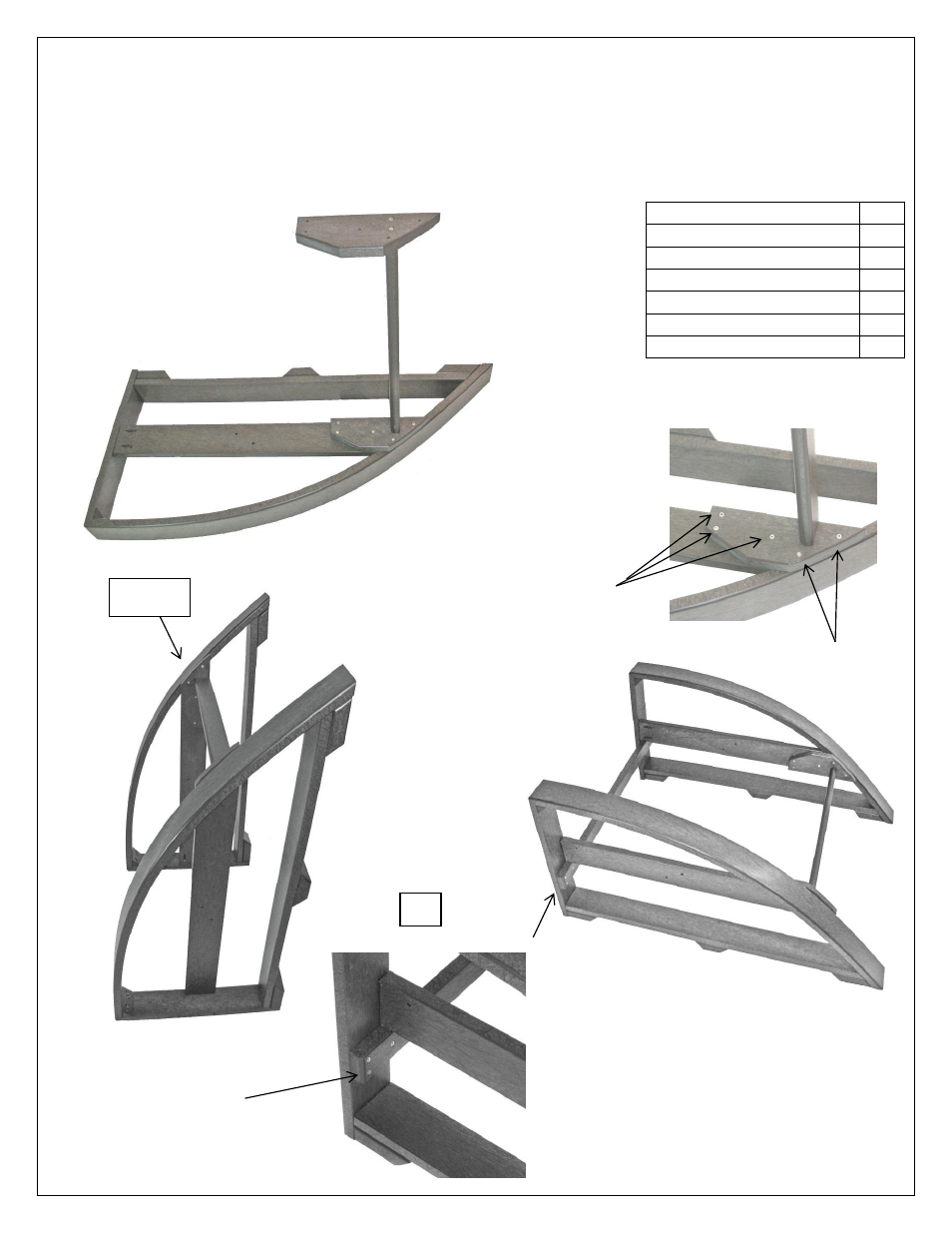

Step 1: Set the Left Arm (A) on its side as shown and attach Rear Stringer (C) with two 2” and
three 1-1/2”screws. (Detail X)
Step 2: Stand assy. on end and secure Right Arm (B) with two 2” and three 1-1/2” screws.
Step 3: Set assy. down flat and attach Front Stringer (D) with six 1-1/2” screws (detail Y)
Required Qty
Left Arm Assy. (A) 1
Rear Stringer (C) 1
Right Arm (B) 1
Front Stringer 1
1-1/2” screws 12
2” Screws
4
Step 1
Step 2
Step 3
1-1/2” Screws
X
Y
2 “ Screws
1-1/2” Screws
