50
Effective Date: 5/98 RDR 2000 Pilot's Guide: Rev 3

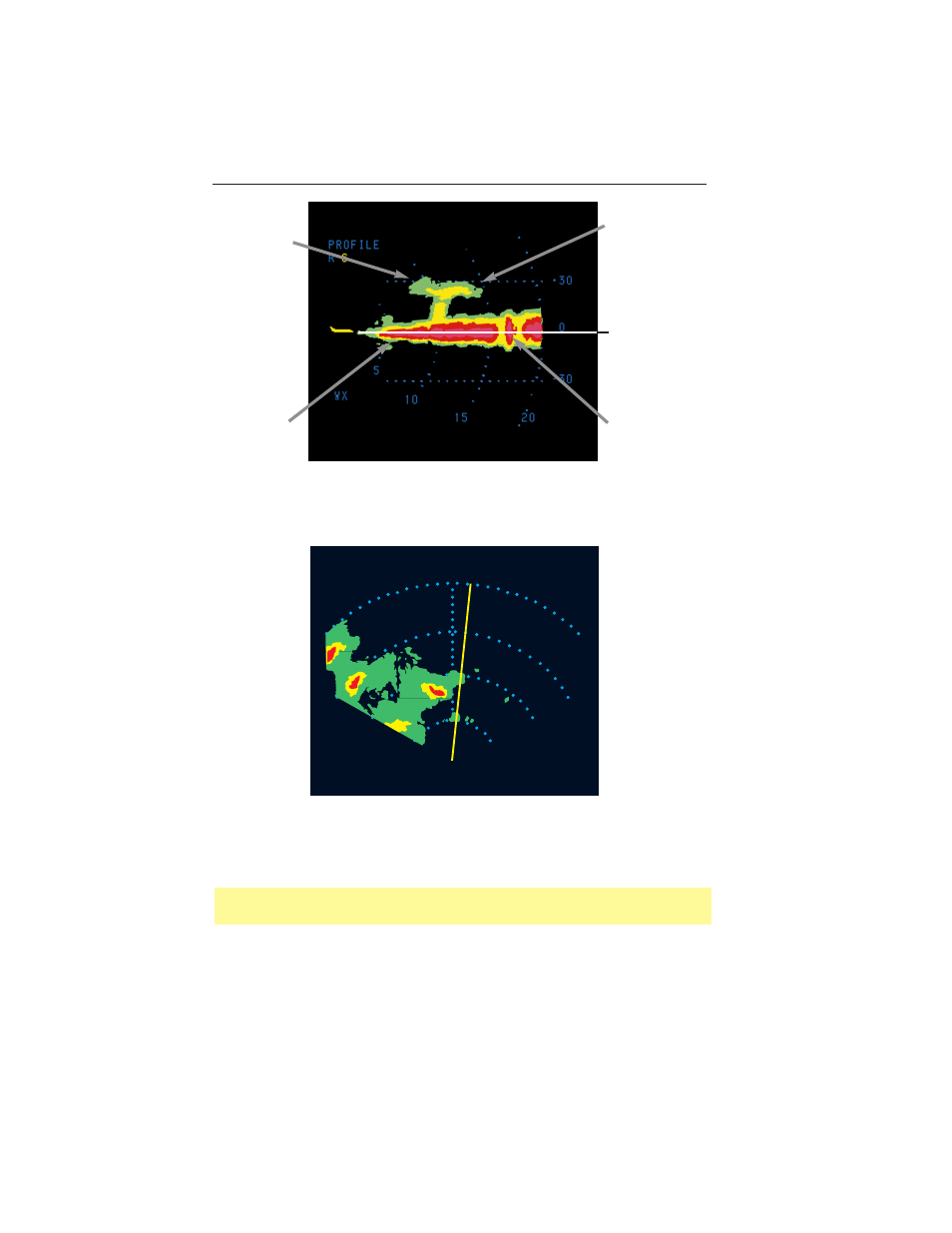

Figure 10: Vertical Profile View
Low Level Weather & Ground Returns
Aircraft on Ground at Fort Collins
Loveland, Colorado
Figure 10A: Standard Azimuth View
Low Level Weather Ground Returns
Aircraft on Ground in Fort Collins
Loveland Colorado
Note: The image will be symmetrical in ground map mode and slightly
truncated at the bottom side of the return in Wx Mode.
Figure 10: 20 nm range selected, aircraft on the ground at Fort Collins
Loveland, Colorado airport. Strong symmetrical ground returns are
depicted out to 20 nautical miles. A shaft of precipitation approximately 3
nautical miles wide starts at 9 nautical miles, rises and mushrooms. An
interesting point to note between the azimuth and VP presentation is the
VP Operation In-Flight
WX
10
15
20
6
U 2.2
5
Center of
Ground
Return
Non-
Symmetrical
Return
Indicates
Weather
“Symmetrical”
Ground
Returns - see
note below
Possible
Weather
Returns
+30° Scan
Up
Limit
Storm
Extends
Past
the Point
