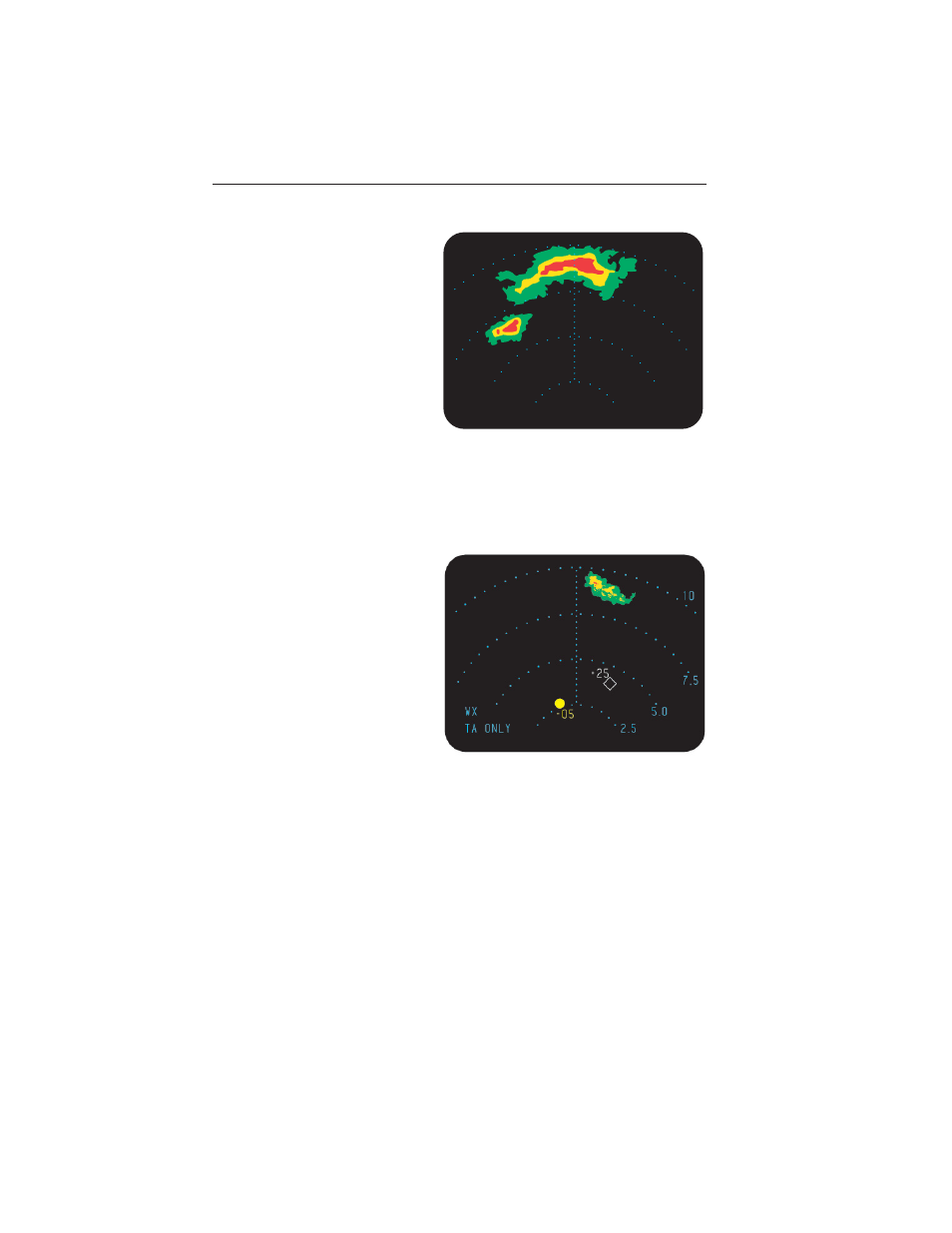

WEATHER ONLY MODE
In this mode of operation, only
weather radar information is
displayed until a Traffic
Advisory is issued by the TAS
Processor. The range is con-
trolled by the weather radar
range control in this mode of
operation. When a Traffic
Advisory occurs, the display
will revert to the default TAS
display (either TAS Only or
Weather/TAS Overlay) select-
ed during installation by the
pop-up default discrete. When TAS determines the Traffic Advisory is
over, the display will revert to the weather radar picture. The TAS mode
is annunciated by TA AUTO in the lower left hand corner of the screen.
WEATHER WITH TAS TRAFFIC MODE
A full time TAS display over-
lays the weather display in this
mode. The display origin may
be either at the bottom of the
screen or the center of the
screen, depending on the spe-
cific installation. Weather will
be displayed in the upper 90°
or 120° sector, depending on
which radar is being used.
Weather is blanked in the
areas where TAS traffic is dis-
played. The range displayed in
this mode is that which was selected for weather radar. If weather radar
is in the standby mode or other non-radar mode, the display will be the
same as that in the TAS Only mode. This mode is maintained unless
another mode is manually selected. The TAS operational mode is
annunciated along with the pilot selected weather radar mode in the
lower left hand corner of the screen unless the radar is in standby, in
which case the TAS mode is displayed in the upper right hand corner.
WX
60
80
20
40
TA AUTO
