KTA 870/KMH 880 Pilot’s Guide
TAS Controls and Displays
006-18265-0000
16

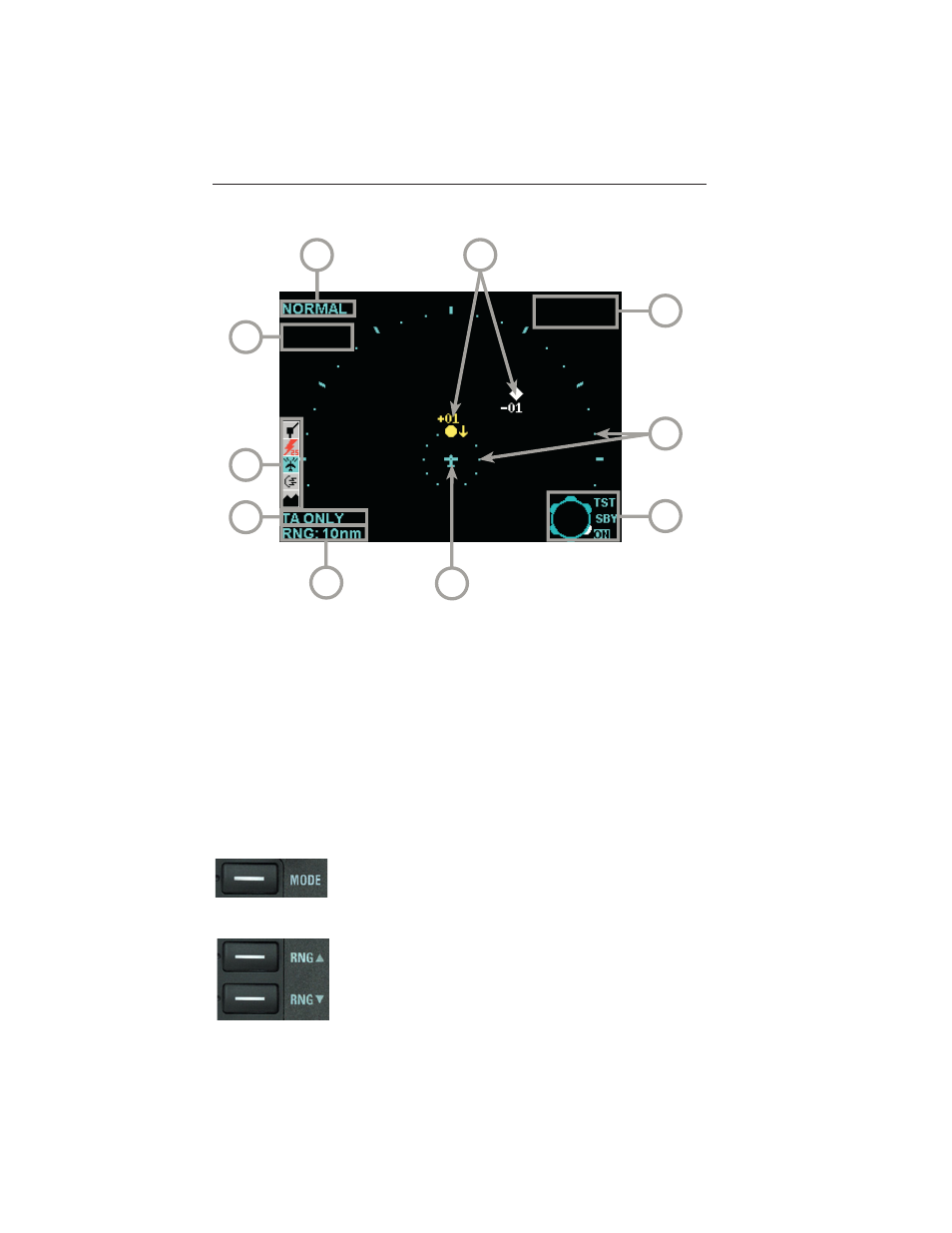

The following illustration defines the data that appears on the Traffic
Display Page:
KMD 550/850 TRAFFIC Page (TAS) OPERATIONAL CONTROLS
MODE - Toggles the altitude tag between relative or
absolute altitude as shown in Figures 1 and 2. This
key may be enabled or disabled in system configura-
tion.
RNG
▲/RNG▼ - Advances the indicator to the next
range. The upper button increases range, the lower
button decreases it. The selected range is displayed in
the lower left corner of the display with the inner range
ring always 2 nm.
1 Display Range - RNG:###nm
2 TAS Operating Mode - TAS TST, TAS SBY, TA Only, or TAS Fail
3 Icon Bar - Displays icons representing data available (black) and
displayed (color)
4 Current Flight Level - FL:###
5 Altitude Volume - NORMAL, ABOVE or BELOW
6 Traffic Intruder Symbols - Indicates type of traffic, altitude of traffic and
vertical trend of traffic.
7 “No Bearing” Intruder Dispay Area - AA X.XNM ±XX
8 Range Rings - Outer ring radius is selected range, inner ring radius is
always two nautical miles
9 Outer Knob Icon - Shows current knob selection
10 Aircraft Symbol - Stylized airplane indicating aircraft position
1
5
3
4
2
8
6
7
9
10
