KLR 10 Lift Reserve Indicator Pilot’s Guide
P/N D201306000109 KLR 10 Controls
Rev 1 Feb 2014 Page 2-9
Good
OAA Set
point?
In-Flight calibration requires the pilot to climb to a
safe altitude for slow flight maneuvers. The pilot will
fly the aircraft to the condition of Optimum Alpha
Angle (OAA). Aircraft is at OAA, when:
1.) Aircraft is at a safe altitude for slow flight
maneuvers.
2.) Minimum controllable flight, lower power
setting (such as a down wind or landing
pattern power setting).
3.) Able to hold altitude, 0 Vertical Speed, not
descending, zero sink (5 to 10 fpm climb
OK if your aircraft loses flight control
stability at 0 VS).
4.) Full aileron, elevator and rudder control, not in
a buffet, pilot to identify the set point by
pitching back slowly to a pitch no longer able
to climb but able to hold altitude with full
control of the airplane.
Once a good OAA Set point has
been achieved, the pilot
continues to STEP 2 and MUST
enter into the Cruise Calibration
Mode or repeat the OAA Set
point Operation.
SET
AGAIN?
BAD
To set an OAA,
quickly press and
release CAL SET
button (Step C).
GOOD
STEP 1
IN- FLIGHT
CALIBRATION of KLR 10
OPTIMUM ALPHA ANGLE
(OAA)
SET POINT
Step C
Press and
release CAL
SET button
to calibrate
when flying
at OAA.
Step A
Turn the
Calibration
Mode Switch
so slot is
vertical.
Turn the Calibration Mode Switch so
slot is vertical (Step A). Press the
Brightness button (Step B). The
Blue Circle / Donut on the display
flashes three times, and the unit
announces “ Calibration Mode On”.
The system has entered the OAA
set-point calibration mode.
Note: The Blue Circle / Donut
flashes 2 times every five to six
seconds to indicate the unit is in
OAA set point calibration mode. The
system will remain at OAA Set Point
calibration mode until a valid value
has been entered.
Step B
Press the
brightness
button.

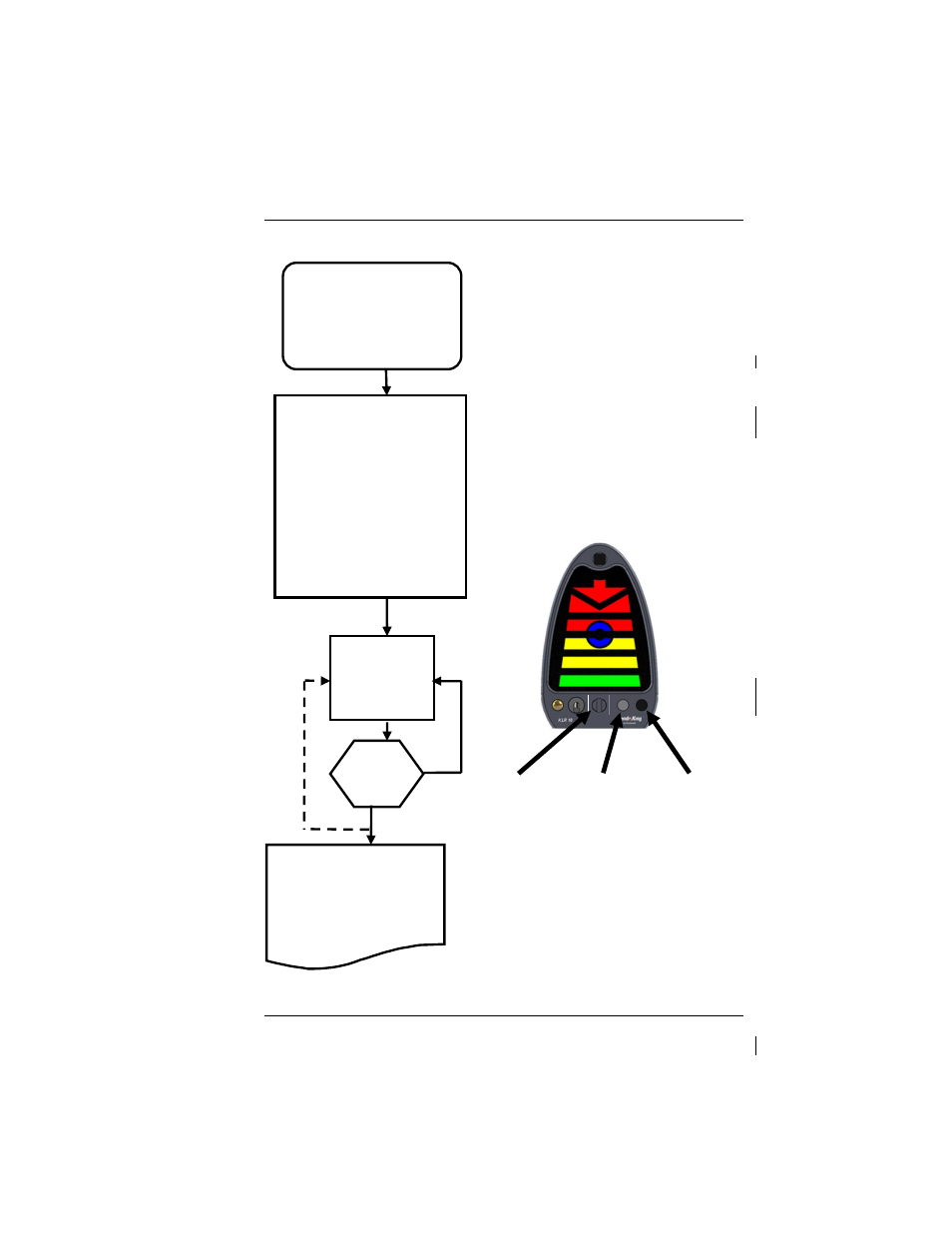

Figure 2-2: OAA Setpoint Calibration
