OBJECTIVE: Fly outbound on the
localizer, complete a procedure turn
and fly the localizer back course
approach to the airport.
1. In Heading Select and Altitude
Hold mode with the localizer fre-
quency selected in the active naviga-
tion receiver, the aircraft is flying 45°
to intercept the localizer. The localizer
front course of 090° is selected with
the HSI course pointer. Remember
that the course pointer is always
selected to the localizer front course
to obtain correct “fly to” indications on
the HSI.
As the aircraft nears the local-
izer, the APR pushbutton is
depressed to arm the Approach
mode so that the localizer will be
captured and tracked. The capture
point computation is based on devia-
tion and deviation rate of change.

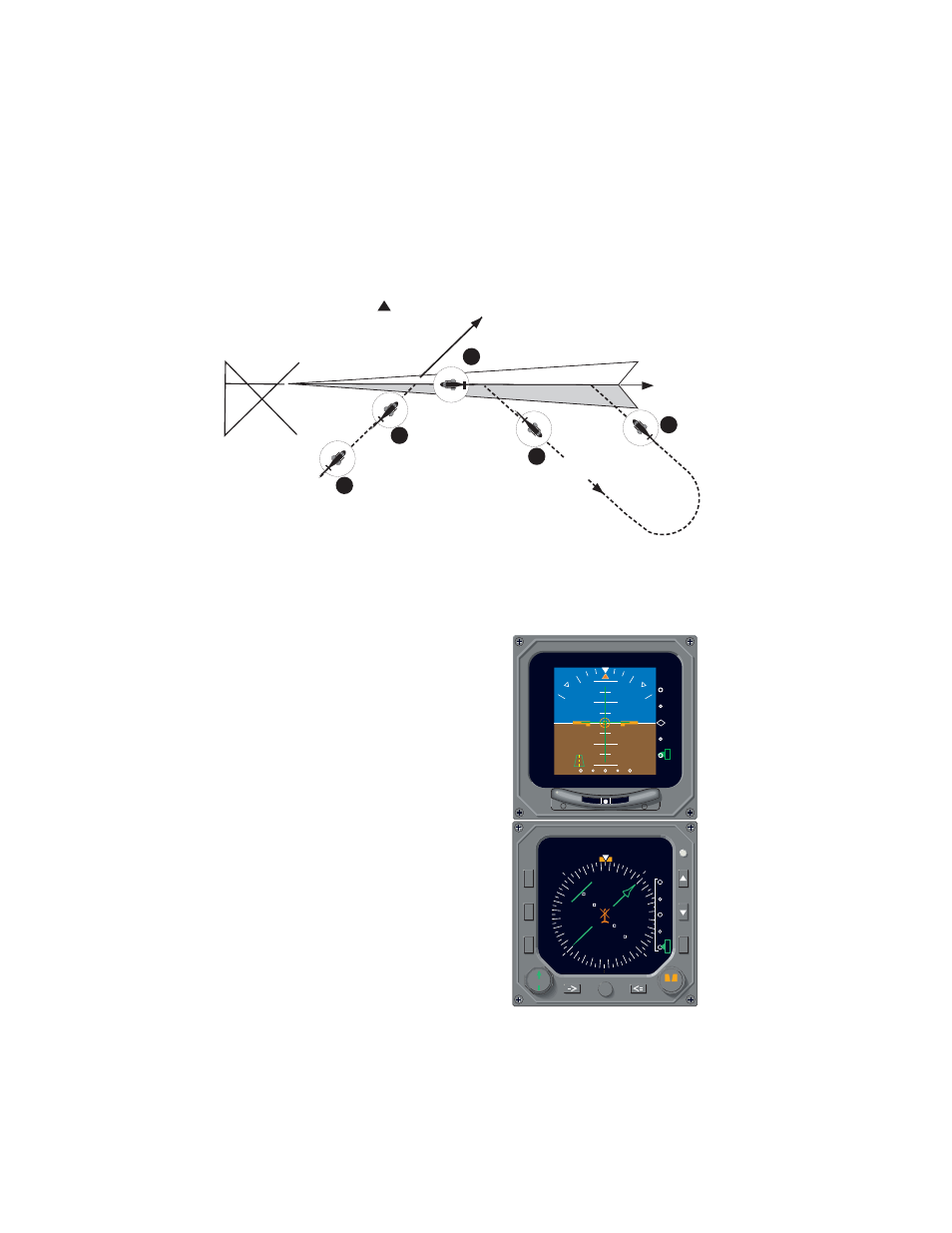

Localizer Back Course Approach
