31
TST
BRT
1
2
1
SYNC
REF
DIR
N
A
V
A
R
C H
S
I
ADF 2
L
O
C
1
CRS
359 12.6
NM
11.
5
11.
5
G
S
N
33
30
W
24
21
S
15
12
E
6
3
360°
1
2
3
4
5
6
7

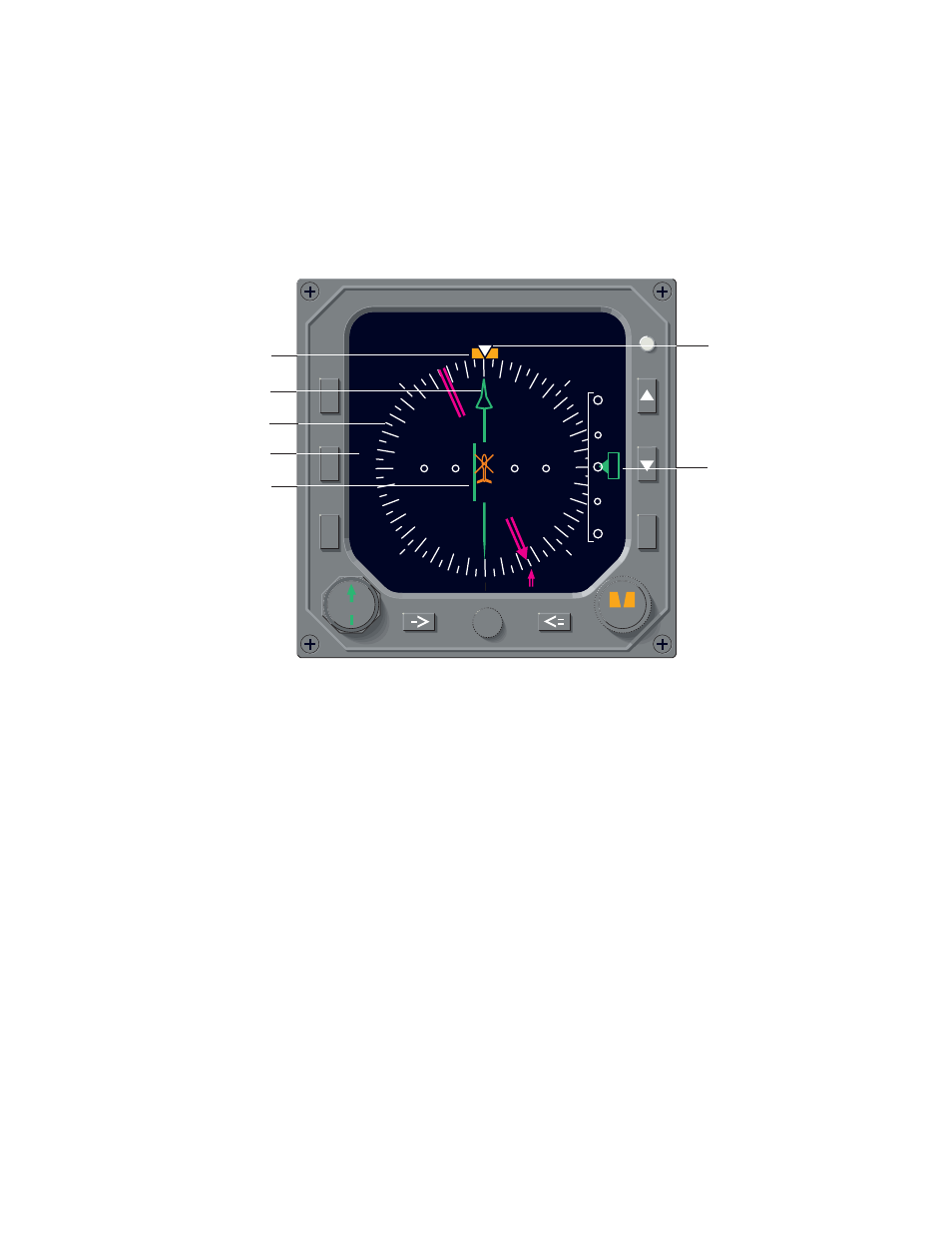

1. Heading Bug
2. Course Pointer
3. Compass Card
4. Navigation Source 5. Course Deviation Indicator
6. Lubber Line
7. Vertical Scale Pointer
The EFS 40 Electronic Flight Instrument System is integrated with the KFC
500 to simplify the navigation interface and switching. The EFS 40 Symbol
Generator provides the Flight Computer will all of the navigation receiver infor-
mation via the ARINC 429 digital data bus. The Symbol Generator accepts all
of the analog and digital navigation and DME information and concentrates it
into a single data bus structure. The KFC 500 captures and tracks the naviga-
tion source selected on the pilot's EHSI if the Flight Director NAV mode is
chosen. The EFS 40 Symbol Generator also provides redundant monitoring
of attitude.
