29
Marker Beacon Annunciation —
The three marker beacon
annunciations are capable of being
displayed on the EADI. Outer
marker, “OM”, is displayed in cyan,
middle marker, “MM”, is displayed in
orange, and the inner marker, “IM”,
is displayed in white. Rising Runway — The display of
the rising runway is available in the
Approach mode when a localizer or
MLS and radar altitude are
available. The symbolic rising
runway will be displayed in the
lower center of the display just
above the LOC/MLS lateral
deviation scale.

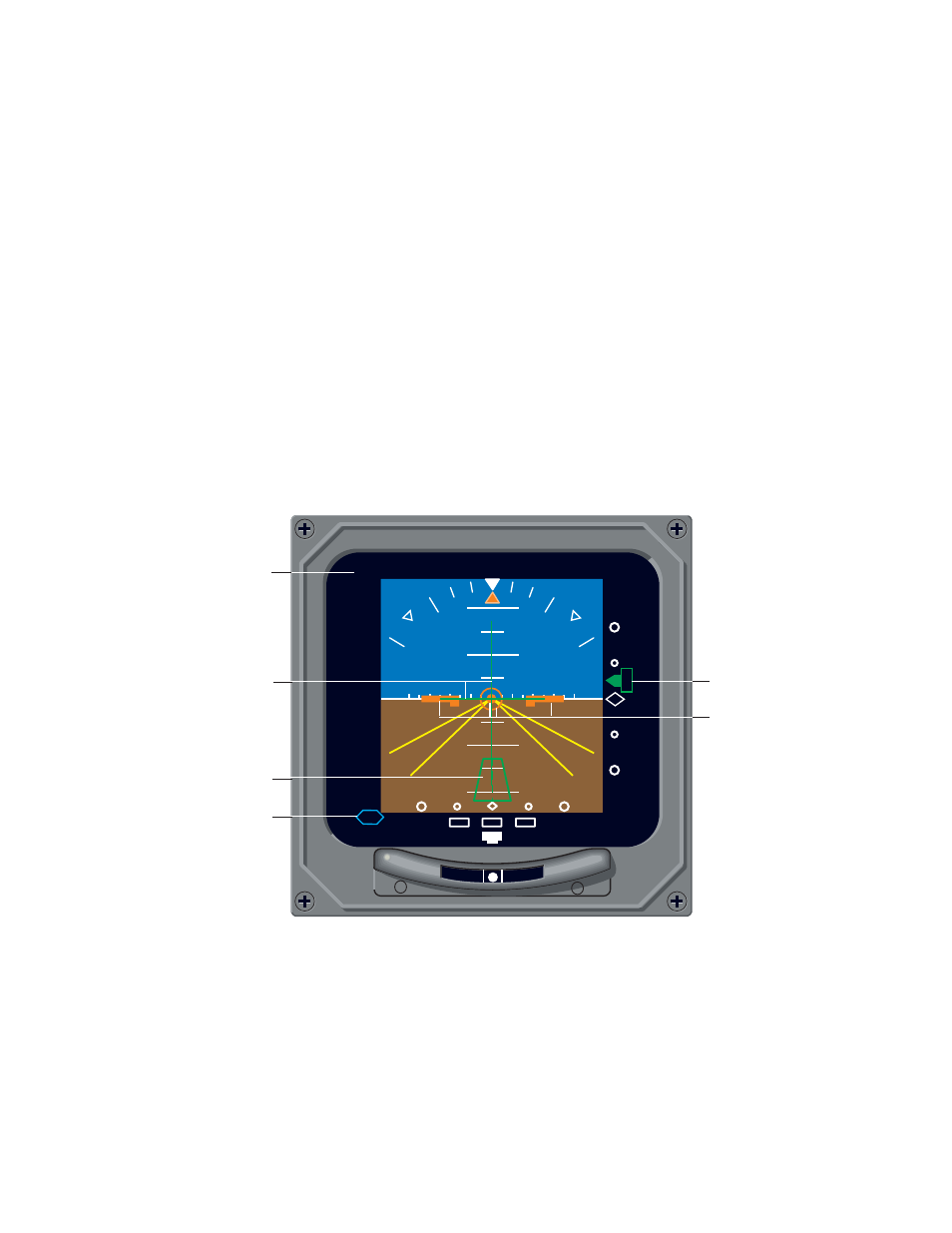

1. Flight Control Mode Annunciations
2. Flight Director Command Bars
3. Rising Runway 4. Marker Annunciation
5. Vertical Scale
6. Symbolic Aircraft
ı
6
F
/M
3 N T
RA
20
10
20
10
20
10
20
LOC
DH
10
1000
LOC
HDG VS
AP
YD
1257
1257
ALT
G
S
OM
1
2
3
4
5
6
EADI 40 Electronic Attitude Indicator
