17
GeniSys Gas Power Burner Control Installation and Operation Manual
▪ Flame is not being proven, control will lockout or enter waiting period.
▪ With power off, check the electrical connections from the control to
the flame rod.
▪ Make sure all connections are clean and free of corrosion or build up.
▪ Check the continuity of the ground wire and the sense wire.
▪ The control, electrode and flame sensor must have a common ground
with the burner for proper operation.
▪ Check the ceramic on the flame rod for any chips or cracks, replace
if needed.
▪ Check the flame rod for build up and clean or replace if needed.
▪ Make sure the electrode and flame rod are covered with a steady,
stable flame, adjust flame rod or electrode if needed.
▪ Restore power, if flame is still not being proven, replace the control.

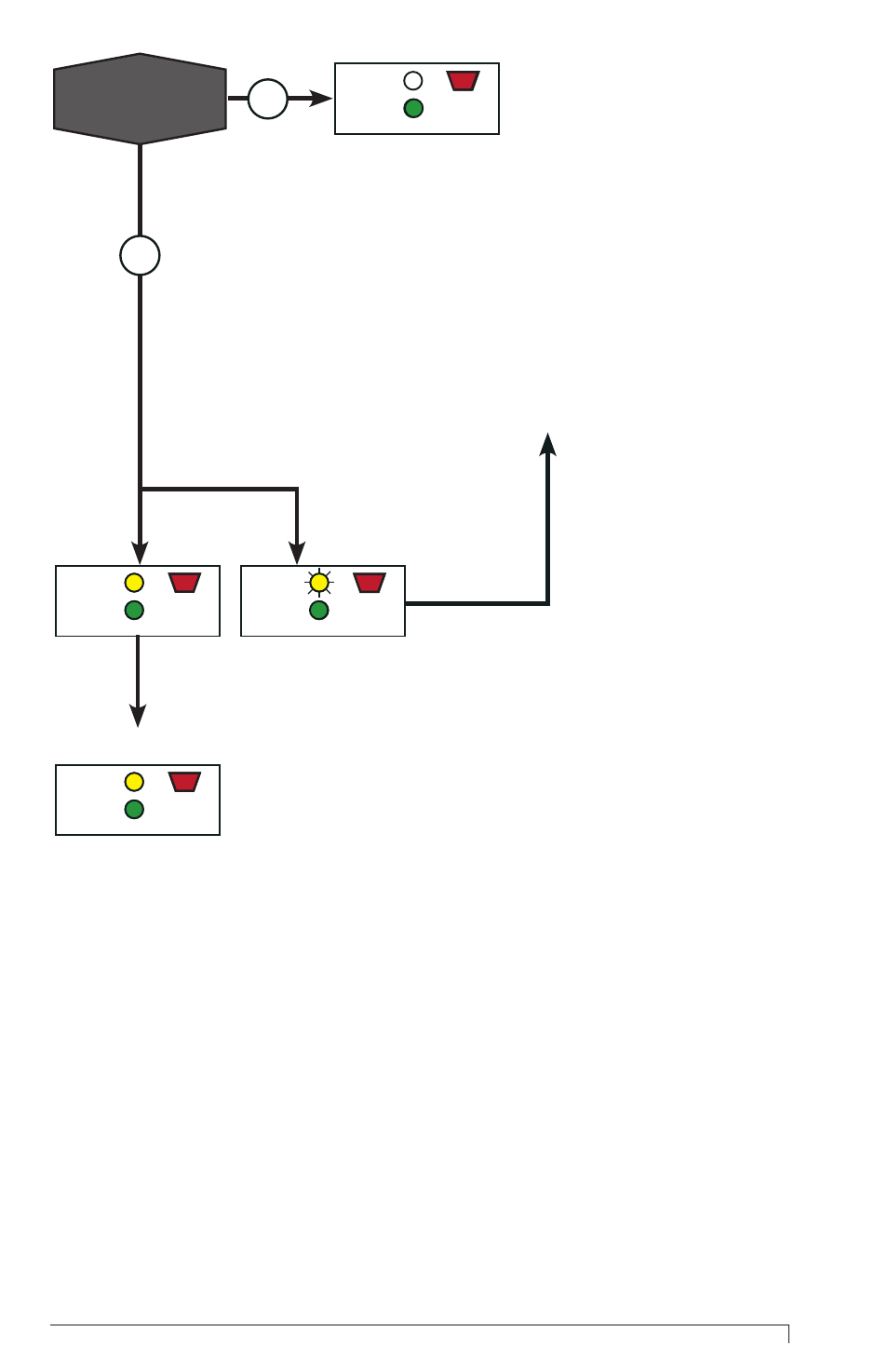

Is the yellow
Flame LED on?
Normal run mode
Note: If Flame LED is flashing slowly,
follow these same steps to improve
flame signal strength and reliability.
▪ When the burner lights successfully, turn the thermostat or controller off to end the call for heat.
▪ The burner should go out quickly. All LEDs on the control should go out.
▪ If the burner remains lit for more than a few seconds, and the MV LED is out, replace the gas valve.
▪ If the LEDs remain lit, check the thermostat or controller for proper operation.
▪ Repeat the ignition sequence several times to make sure the system is operating properly.
YES
NO
FLAME
MV STATUS
FLAME
MV STATUS
FLAME
MV STATUS
FLAME
MV STATUS
