CG10 Burner Manual

400

500

600

700

800

900

1000

1100

1200

1300

1400

0

0.2

0.4

0.6

0.8

1

Furnace Pressure, In. W.C.

Maximum Capacity, MBH

CG10.6S
CG10.5S
CG10.4S
CG10.3S
CG10.2S
CG10.1S

Verify burner air tube assembly

The information in this section may be disregarded if
the burner supplied by the appliance manufacturer is
a matched component.
Maximum fi ring capacity depends on the furnace
pressure. Use the charts shown in Figure 3 and
Figure 4, to verify the correct burner confi guration for
the input rate.
Refer to Figure 5 to verify the air tube assembly
length and mounting insertion dimensions.

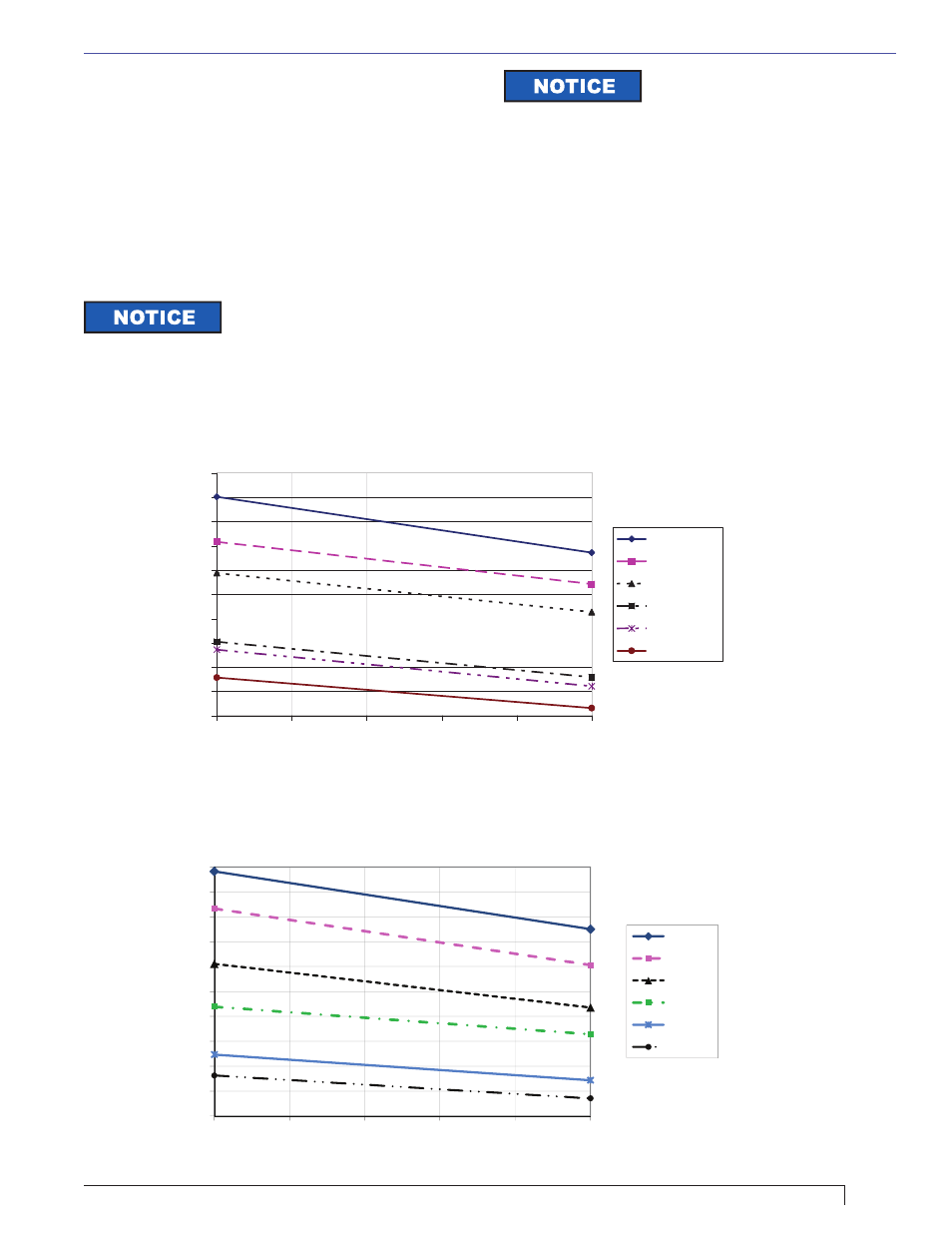

Figure 3. Maximum Capacity (at 3% O

2

) vs Furnace Pressure - Step Spud Confi guration

Section: Pre-installation Checklist

The volume of the furnace
also infl uences the combustion

process. R. W. Beckett Corp. recommends at least 1
cubic foot of furnace volume for each 150,000 BTU/Hr of
fi ring rate.

Flames are shaped by their
furnaces and by its fl ue locations.

Increased height and width can decrease the length
requirement. When shaping is too severe fl ames
impinge on the walls. Impingement causes CO and
carbon deposits and may damage the wall. Maintaining
these minimum dimensions should prevent impingement,
but smaller furnaces may be acceptable depending
upon the results of applications testing. We recommend
factory testing of all new burner/furnace combinations by
the furnace manufacturer and/or R. W. Beckett Corp.

Figure 4. Maximum Capacity (at 3% O

2

) vs Furnace Pressure - Swirler Head Confi guration
