CG10 Burner Manual

Propane Restrictor Description

The Beckett Propane Restrictor Conversion Kit allows
for the conversion of CG10 burners for use with propane
gas. With the proper installation of the restrictor and
attached O-ring, adjustments and settings for propane
use will be the same as the adjustments and settings for
natural gas use as detailed in the burner manual.

Installation

Note that Steps 1 and 2 on the following page refer to
fully assembled burners. Skip to Step 3 when converting
a burner without the air tube assembly installed.

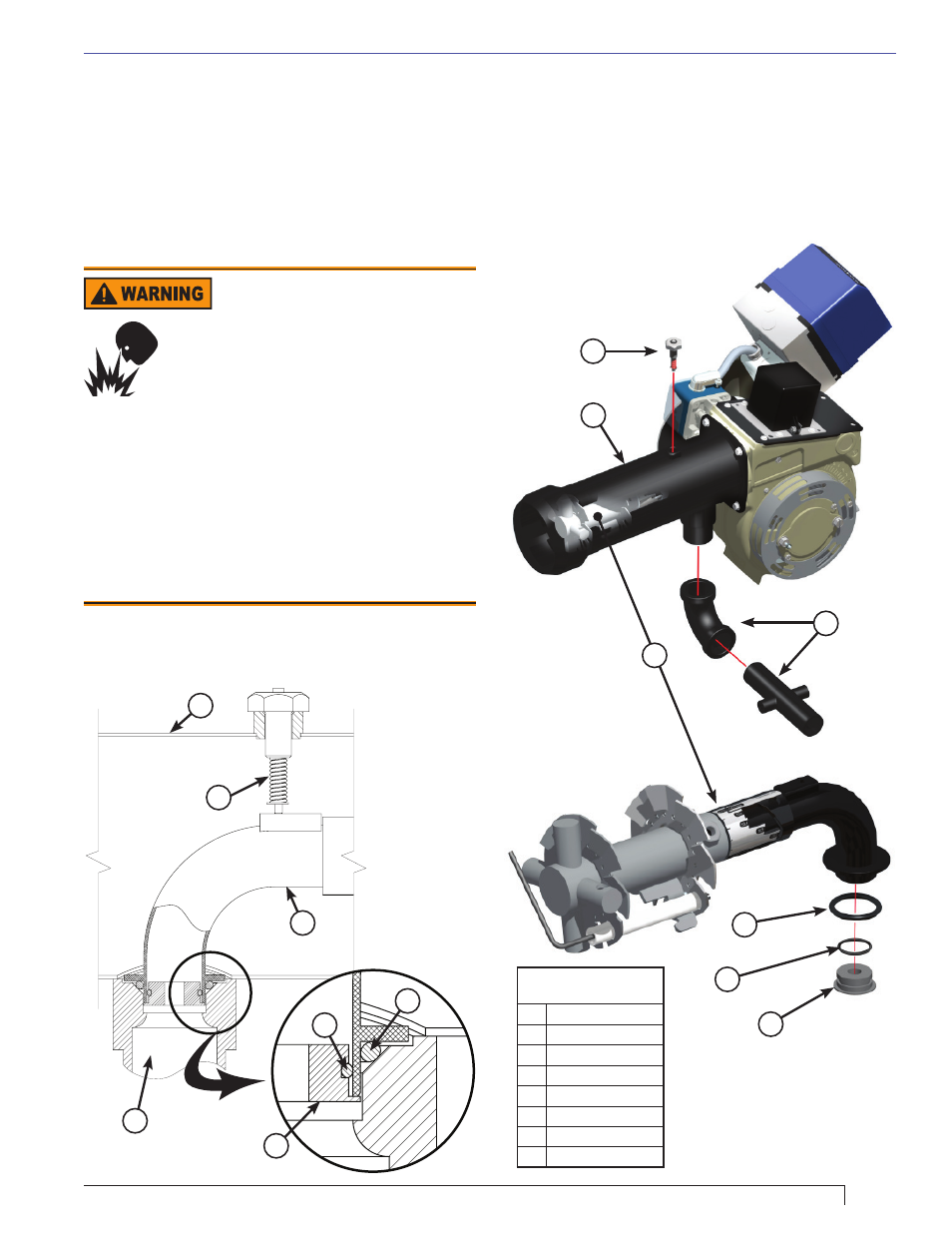

Figure 15 – Propane Conversion Major Components

Figure 16 – Component Locations

Section: Maintenance and Service

This conversion kit shall

be installed by a qualifi ed

service agency in accordance with the

manufacturer’s instructions and all

applicable codes and requirements of the

authority having jurisdiction. (In Canada,

in accordance with the requirements

of the CAN/CGA-B149 Installation Code.) If the

information in these instructions is not followed

exactly, a fi re, explosion, or production of carbon

monoxide may result causing property damage,

personal injury or loss of life. The qualifi ed service

agency is responsible for the proper installation of

this kit. The installation is not proper and complete

until the operation of the converted appliance

is checked, as specifi ed in the manufacturer’s

instructions supplied with the kit.

Major Component Key for

Figure 16 & 17

A

Air Tube

B

Jacking Screw

C

Internal Gas Tube

D

External Gas Manifold

E

Propane Restrictor

F

Union

G

Restrictor O-ring

H

Gas Tube O-ring

B

H

G

E

C

D

A

H

G

E

F

C

B

A
