26 assembl of the radio tray into receiver box y, 27 assembl of the front gear case onto chassis y, 28 assembl of the rear gear case onto chassis y – OFNA Racing Mutilator Power Start User Manual
Page 18
4x16mm
4x10mm
4x12mm
4x12mm
40133
26

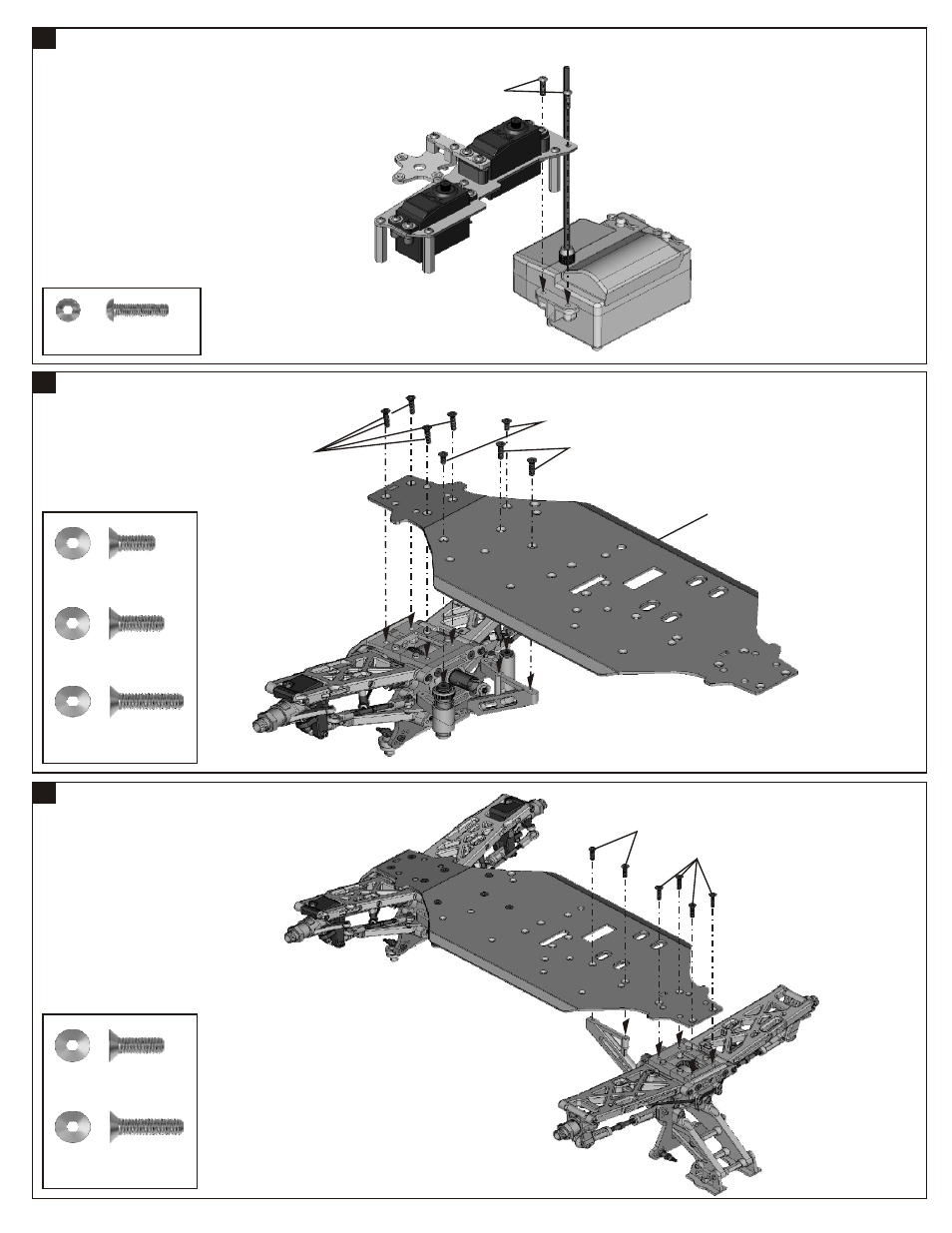

ASSEMBL OF THE RADIO TRAY INTO RECEIVER BOX
Y
........x2
94004
3x12mm
Hex Screw
27
ASSEMBL OF THE FRONT GEAR CASE ONTO CHASSIS
Y
........x2
4x10mm
Flat Head
Hex Screw
........x4
94027
4x16mm
Flat Head
Hex Screw
28
ASSEMBL OF THE REAR GEAR CASE ONTO CHASSIS
Y
........x4
94027
4x16mm
Flat Head
Hex Screw
4x16mm
........x2
94026
4x12mm
Flat Head
Hex Screw
........x2
94026
4x12mm
Flat Head
Hex Screw
3x12mm
