OFNA Racing Jammin SCRT Electric RTR User Manual

Page 35

background image

51

52

53

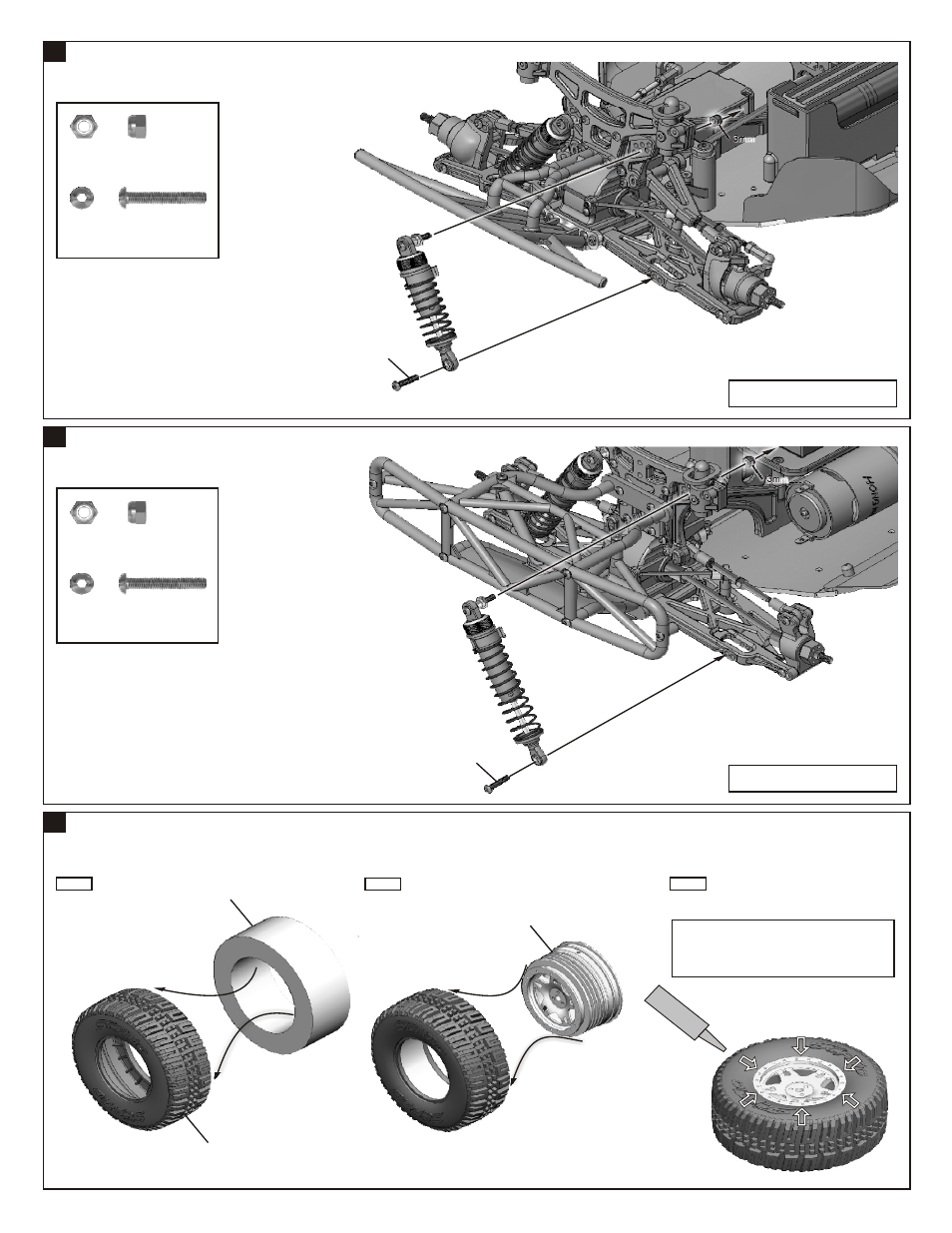

ASSEMBLY OF THE FRONT SHOCK ABSORBER

ASSEMBLY OF THE REAR SHOCK ABSORBER

ASSEMBLY OF THE TIRES AND WHEELS

18

94006
3x18mm
Hex Screw

.....x2

94041
3mm
Nylon Nut

.....x2

94006
3x18mm
Hex Screw

.....x2

94041
3mm
Nylon Nut

.....x2

Step 1

Step 3

Step 2

NS

T

I

TAN

GL

E

U

*Pull back the tire bead slightly and spot glue in
six spots as shown. When dry, glue the rest of
the wheel between the spots.
Repeat the procedure on the other side of the
wheel until fully glued.

40949

40952

3x18mm

3x18mm

3mm

3mm

40950

Assemble both right and left sides.

Assemble both right and left sides.

*Make four tires that are the same.
