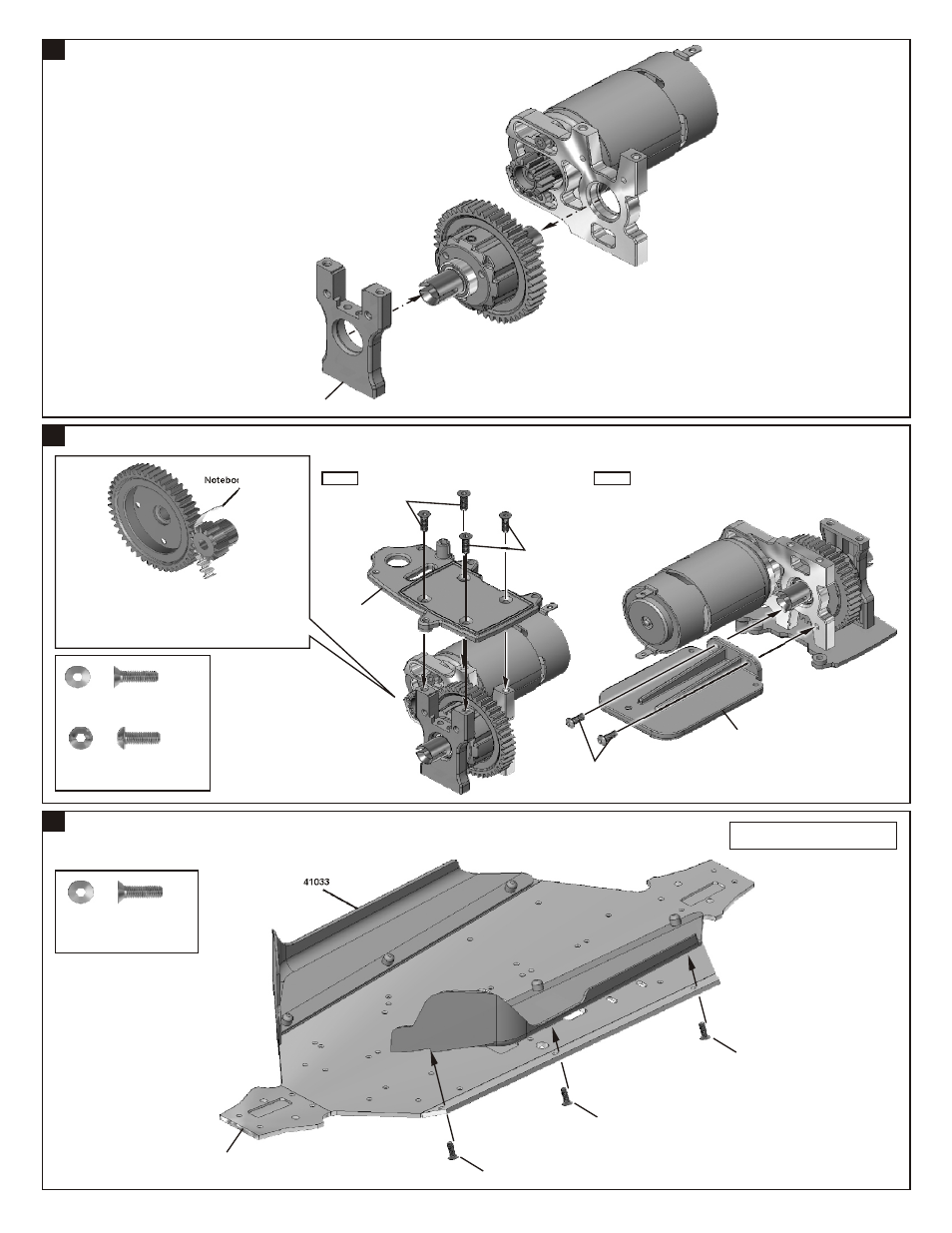

ASSEMBLY OF THE MOTOR MOUNT

ASSEMBLY OF THE STONE GUARD

ASSEMBLY OF THE CENTER DIFF. PLATE

Step 2

Step 1

40844

41033

94019
3x10mm
Flat Head Hex Screw

.....x6

Notebook paper

Use notebook paper to set gear backlash between
spur gear and motor gear, apply pressure
while tightening the motor and then pull out the
paper.
If the gear backlash is not correct, the spur gear
will be damaged.

94002
3x8mm
Hex Screw

.....x2

94019
3x10mm
Flat Head Hex Screw

.....x4

40941

3x10mm

Assemble both right and left sides.

3x8mm

3x10mm

40946

*A view from bottom.
