OFNA Racing Jammin SCRT Electric RTR User Manual
Page 32
43
45

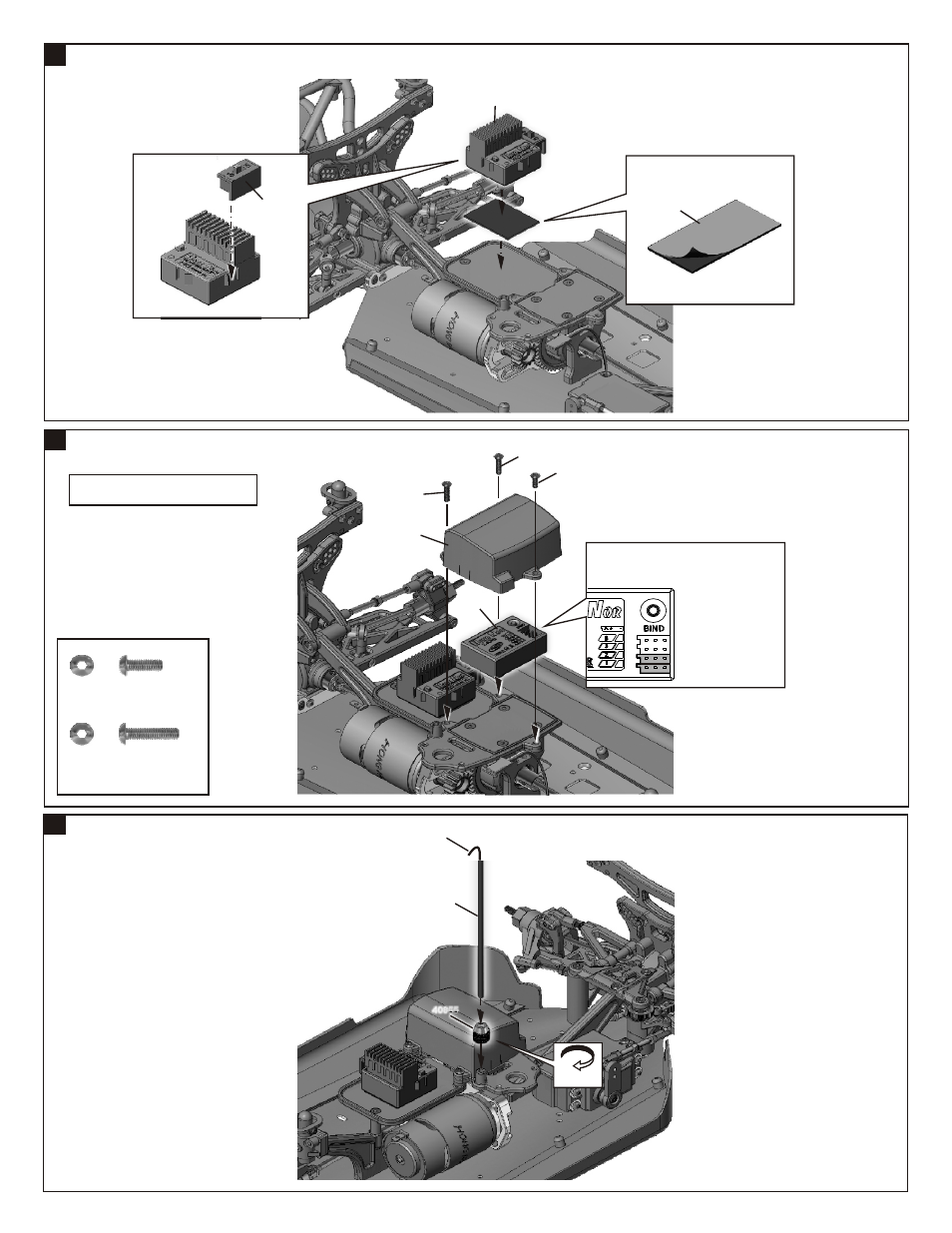

ASSEMBLY OF THE ELECTRIC SPEED CONTROL ONTO MOUNTING PLATE
ASSEMBLY OF THE RECEIVER INTO RADIO CASE
ASSEMBLY OF THE ANTENNA PIPE
15
44
94002
3x8mm
Hex Screw
.....x1
Antenna Wire
94004
3x12mm
Hex Screw
.....x2
3x12mm
3x8mm
2.4 Ghz rx
40855
*To assemble your personal tansponder
see page 20.
37420
*Use adhesive tape to secure your
speed controller.
*Tear off the paper before use.
3x12mm
30560
40946
*Plug in your electric speed controller wire
into channel 2 and plug steering servo
wire into channel 1 of your receiver.
40964
CH.2
CH.1
Switch
Electric Speed Control
Rotate
Direction
