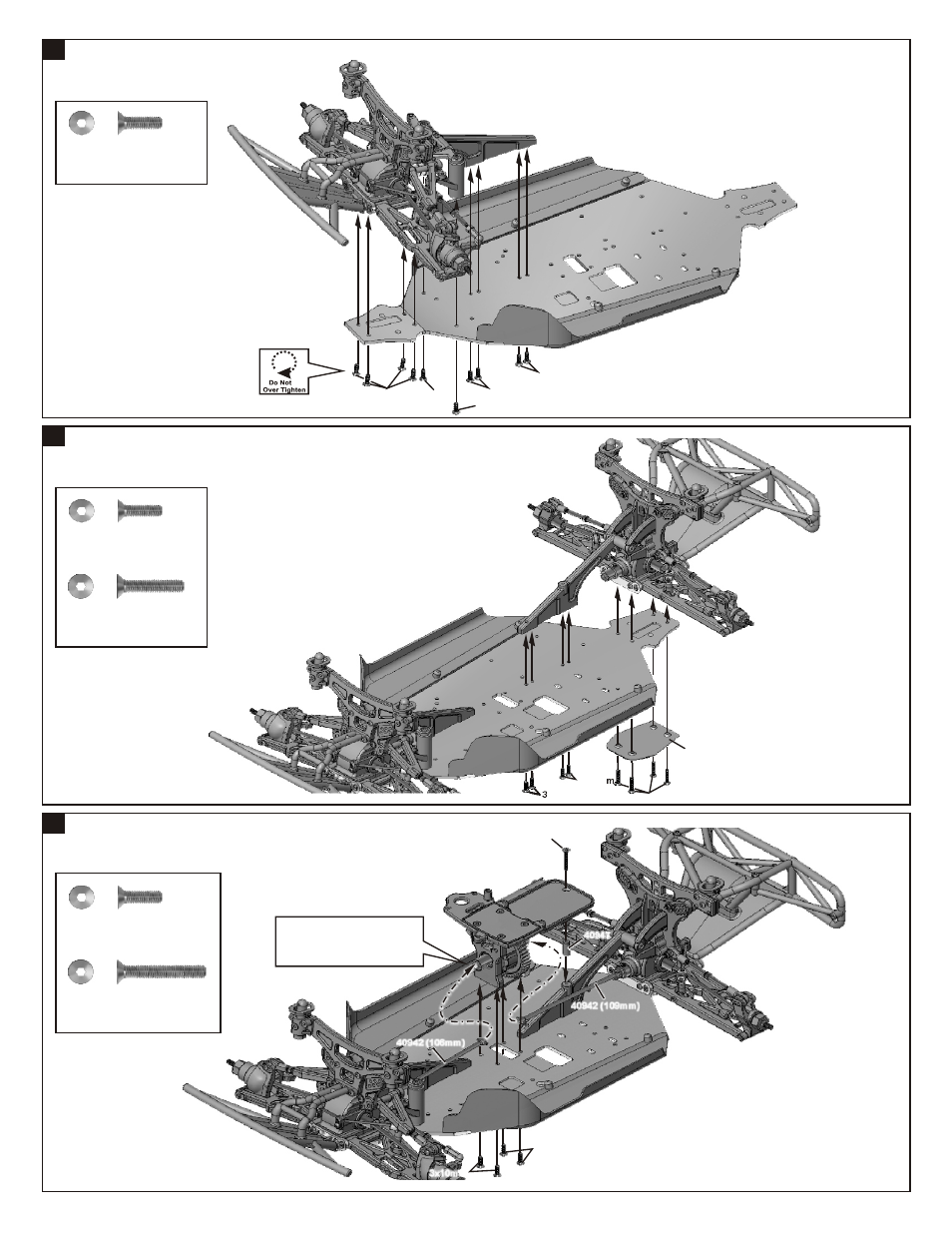

ASSEMBLY OF THE FRONT GEAR CASE ONTO CHASSIS

ASSEMBLY OF THE REAR GEAR CASE ONTO CHASSIS

13

94019
3x10mm
Flat Head Hex Screw

.....x4

94019
3x10mm
Flat Head Hex Screw

.....x10

39

ASSEMBLY OF THE CENTER DIFF. ONTO CHASSI

94021
3x15mm
Flat Head Hex Screw

.....x4

3x10mm

3x10mm

3x15mm

3x10mm

3x25mm

94019
3x10mm
Flat Head Hex Screw

.....x4

94023
3x20mm
Flat Head Hex Screw

.....x1

40947

*Insert the drive shaft into
the cap joint before assembly
center diff. onto chassis.

3x10mm

40942 (109mm)

40942 (106mm)

40943

3x10mm

3x10mm

3x10mm

3x10mm

3x10mm
