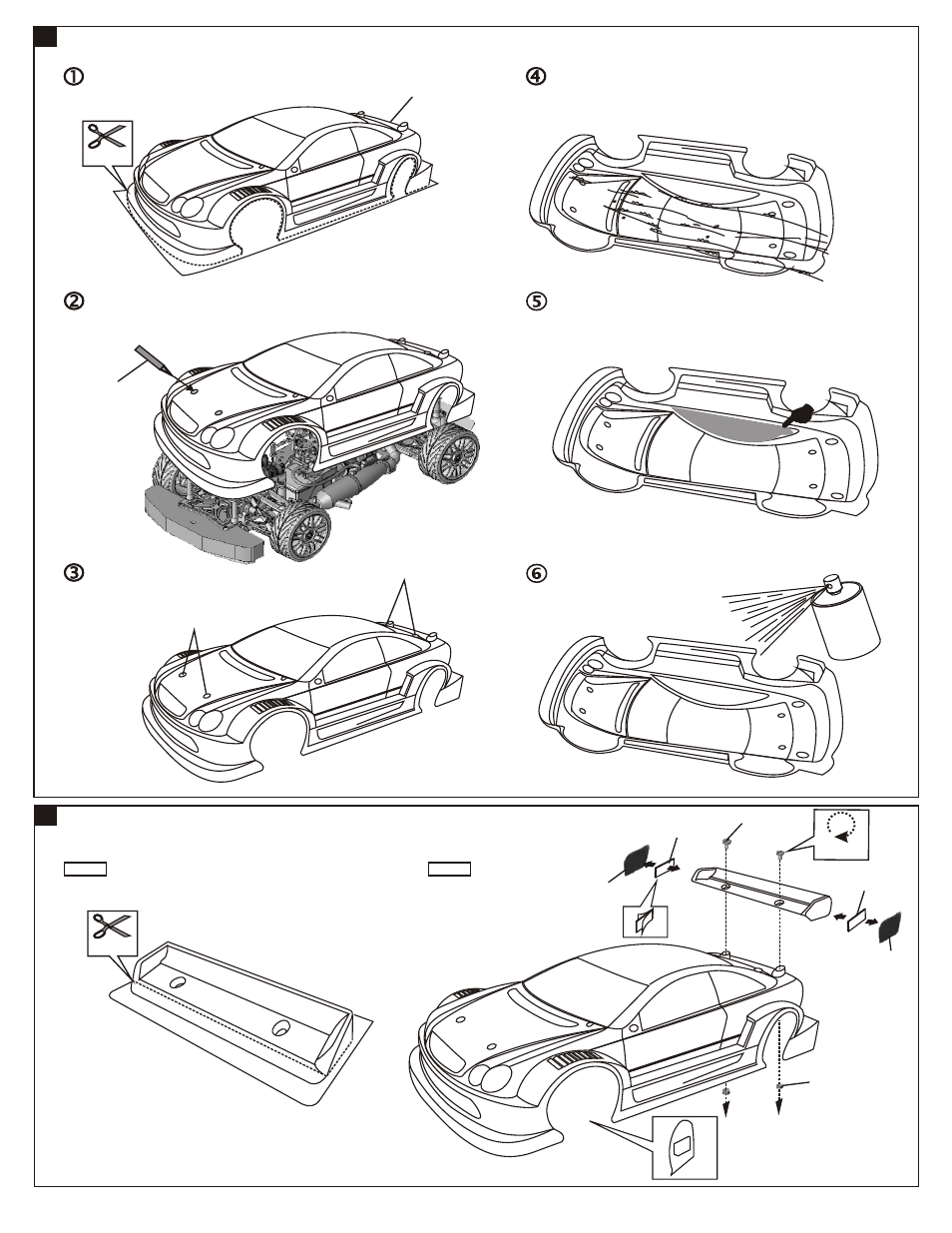

ASSEMBLY OF THE ONTO FRONT KNUCKLE AND REAR HUB

ASSEMBLY OF THE BOOY AND PAINTNG.

Spray Paint

Paint the body with
polycarbonate spray paints.

Before cutting and making holes on the body,
put the unpainted body on the chassis
to confirm the mounting position and
location for holes and cutouts.

Mask the windows from
the inside with masking tape.

Making two holes on the front and
two holes on the rear for body posts.

Step 1

Step 2

9mm

Nylon Screw

Do Not
Over Tighten

Take off the doubleside
paper before assembly.

Side Plate

Doubleside
Tape

9mm

Nylon Nut

Cut Out

Body Reamer
(Not included.)

31141
Body(Stock)

Use a neutral detergent to
remove any dirt and oil.

Cut out the body as shown.
