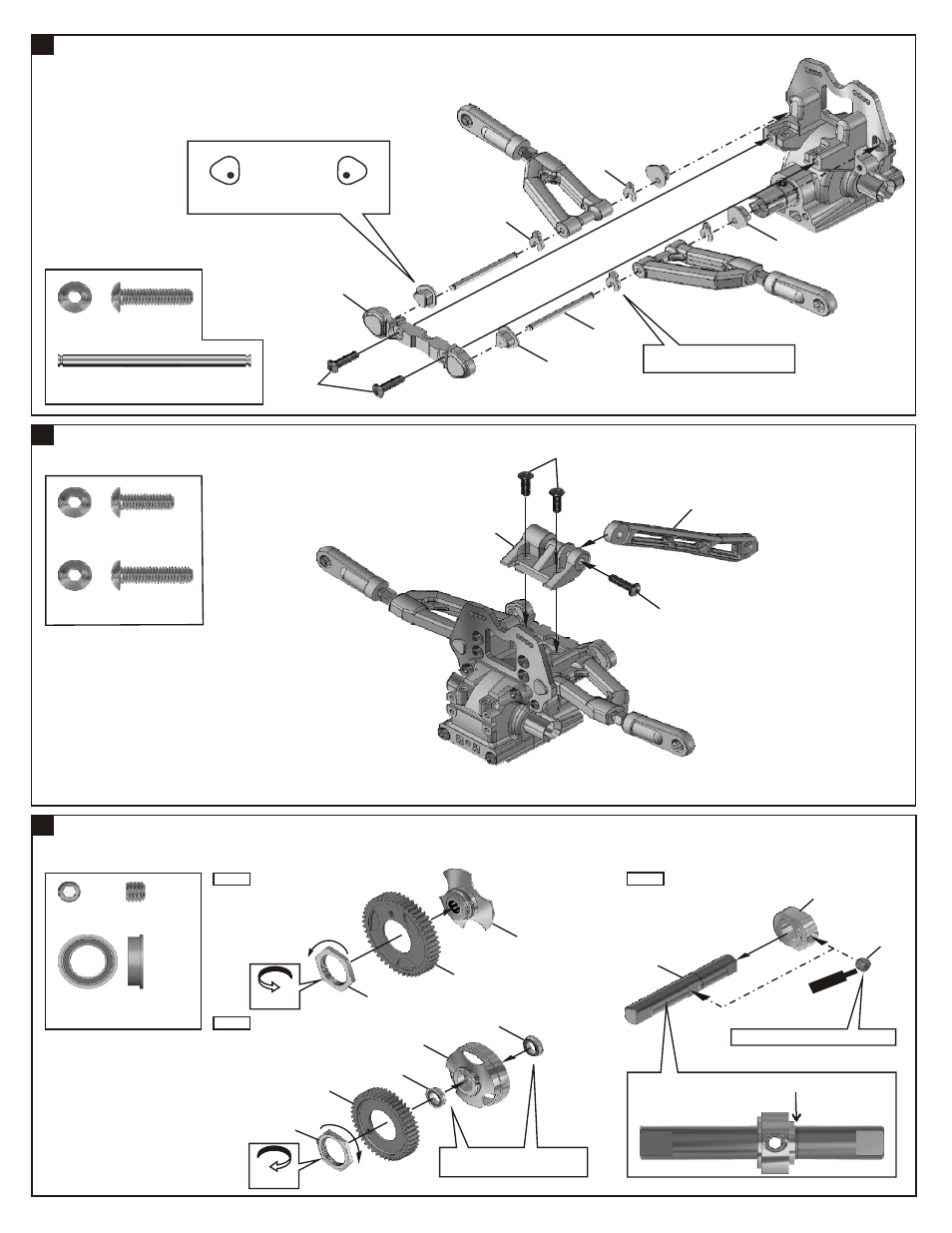

ASSEMBLY OF THE REAR BRACE

ASSEMBLY OF THE REAR UPPER ARMS

40716(2mm)

40716(1mm)

40546

*Insert the caster angle adjuster
onto arm shaft.

40719

4x16mm

4x12mm

40539

.....x2

94011
4x16mm
Hex Screw

.....x2

40546
3x42.7mm
Arm Shaft

*Set the left and right hand side upper arm
adjuster in the same direction.

Left

Right

.....x1

94011
4x16mm
Hex Screw

.....x2

94010
4x12mm
Hex Screw

ASSEMBLY OF THE TWO SPEED GEARS

40539

4x16mm

Step 1

35225
1st Spur Gear
Holder (One Way)

35248
1st Spur Gear
(48T)

35228

35230

40112

35235

5x5mm

.....x2

.....x1

94036
5x5mm
Set Screw

35230
8x12mm
Flange Bearing

35219

Clockwise

35244
2nd Spur Gear
(44T)

35234
2nd Spur Gear
Holder

*Put the clutch shoe carrier to the edge of the groove on
the shaft.

Anti Clockwise

Step 2

Step 3

35230

Rotate
Direction

rew

Rotate
Direction

*Push the flange ball bearing
into clutch bell.

*Place the set screw in the "D" cut.
