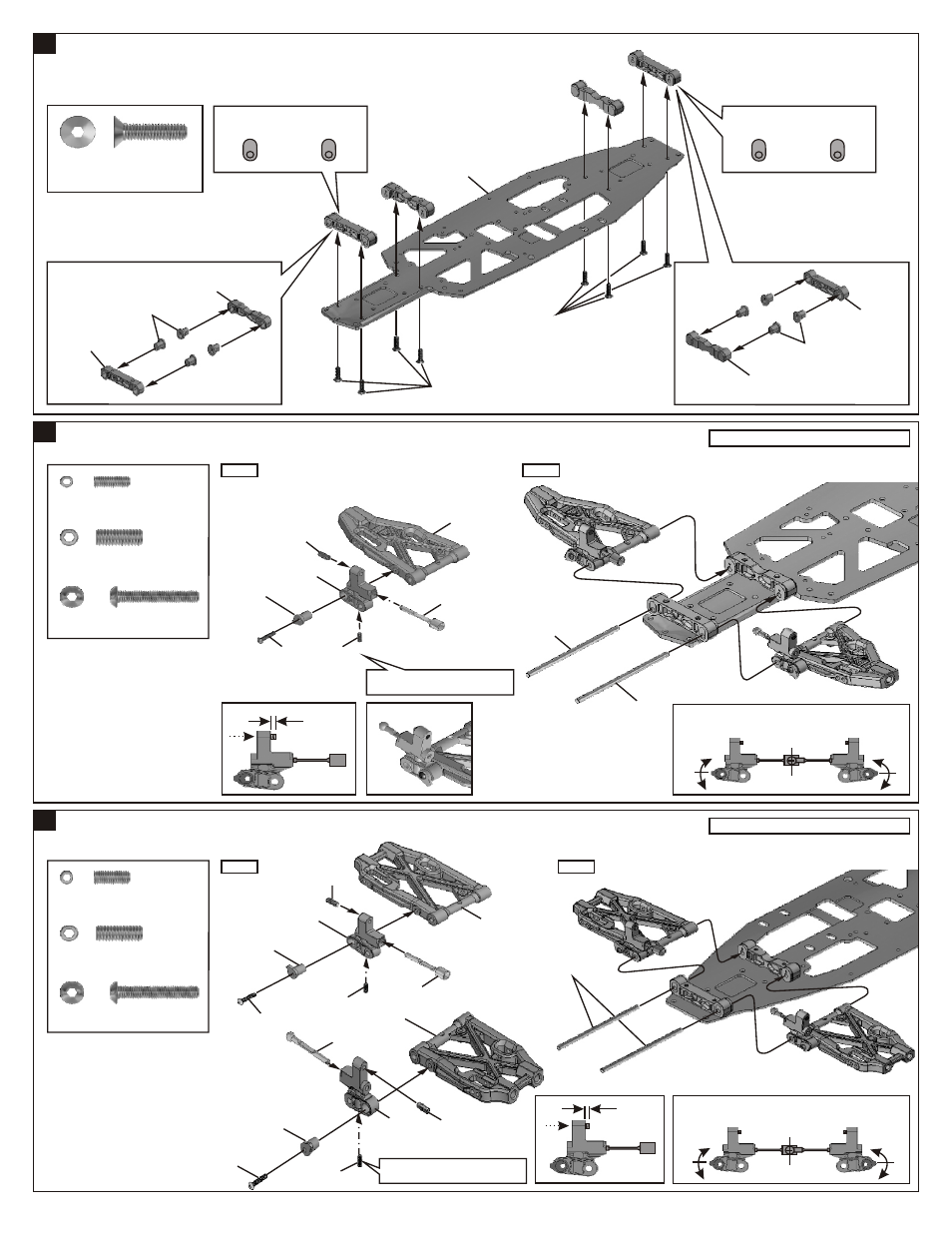

Page 14

Step 1

Step 2

ASSEMBLY OF THE REAR LOWER ARMS

40711

4x10mm

3x18mm

3x8mm

40717

40719

31308

40719

4x10mm

3x18mm

40719

3x8mm

40717

31308

40719

Center

*Keep stabilizer ball in the center. Turn stabilizer
adjuster to adjust the stabilizer to the same angle.

Adjuster

2mm

*A 3x8mm set screw is use for
thighten or loose stabilizer.

.....x2

94035
3x8mm
Set Screw

.....x2

36870
4x10mm
Set Screw

.....x2

94006
3x18mm
Hex Screw

Step 1

Step 2

ASSEMBLY OF THE FRONT LOWER ARMS

40711

4x10mm

3x18mm

3x8mm

40717

40719

31308

40719

2mm

*A 3x8mm set screw is use for
thighten or loose stabilizer.

(Left Side)

Center

*Keep stabilizer ball in the center. Turn stabilizer
adjuster to adjust the stabilizer to the same angle.

Adjuster

.....x2

3x8mm
Set Screw

.....x2

4x10mm
Set Screw

.....x2

3x18mm
Hex Screw

ASSEMBLY OF THE ARM HOLDER ONTO CHASSIS

40719
(Front/Front)

40719

4x16mm

40719

4x16mm

40719
(Front/Rear)

40719
(Rear/Front)

40719
(Rear/Rear)

*set the arm holder adjuster to
the same direction.

(Type A)

.....x8

94027
4x16mm
Flat Head
Hex Screw

*set the arm holder adjuster to
the same direction.

(Type A)

40748

Assembly for both right and left side.
