Page 17

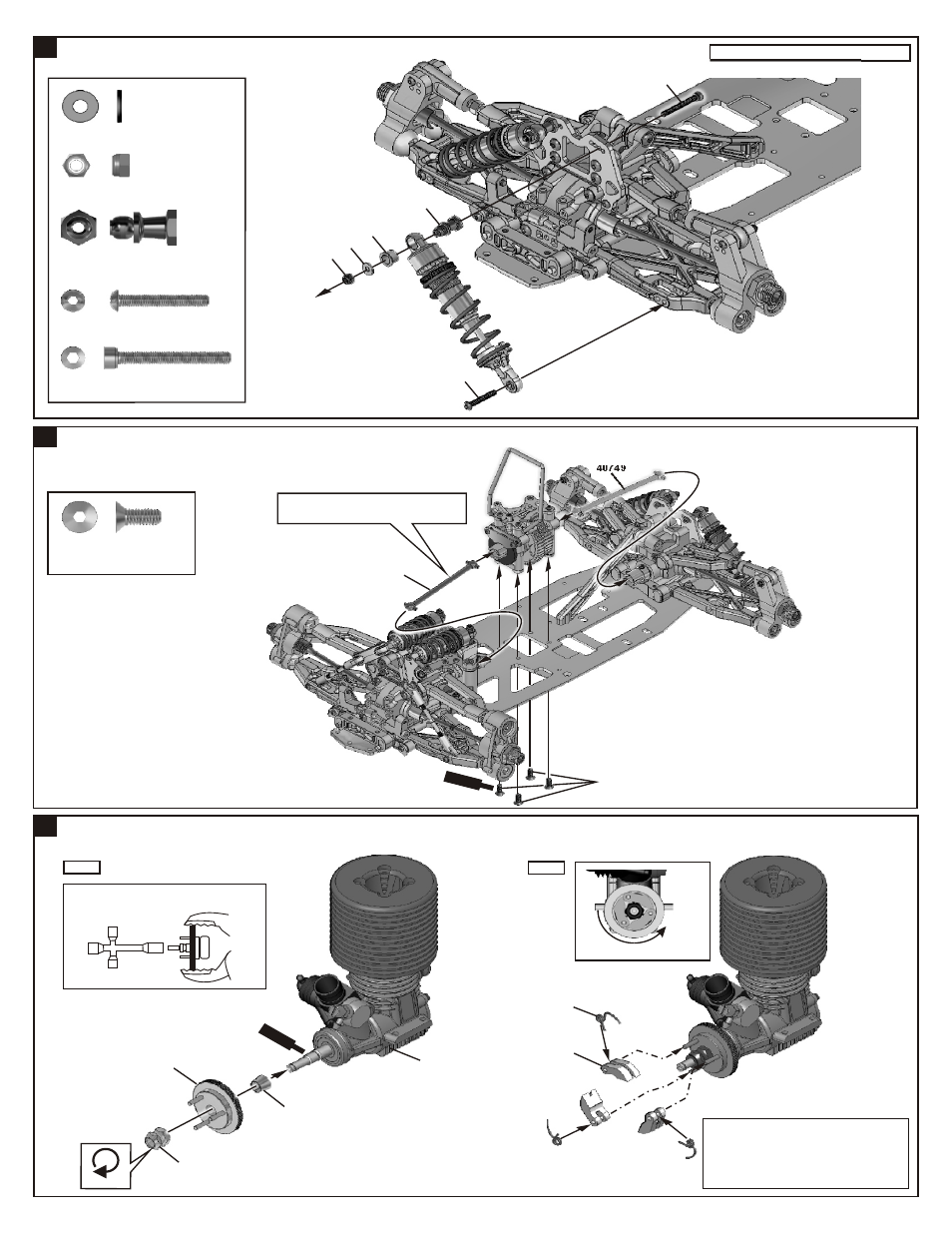

Step 1

ASSEMBLY OF THE CLUTCH

10098

40573

Engine rotation direction.

*Fit the flywheel using a pair of the plier
and cross wrench.

10101

Step 2

SG Type
Crank Shaft Engine

10010

*Place the clutch shoes with the clutch
springs over the 3 pins of the flywheel.
*Using a phillips screw driver or needle
nose pliers and bend the small end lf
the clutch spring behind the pilot shaft
10091 or 10098 than press down.

10330

Tighten

ASSEMBLY OF THE TWO SPEED TRANSMISSION ONTO THE CHASSIS

4x10mm
Flat Head
Hex Screw

.....x4

* Insert drive shaft into cap joint before
assembly two speed onto chassis.

4x10mm

40749

S r w

c e

C me

40749

ASSEMBLY OF THE REAR SHOCK ABSORBER

.....x2

3x20mm
Hex Screw

.....x2

3x25mm
Cap Screw

.....x2

40531
Shock Ball
End Post

3x8mm
Washer

.....x2

3x20mm

40531

40643

3x8mm

3mm

3x25mm

.....x2

3mm
Nylon Nut

Assembly for both right and left side.
