SSE 22 CONNECTION
When first connecting the SSE 22 to other components,
leave the power supply for last. This gives you a chance to
correct mistakes before damaging fragile speakers, ears and
nerves. The SSE 22 locates between the preamplifier/
processor and the amplifier.
INPUTS AND OUTPUTS
Connections are actively unbalanced and fitted with RCA
phono pin jacks. Use good quality cables and keep lengths as
short as possible. Longer length require balanced lines, using
an adaptor such as a Rane BB 44X Balance Buddy.
SIGNAL LEVELS
The SSE 22 is designed for audio reference levels of
0 dBr (150 mV rms), and provides a minimum headroom of
34.5 dB above reference, making it virtually unclippable.
With all LEVEL controls located in their 0 dB detented
positions, the SSE 22 operates with unity gain from Input to
Output. No additional gain settings are necessary. Use the
SSE 22 only for specific equalization, not level control.

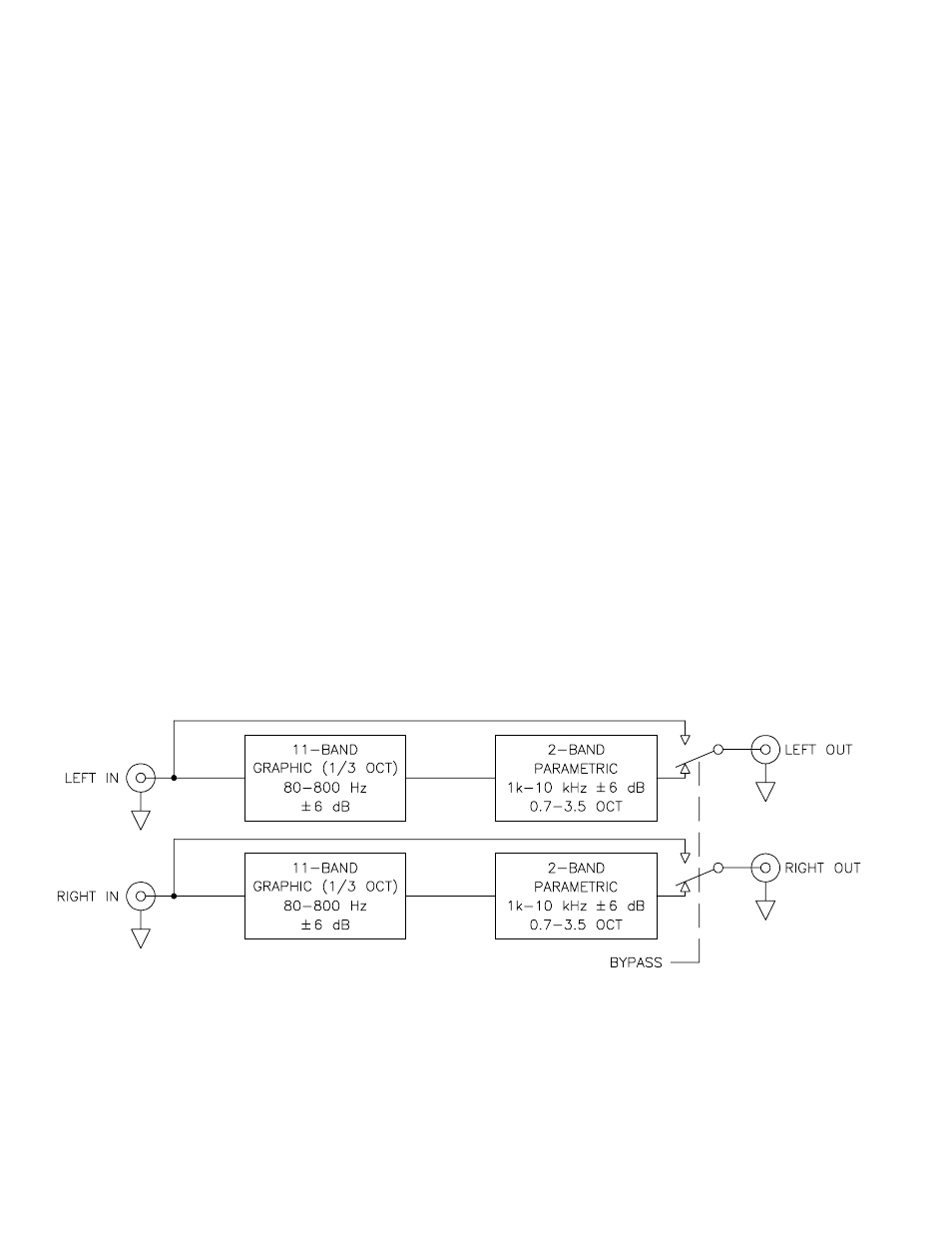

SSE 22 BLOCK DIAGRAM
