Rane SRM 66 - Manual (Page 6)

Manual-6
Group attenuation levels
page. This has the same
action as controlling from
optional SR 1 Remote(s).
Group Lvls G1 G2 G3 G4 G5 G6
Zero All -20 -10 0 Off 0 -6
Groups G1 through G6 may be attenuated
0 dB to -29 dB or set to Off.
When Zero All is selected, pressing EXE
sets all Group attenutation levels to 0 dB.

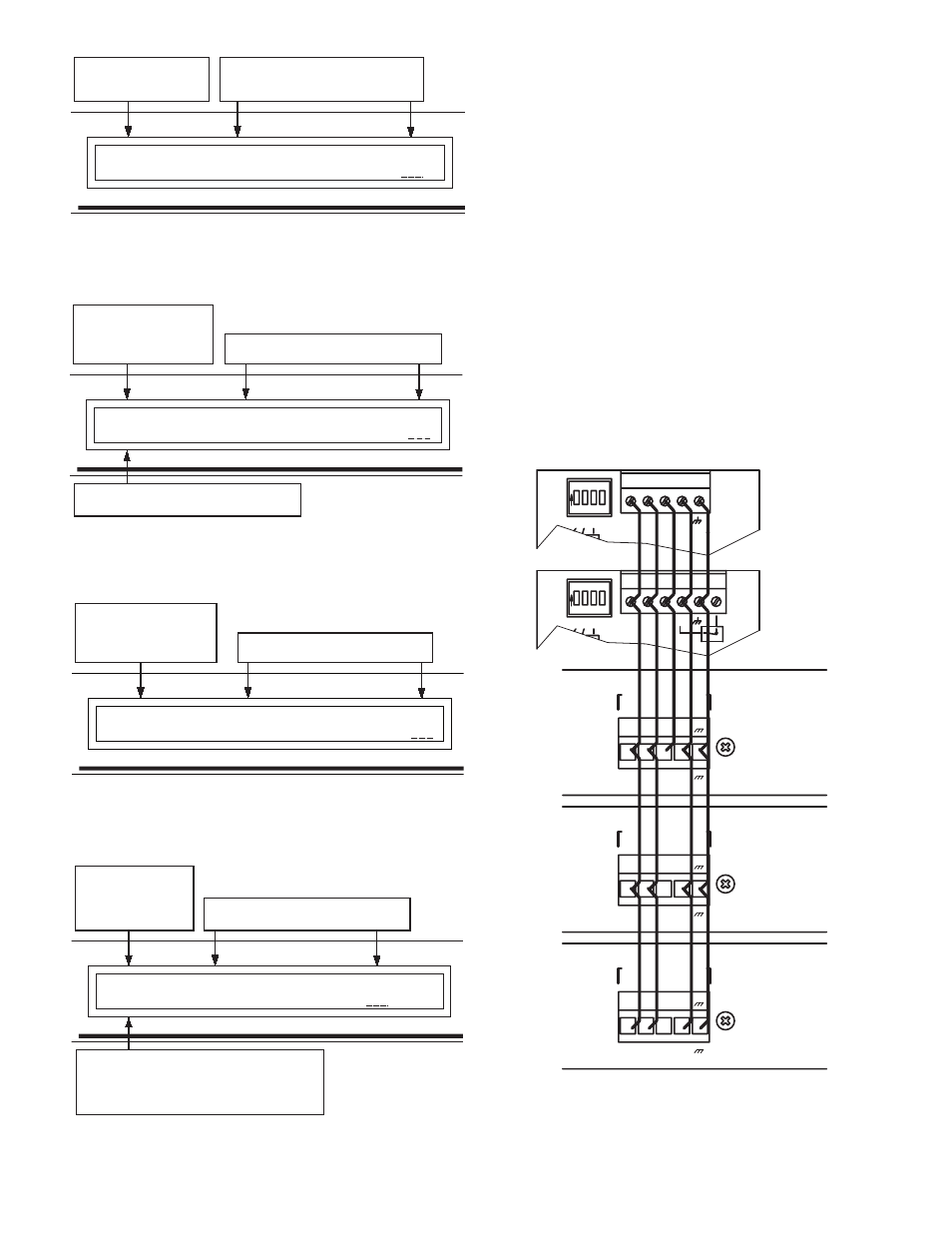

Figure 3. Group Levels Edit Page
Output to Group Page,
where Outputs are
assigned to 1 of 6 Groups.
Out->Grp Out1 Out2 Out3 Out4 Out5 Out6
Copy G1 Off G6 G4 G3 G2
Channels Out1 through Out6 may be
assigned to 1 of 6 Groups or set to Off.
Figure 2. Output to Group Edit Page
Remote to Group
Page, where Remotes
are assigned to 1 of 6
Groups.
Rmt->Grp R1 R2 R3 R4 R5 R6
Copy G1 Off G6 G4 G3 G2
Remotes R1 through R6 may be assigned
to 1 of 6 Groups or set to Off.
Copy parameters of current page to clipboard.
Paste contents of clipboard to current page.
Recall [n] loads current page parameters from
Memory[n], where [n]=Memory number.
Figure 5. Remote to Group Assign Page
Remote Interface Port (RIP)
Modes
There are three Remote Interface Port modes. The default
RIP mode allows communication to SR 1L Remotes.
When using the DSC 1 accessory, the RIP parameter must
be set to DSC. (See DSC 1 & SRM Exchange Software.)
When using the SRM 66’s Master Slave feature, RIP must be
set to SLAVE. A single SR 1L can control Output Groups across
multiple SRM 66’s. For information on Master/Slave functional-
ity, see the RaneNote “Advanced Applications of the Ingenious
SRM 66 and SR 1L.”
SR 1L Remotes
The SRM 66 provides a Remote Interface Port which sup-
ports up to seven optional SR 1L “Smart” Remote controls. The
SR 1L has 31 LEDs to indicate the Group’s current attenuation
setting of 0 to 29 dB in 1 dB steps, the last step is OFF. It is
designed to mount in a standard U.S. electrical box with a mini-
mum depth of 2¼ inches, and can be covered with a standard
Decora ® plate cover. (Decora is a registered trademark of Levi-
ton). See the SR 1L Data Sheet for hookup and operation.
Group to Master Remote
page allows any group to
be assigned to the Master
Remote.
Grp-> Mstr Rmt G1 G2 G3 G4 G5 G6
Copy On Off Off Off On Off
Assigns Groups G1 through G6 to
Master Remote(s).
Figure 4. Group to Master Remote Assign Page
N
O
4 3 2 1
N
O
4 3 2 1
REMOTE
REMOTE
MASTER
SLAVE
SLAVE
Do not connect V+ between Master and Slave units.
SR 1L
SR 1L
SRM 66
SRM 66
SRM 66
+V B A -V
-V +V B A
REMOTE INTERFACE
PORT (RIP)
-V A B +V
A B +V -V
REMOTE INTERFACE
PORT (RIP)
-V A B +V
A B +V -V
REMOTE INTERFACE
PORT (RIP)
ADDRESS
4 R 2 1
T
+V A B -V ENCODER
LOCK
4
ADDRESS
2 1 R
-V A B +V
T
Figure 6. Multiple SR 1L Remote and SRM 66 wiring
