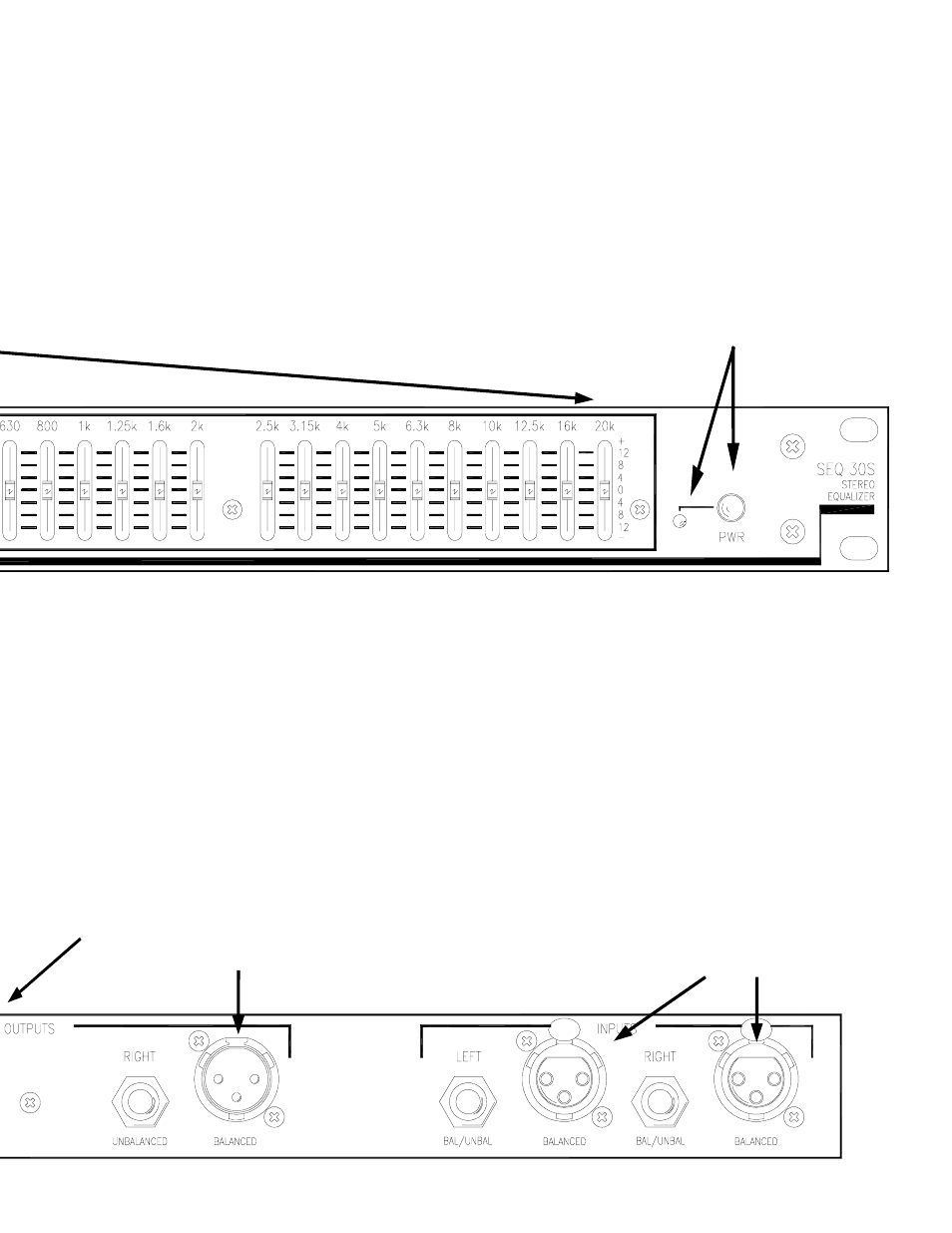

POWER switch and LED
Your basic, straightforward power
switch. When the yellow LED is lit, the
SEQ 30S is ready to go.
Cable Wiring
In agreement with IEC and AES/
ANSI standards, XLR wiring conven-
tion is pin 2 Positive (hot), pin 3
Negative (cold), and
pin 1 Signal ground (for unbalanced
use). Pin 1 and the connector case or
shell are tied to chassis ground. LEFT & RIGHT OUTPUTS
Use either the Balanced XLR or the
Unbalanced ¼" TS jacks. Using both
types of Outputs are permissible to
drive two devices, such as an amplifier
and a recorder.
LEFT & RIGHT INPUTS
Choose between the balanced XLR
or the balanced/unbalanced ¼" TRS
jacks, but only use one. Inserting a ¼"
TS jack will work—however—always
use balanced lines especially when
connecting cables over 10 feet in length.
Consult the Sound System Interconnec-
tion RaneNote located later in this
booklet.
