Rane SEQ 30S (2001 version) - Manual (Page 2)

Manual-2

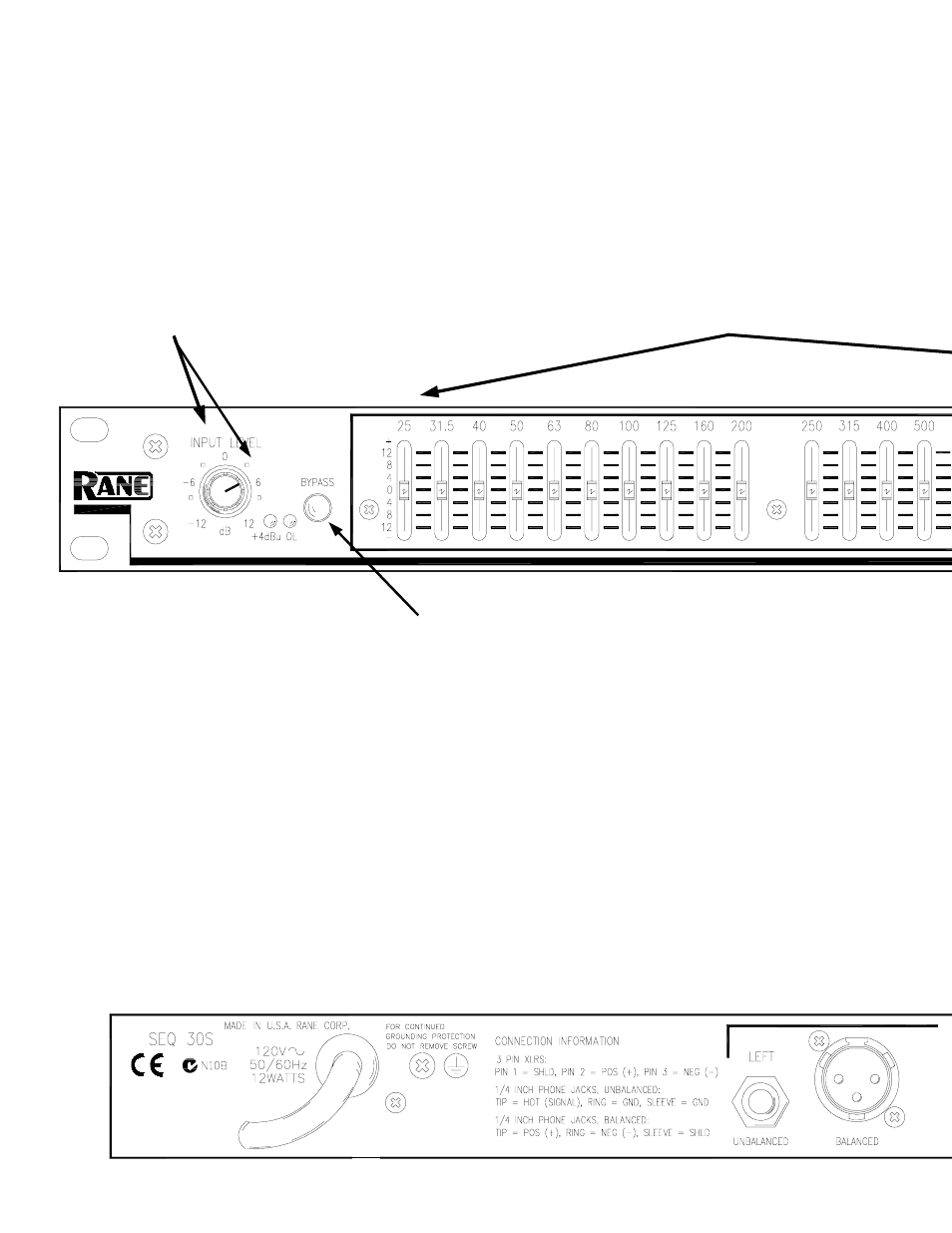

EQ BYPASS switch
When pressed to BYPASS, the filter
sliders have no effect. Since actual unity
gain depends on varying slider settings,
use the BYPASS switch to determine
the unity gain position of the INPUT
LEVEL control by comparing ACTIVE
and BYPASS volumes.
Filter level slide controls
Each of these sliders control the
output level of both channels of the 30
bandpass filters. Center position is
grounded for guaranteed flat response.
INPUT LEVEL control and indicators
This controls the overall level. 0 dB gain is reached at the center detent with all
sliders centered at their 0 dB detents. Set the INPUT LEVEL to give equal volumes
with the EQ switched to ACTIVE or BYPASS, after setting the sliders (see EQ
BYPASS switch below). Apply sufficient signal to the input to occasionally light
the +4 dBu indicator. Flashing of the OL (overload) LED during peaks can be
avoided by turning the INPUT LEVEL or boosted Filters down.
