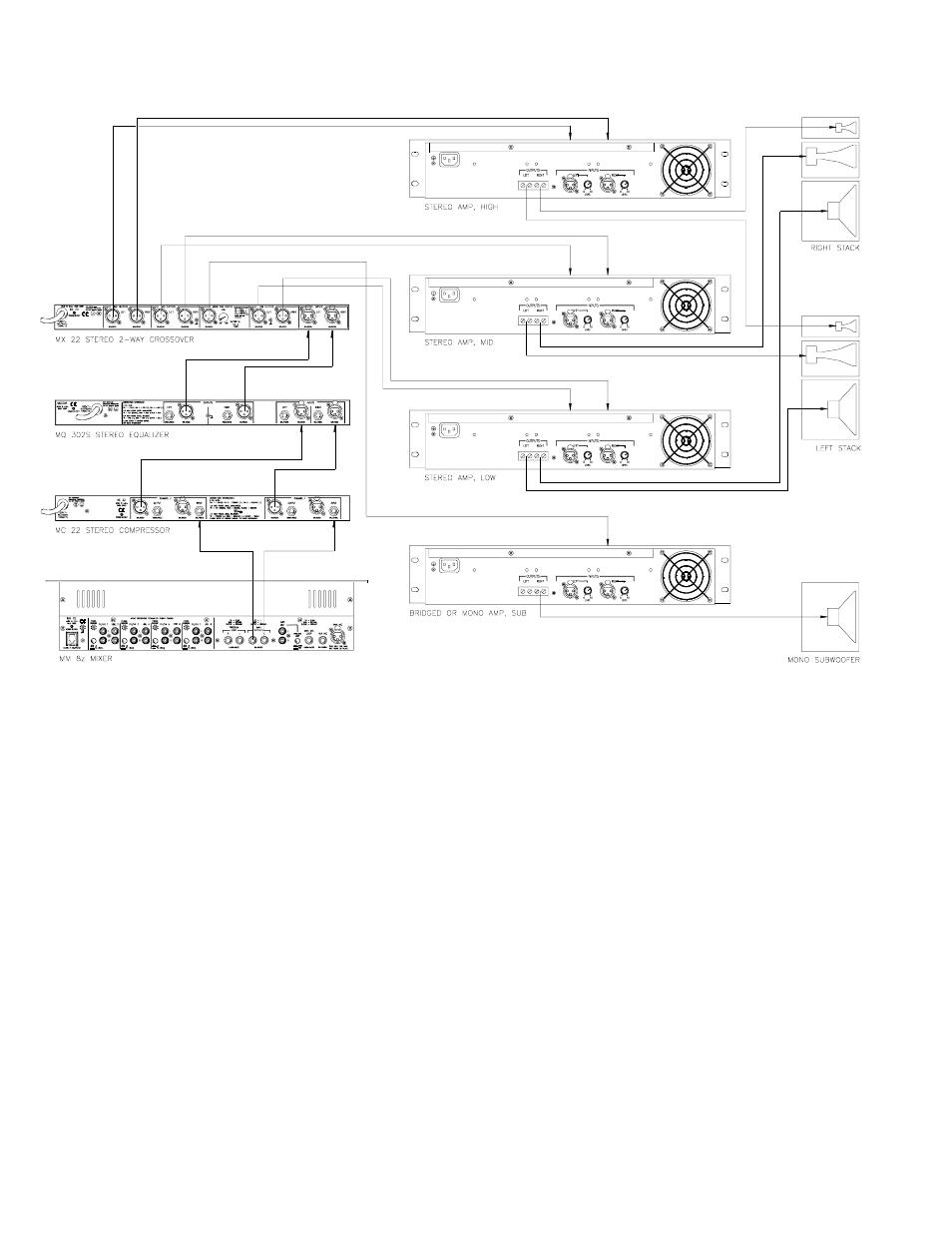

APPLICATION — ACTIVE 3-WAY WITH (or without) MONO SUB
Connect as shown for a mono subwoofer. Set the 100 Hz FILTER
switch to the IN position. If a mono subwoofer is not used, the
FILTER switch setting will not matter, since all low frequencies will
be sent to the LEFT and RIGHT LOW OUTPUTS.
The front panel LOW/MID FREQUENCY control determines the
frequency division between the low and mid drivers, while only low
frequencies below 100 Hz are sent to the mono subwoofer.
