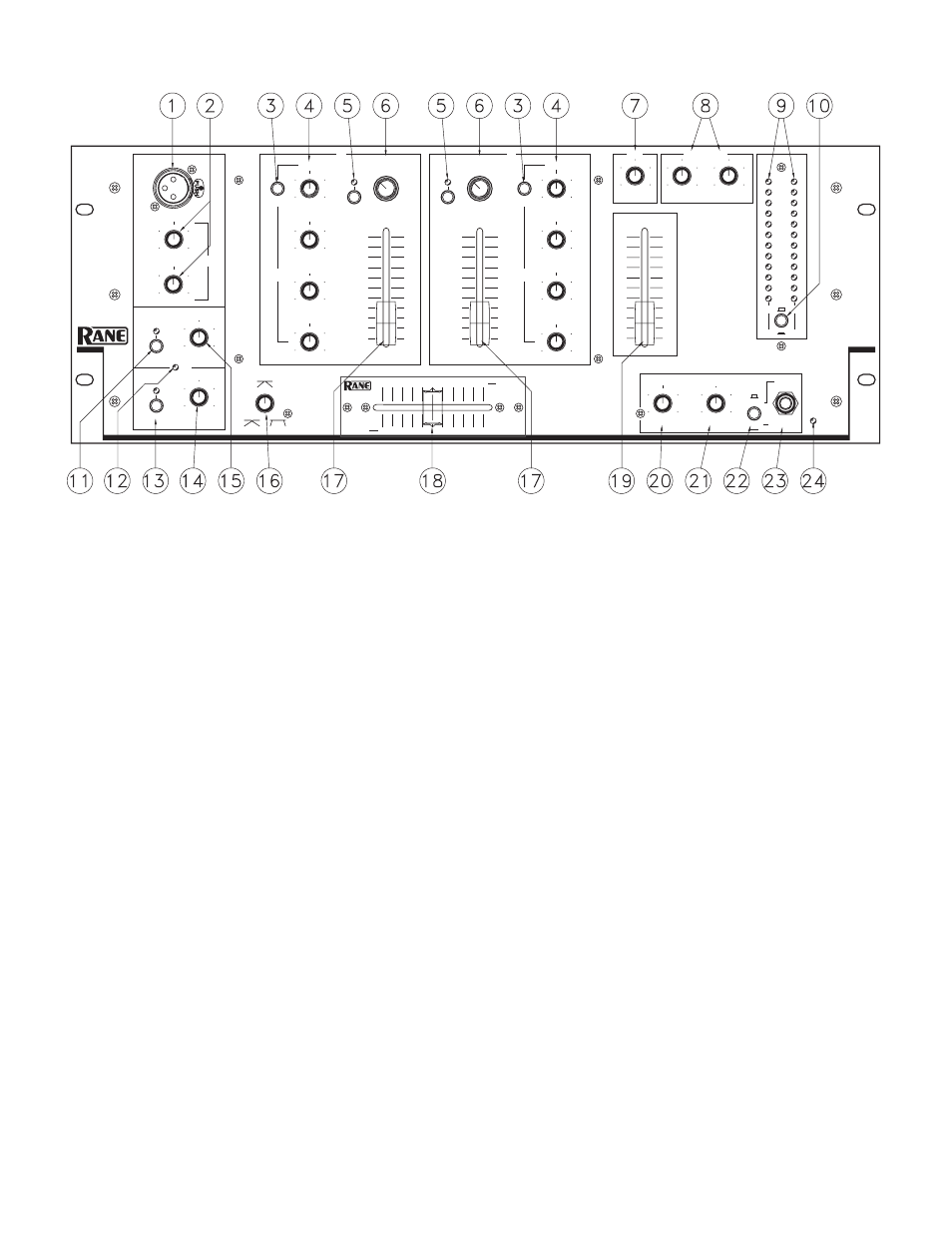

FRONT PANEL DESCRIPTION

1

Front panel MAIN MIC input:

Use this XLR connector for connecting a balanced microphone of any impedance.

2

MIC EQ controls:

Adjust the frequency contour of both Microphone Inputs. They have no effect on any other Inputs. Position-

ing these controls to the “12 o'clock” position turns the Mic EQ off.

3

CHANNEL A & B EQ ENGAGE switches:

Engaging this switch enables the Channel Equalizer to function. In the out posi-

tion, the Equalizer is bypassed.

4

CHANNEL A & B EQ level controls:

These four rotary controls, when enabled with the EQ ENGAGE switch, are used to

contour the frequency response of the selected Input Channel. This is not designed to be the only Equalizer in the system, this is

intended to provide EQ between varying program materials. We recommend an external graphic equalizer for best overall system

sound, connected between the MASTER OUTPUTS and the amplifier.

5

CUE A or CUE B switches:

Engaging any single or combination of CUE pushbuttons sends any program present at the respec-

tive Channel's INPUT SELECT selector to the Headphone and meter cue sections. The yellow LEDs adjacent to each CUE

select button illuminate when the switch is engaged. Not recommended for beat sync lights. See Operating Instructions on page

Manual-6.

6

INPUT SELECT A & B:

These four position rotary switches provide Input selection between the various phono/line inputs for

their respective mixing Channels.

7

AUX LEVEL control:

Adjusts the input Level from the AUX LINE IN jacks.

8

ZONE LEVEL controls:

Adjust the output Levels of ZONE 1 and ZONE 2.

9

PEAK dBu CUE/PROGRAM meter:

Can switch between two display modes. See 0 below.

0

Meter CUE/PROGRAM switch:

In the out position, the meter indicates Master Program output level in PEAK dBu in LEFT

and RIGHT stereo. In the in position, mono CUE level is displayed on the LEFT side and mono Program level is displayed on

the RIGHT side.

q

REMOTE MIC ENGAGE switch:

When pressed, ENGAGES the REMOTE MIC Input. The adjacent red LED flashes when-

ever the switch is pressed in, signalling that the Main Mic is on.
