OPERATORS MANUAL MP 22z
CLUB MIXER
QUICK START
If you won’t read the manual (we know how it is) here are a few basic “plug it in and get signal thru it” facts. The MP 22z has all
unbalanced RCA connectors, except for the XLR & ¼" Mic Inputs, ¼" Mic Loop, and the balanced ¼" TRS Master Outputs. Be
sure your amplifier is off while making connections. On the front panel, set all controls to the middle of their travel. Set all pushbut-
tons to their out position, slide the MASTER LEVEL all the way down. Turn the INPUT SELECT switch for Channel A or B to an
Input with material playing. Turn your amplifier on. Now slowly turn up the MASTER LEVEL and see the material on the meters
and hear it from the MASTER OUTPUT jacks.
There are two places where you can get lost. If you bring a phono signal into PH/LN 1 or 2 be sure to keep the LINE/PHONO
switch set to PHONO; likewise when using a CD player be sure this switch is set to LINE. If you plug into the MASTER LOOP
RETURN the signal path thru the unit is broken, since these are switching jacks. They are looking for the return from an outside
device that got its signal from the MASTER LOOP SEND, so only use these when you can make a complete loop.
With the CROSSFADER CONTOUR set to full counter-clockwise position, it operates as a typical constant-power crossfader.
Set to clockwise position, the crossfader has the very steep slope as indicated in Figure 1 to the right. Now that was a pretty quick
start, right?
WEAR PART
This product contains the following wear part subject to the
ninety (90) day warranty period described on page Warranty-1:
(1) Active Crossfader Assembly F 60.
Never connect anything except a Rane RS 1 to the thing
that looks like a red telephone jack on the rear of the
MP 22z.
This is an AC supply and requires some special atten-
tion if you do not have an operational power supply exactly like
the one that came with your unit. Consult the Rane factory for a
replacement or substitution.

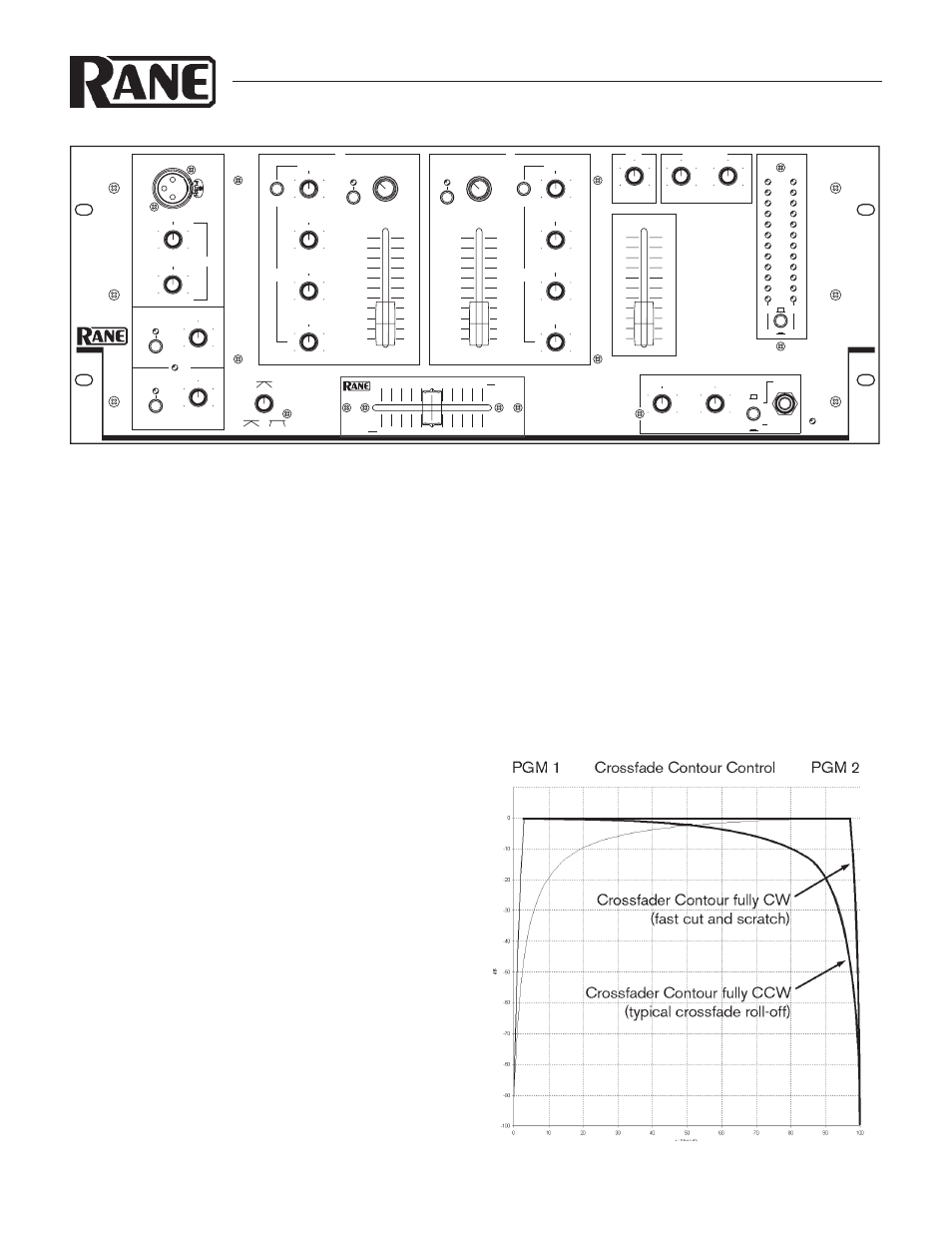

Figure 1. Crossfader Contour control
CUE LEFT
CUE PGM
PGM RIGHT MONO
+8
+5
+1
+3
PEAK dBu
-3
-1
-7
-5
-10
-15
-20
LEFT RIGHT
0
CUE/PGM
6 4
10
8
0
8 2
ZONE 2
6 4 6
10
2
0
ZONE 1
8
10
10
8
0dB
2
4
4
2
0 4
2
4
CUT EQ ENGAGE
2
BOOST
10
8
4
6
2
4
2
4
4
CUT
10
0dB
2
4
CUT
6
2
4
BOOST
BOOST
2 2
LEVEL
STEREO 8
6 4
10
2
0
0
2
PGM
6
2
CUE
6
LEVEL PAN
0
2
4
2
4
CUT
0
BOOST
LINE 5 LINE 4
PH/LN2
LINE 3 LINE 4
LINE 5
10
8
6
2
4
10
0dB
6
2
4
4
CUT BOOST
2 2
4
EQ ENGAGE
4
CUT BOOST
2
4
2
CUT BOOST
4
4
2 2
6
2
4
8
10
PH/LN1
TM
0
10 6 8
0
4 2 0
0 4 2 6 8 10
2
4
2
CUT BOOST
4
0
4
2 2
BOOST
4
BOOST
4
4
CUT
CUT
2 2
8
MAX
2
MIN
OL
6
MAX
8
4
MIN
2
ENGAGE
ENGAGE
4 6
LINE 6
ACTIVE CROSSFADER
PWR
MIXER
AUX OUTPUT LEVELS B
HI-MID
TREBLE
MID
BASS
EQ B
MASTER LEVEL
HEADPHONE CONTROL B
CUE B
INPUT SELECT
A
TREBLE
CUE A
HI-MID
MID
BASS
EQ A
CROSSFADER
CONTOUR
A
MAIN MIC
TREBLE
BASS
MIC EQ
REMOTE MIC
MAIN MIC
INPUT SELECT
MP 22z
F 60
