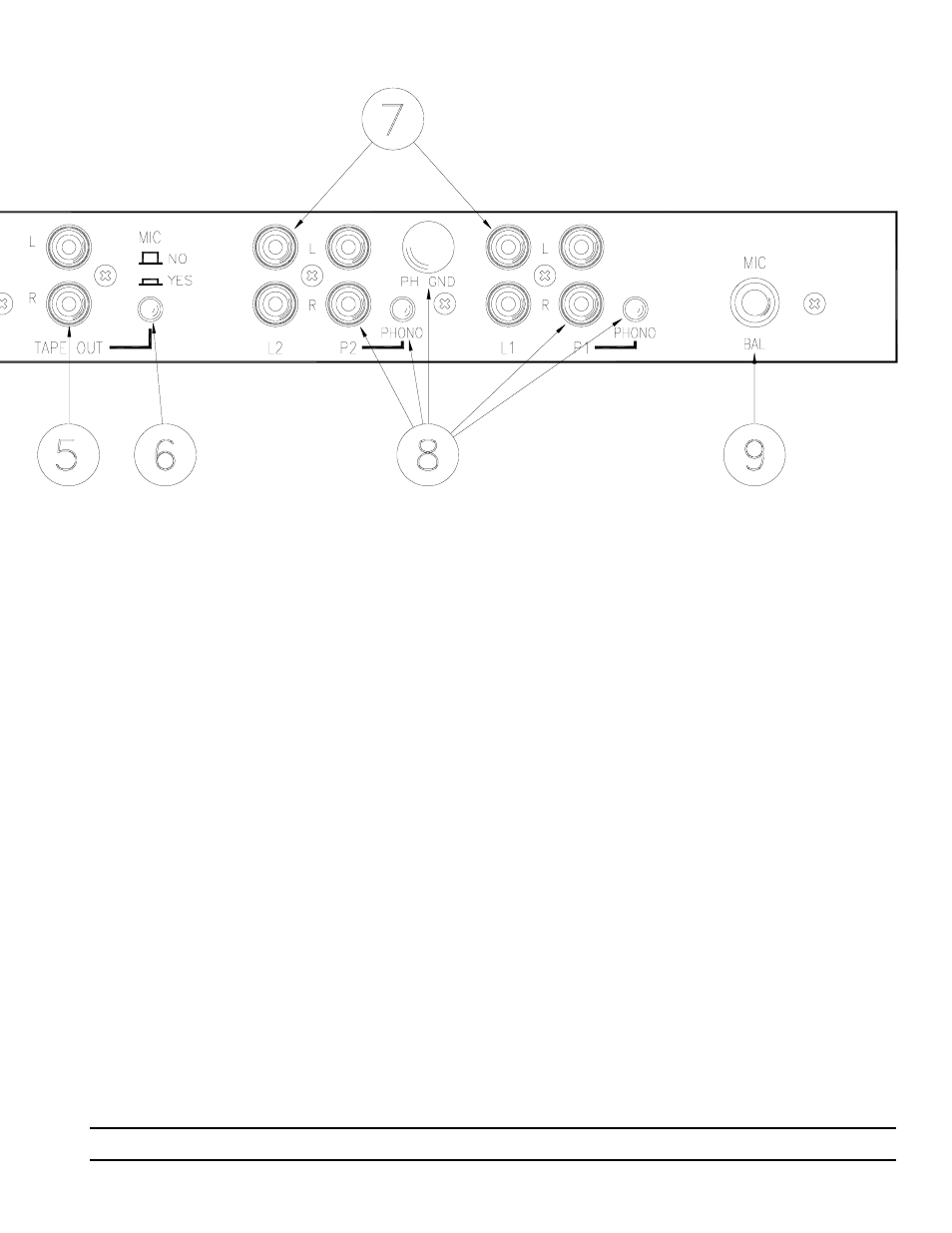

TAPE OUTPUT: These line level RCA Outputs are intended for use with a tape recorder, but not necessarily restricted to

that purpose. You may be creative. These Outputs are not affected by the HOUSE LEVEL or AUX LEVEL controls.

MIC to TAPE OUT switch: In the YES position the Mic signal along with the Program Inputs are routed to the TAPE

OUT. In the NO position only the Program Inputs appear at the TAPE OUTPUT.

LINE 1 & 2 INPUTS: connect to stereo sources such as CD players or any line-level device. L1 and L2 may be assigned to

Program A or Program B via the front panel INPUT switches.

PHONO/LINE 1 & 2 INPUTS: These stereo Inputs are switchable from a PHONO (RIAA) stage for magnetic cartridges

(PHONO switch in) to a LINE level Input suitable for any line level device such as a CD player (PHONO switch out). The
Phono Ground screw connects those extra wires coming out of the turntables.

MIC INPUT: Accepts a ¼" balanced (TRS) or unbalanced (TS) microphone cable, controlled by the MIC LEVEL control

on the front panel.
