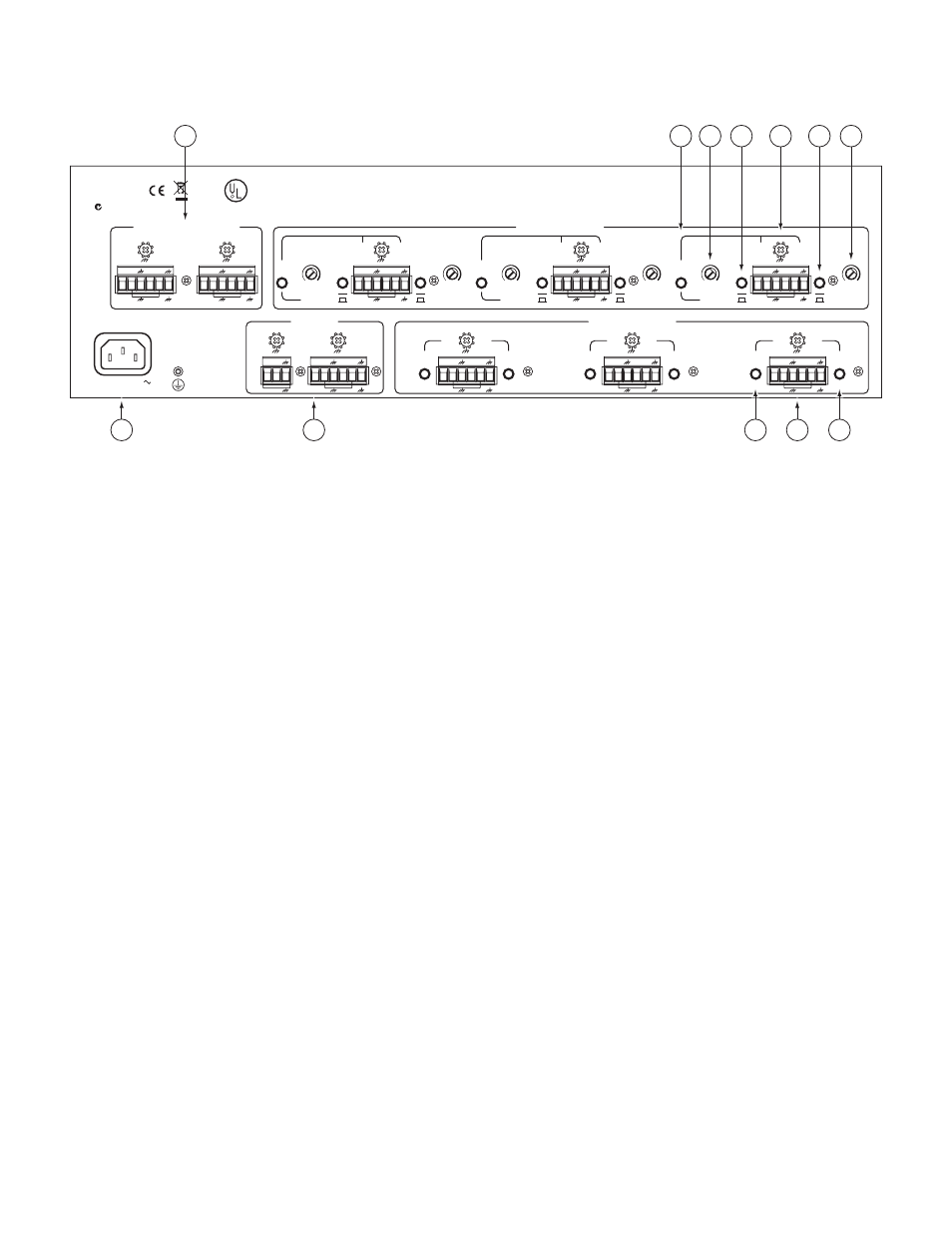

REAR PANEL DESCRIPTION
1 MIC/LINE INPUT TRIM controls 1-6 adjust the input gain of the Mic/Line Inputs. The gain range for Mic level is 12 to 60
dB. The gain range for Line level is -4 to 12 dB.
2 LINE/MIC INPUT buttons 1-6 switch the sensitivity and input impedance for either a microphone or line input. Mic level is
selected when the button is in the “out” position. Line level is selected when the button is in the “in” position.
3 MIC/LINE INPUT connectors 1-6 are balanced Euroblocks that connect either microphone or line signals.
4 PHANTOM POWER button applies 12 volt phantom power to each pair of Mic/Line Inputs, only when the LINE/MIC IN-
PUT button (2) is set to the MIC “out” position.
5 STEREO LINE INPUTS 7/8 and 9/10 are pairs of balanced Euroblock connectors, accommodating stereo or mono line level
signals.
6 PRE/post MIX LEVEL DIRECT OUTPUT buttons . When this switch is in the “in” position, the Direct Output signal is not
affected by the Input’s Level control. When this switch is in the “out” position, the Direct Output signal is affected by the Input’s
Level control.
7 DIRECT OUTPUTS are balanced Euroblocks that directly connect each Mic/Line Input signal to other audio devices as
needed. These Direct Outputs are post-Equalizer.
8 A, B and AUX OUTPUT connectors. One 6-post balanced Euroblock connects the A mix and the B mix to other audio devices
as needed. The other 3-post balanced Euroblock connects the AUX mix to other audio devices as needed.
9 The IEC appliance input jack is connected to AC mains using a line cord appropriate for your area. The high efficiency switching
power supply used in the MLM 103 operates at voltages from 85 VAC to 250 VAC, 50 or 60 Hz. To prevent accidental shutoff
during the president’s speech, there is no front panel power switch. When applying power to the system, remember to turn power
amplifiers on last.
PRE MIX
LEVEL PRE MIX
LEVEL
PRE MIX
LEVEL PRE MIX
LEVEL
PRE MIX
LEVEL PRE MIX
LEVEL
PHANTOM
POWER PHANTOM
POWER PHANTOM
POWER
TRIM
ACN 001 345 482
MADE IN U.S.A.
RANE CORP.
5 A B 6
9 7 5 10 8 6
MLM 103
3 1 4 2
3 1 4 2
AUX
OUTPUTS
STEREO LINE INPUTS
DIRECT OUTPUTS
MIC/LINE INPUTS
LISTED
COMMERCIAL
AUDIO
EQUIPMENT
24TJ R C US
AVIS
RISQUE DE CHOC ELECTRIQUE — NE PAS OUVRIR
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK DO
NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. DO
NOT REMOVE COVER. NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
+ – + – + – + – + – + – + – + – + – + –
LINE 0-12 dB
MIC 15-60 dB
TRIM
LINE 0-12 dB
MIC 15-60 dB
TRIM
LINE 0-12 dB
MIC 15-60 dB
TRIM
LINE 0-12 dB
MIC 15-60 dB
TRIM
LINE 0-12 dB
MIC 15-60 dB
TRIM
LINE 0-12 dB
MIC 15-60 dB
+ – + – + – + – + – + – + – + – + –
+ – + – + – + – + – + – + – + – + – + –
+ – + – + – + – + – + – + – + – + –
FOR CONTINUED
GROUNDING
PROTECTION
DO NOT REMOVE
SCREW
POWER 85-250 V
20 WATTS 50/60 Hz
8 9 6 6 7
1 1 2 2 3 5 4
