Manual-2 front panel description – Rane ME 60 2003 version User Manual
Page 4
Manual-2

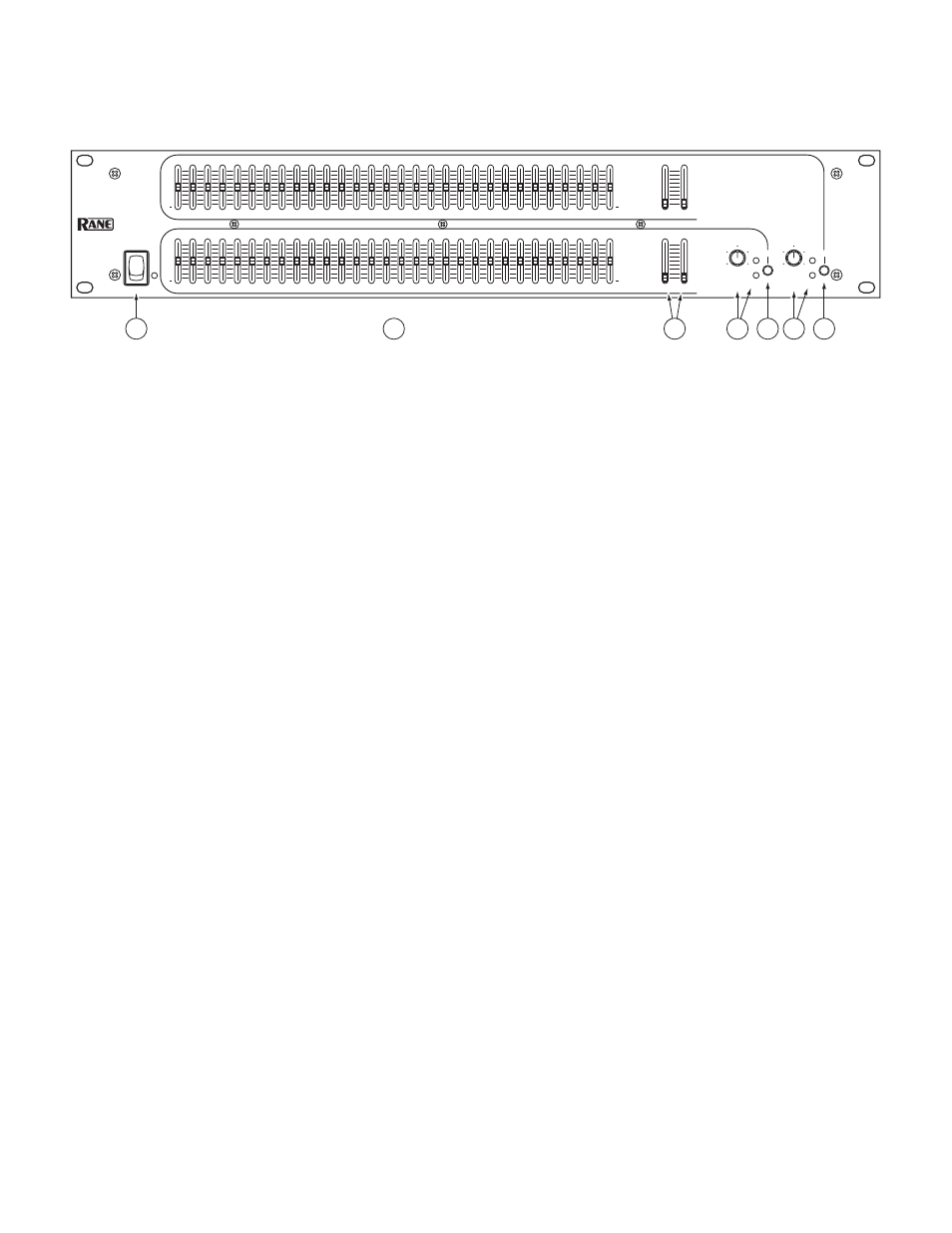

FRONT PANEL DESCRIPTION
POWER switch & indicator
glows yellow any time this switch is closed and power has, in fact, actually flowed into the ME 60.
Filter level controls
set the individual levels for each of the constant-Q filters. Their range is ±12 dB, and the grounded center-de-
tent design ensures individual filters are off and bypassed when positioned to their centers.
Channel LOW and HIGH CUT FILTER controls.
LOW CUT sets the corner frequency (-3 dB point) for the low cut filter
(high pass), adjustable from 10 Hz to 250 Hz. HIGH CUT sets the corner frequency (-3 dB point) for the high cut filter (low
pass), adjustable from 3 kHz to 40 kHz.
Channels 1 and 2 LEVEL controls
set the overall desired gain through the unit. The range is from Off to +8 dB for balanced
use, or from Off to +2 dB with unbalanced inputs. Unity gain is at approximately “6” (balanced) or “7” (unbalanced). Using
the highest setting (without lighting the Overload (OL) indicator) yields the best signal-to-noise performance. The OL indicator
monitors all critical points for excessive signal levels. It lights whenever these levels exceed 3 dB below clipping. Occasional flicker-
ing is normal; however, if it glows steadily, reduce the signal coming from the source, or turn down the LEVEL control.
Channel BYPASS switches
activates the “hard-wire” bypass function. When engaged (red BYPASS LED on), all three pins of
the input connectors directly connect to the same pins on the output connectors (hard-wired). Engaging this switch converts the
ME 60 into a relatively expensive patch cord, but one with pretty lights.
10
40
15
150
30k
40k
10k
5k
250
3k
10
40
15
150
30k
40k
10k
5k
250
3k
0
+
12
•
6
•
•
•
6
12
0
+
12
•
6
•
•
•
6
12
0
+
12
•
6
•
•
•
6
12
0
+
12
•
6
•
•
•
6
12
10
0
2
4
8
6
10
0
2
4
8
6
MICROGRAPHIC
EQUALIZER
ME 60
BYPASS
LEVEL
OL
BYPASS
LEVEL
OL
2
1
HIGH
LOW
HIGH
LOW
CUT FILTERS
CUT FILTERS
400
31.5
25
40
63
50
100
80
160
125
250
200
315
12.5k
1k
630
500
800
1.6k
1.25k
2k
3.15k
2.5k
5k
4k
8k
6.3k
10k
20k
16k
400
31.5
25
40
63
50
100
80
160
125
250
200
315
12.5k
1k
630
500
800
1.6k
1.25k
2k
3.15k
2.5k
5k
4k
8k
6.3k
10k
20k
16k
POWER
1
3
4 5
4 5
2
