Manual-3

FILTERS

ALL

+ -

100-240V

50/60 Hz 20 WATTS

DEQ 60

MADE IN U.S.A.

RANE CORP.

FOR CONTINUED

GROUNDING

PROTECTION

DO NOT REMOVE

SCREW

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

+ -

WIRING

TIP / PIN 2 = POSITIVE

RING / PIN 3 = NEGATIVE

SLEEVE = SIGNAL GROUND

PIN 1 = CHASSIS GROUND

OUTPUT B

BYPASS

OUTPUT A

INPUT B

INPUT A

U.S. PATENT 7,266,205

COMMERCIAL AUDIO

EQUIPMENT 24TJ

ACN 001 345 482

Channel A and B INPUTS:

Plug the outputs of the mixer or other source to these Inputs. Choose between the XLR, the ¼" TRS, or the Eurob-

lock Input jack—use only one—they do not sum.

Rane adheres to the international and U.S. standard for balanced pin configurations: Pin 1 is chassis ground (neutral), pin 2 is hot (positive),

and pin 3 is signal return (negative).

Avoid the temptation to use unbalanced tip-sleeve ¼" TS plugs, but if you must, keep them short as possible, 10 feet (3 meters) maximum. Long

unbalanced cables invite hum, noise and other undesirables. Balanced TRS ¼" are much better at rejecting noise.

The Euroblocks normally connect the cable shield to the ground terminal. For those installations where the internal shield-to-chassis connec-

tion causes interference, connect each shield directly to the chassis grounding screw located above each Euroblock connector, keeping the shield

wrapped around the audio conductors as much as possible. For optimum Electromagnetic Interference (EMI) immunity, connect the shields at

both ends of the cable to chassis ground.

See the RaneNote “Sound System Interconnection” for more information on system connections and proper grounding practices.

Channel A and B OUTPUTS:

Any Output can be used simultaneously with the others, take your pick. Same wiring as above...keep cables

short, always wire balanced when possible, eat your vegetables, yadda yadda.

BYPASS mode switch:

See 5, Front Panel, previous page.

Power connector:

Uses the standard cord provided. Inside the DEQ 60 is a universal internal switching power supply that accepts 100 to 240

VAC at 50 to 60 Hz, allowing it to work in most countries.

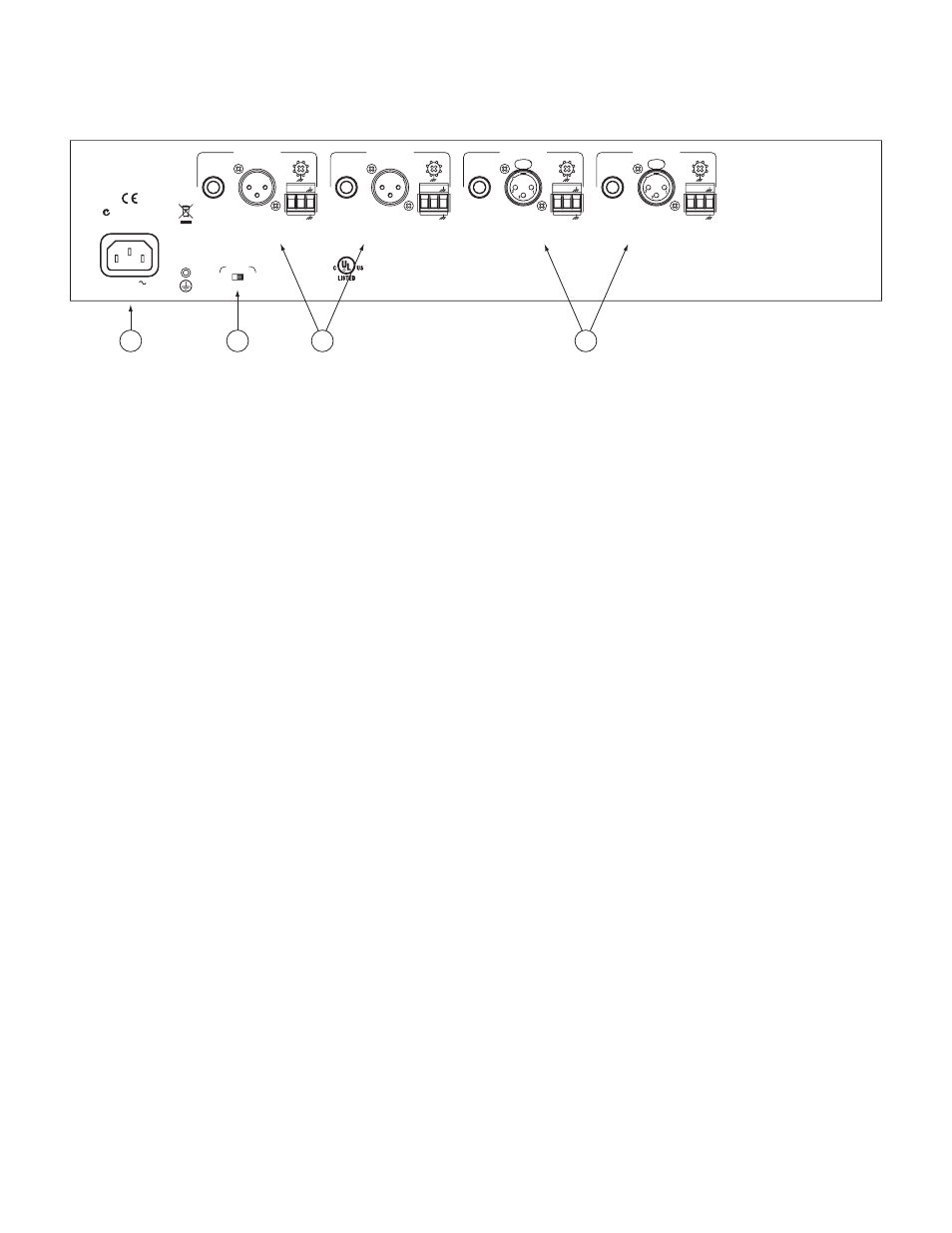

REAR PANEL DESCRIPTION

The DEQ 60 and DEQ 60L rear panels are identical except in height.
