Internal Settings: Page Priority to P2 (see page Manual-8).
Both P1 and P2 to Post-VCA summing.
Zone 1 Mode set to Stereo.
Front Panel Settings: PAGING ZONE ASSIGNS to RMT.
DUCKER DEPTH ON, set to 2:00.
ZONE REMOTE engaged.
PROGRAM SELECT switches to RMT to enable ZR 1 remotes.
Rear Panel Settings: ZONE LIMIT set to 10:00 (~0 dBu).
Program PRIORITY ASSIGN switch to Zone 1 (jukebox in lounge only.)
Both Zone 1 & 2 Expand source switches to ZONE for Page and Program in the restroom and patio.
Use of an isolation transformer is highly recommended with Program audio inputs driven from long cable lines. This is
also true for audio sources fed from satellite systems like DSS, DMX, Primestar, AEI, TV Cable, etc. Cable systems are
generally earth grounded down the street from the installation. This can generate quite a large ground loop with your in-house
fuse box and the rest of the audio system.

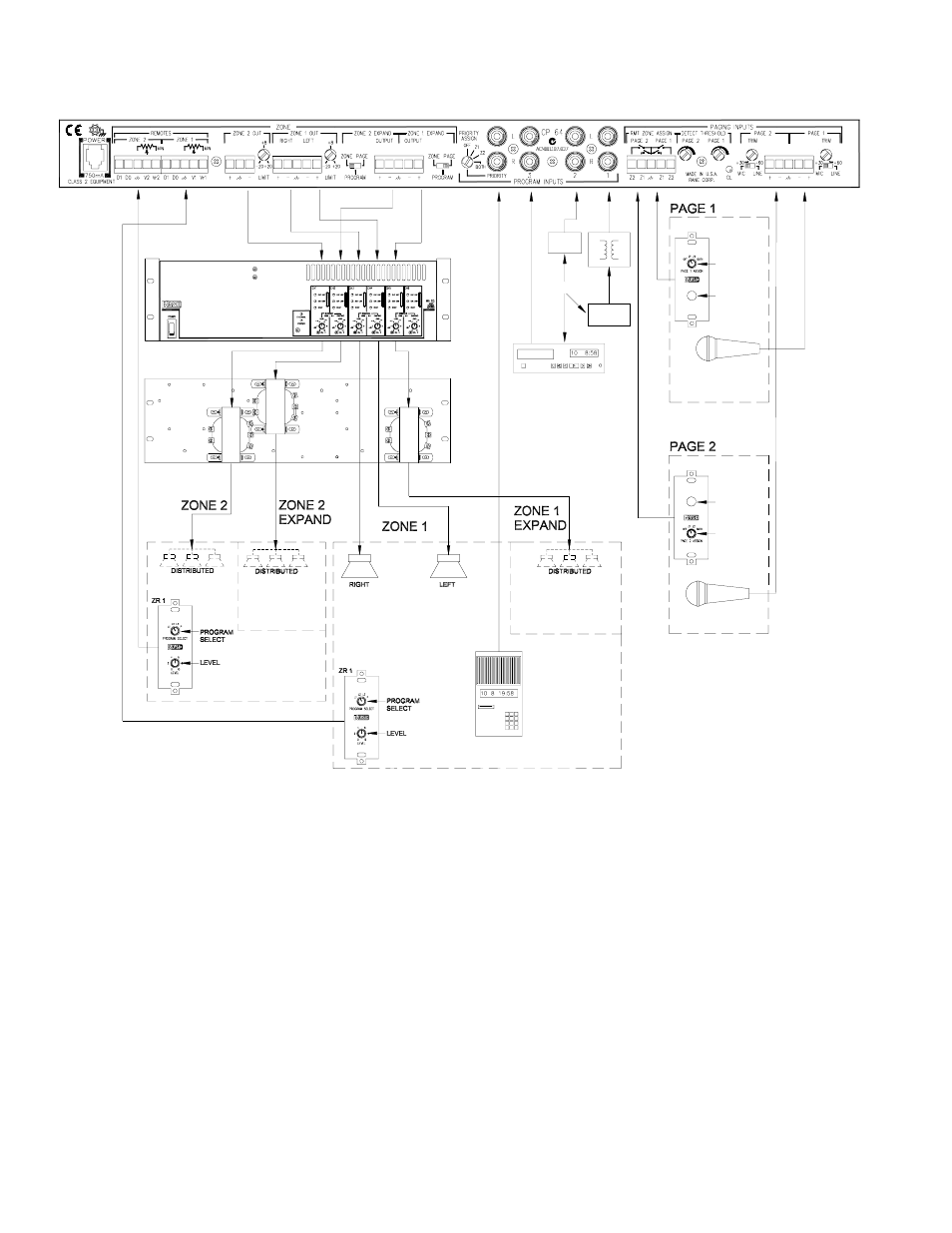

SYSTEM 3: BOB'S STEAK YOUR HEART OUT RESTAURANT
