SYSTEM APPLICATIONS
The following applications outline four unique system configurations. It is not practical to show every possibility, but the
following examples may provide some ideas for your own applications.
SYSTEM 1: KARAOKE
• For one singer and a master Page, set the internal Page Priority switch to P1. This allows the “Announcer” to Page any area
with the PR 2 remote.
• For two singers, set the internal Page Priority switch to NO. This allows the two mics to mix.
• Set both front panel Paging ZONE ASSIGNs to RMT.
• On the PR 2 Remote:
Set Page 2 Assign to Z1 (karaoke area only)
Set Page 1 Assign to Z1 for karaoke -or- Z2 for dining area page -or- BOTH for all-page.
• Zone 1 (karaoke) ZR 1 Remote: Set PROGRAM SELECT to L1; Adjust LEVEL as needed.
• Set both front panel Zone RMT switches in to enable the Zone Remotes
• When a priority program (jukebox) is desired in dining area, set the Program PRIORITY ASSIGN switch to Zone 2 only.
• Expand Outputs are still available (shown unused).
• For karaoke applications, set the internal Z1 Page and Z2 Page switches to Pre-VCA. This allows the ZR 1 remote Level to
control both Page and Program signal levels.
Notice: Rane does not endorse the use of Karaoke to inflict pain and suffering upon others.

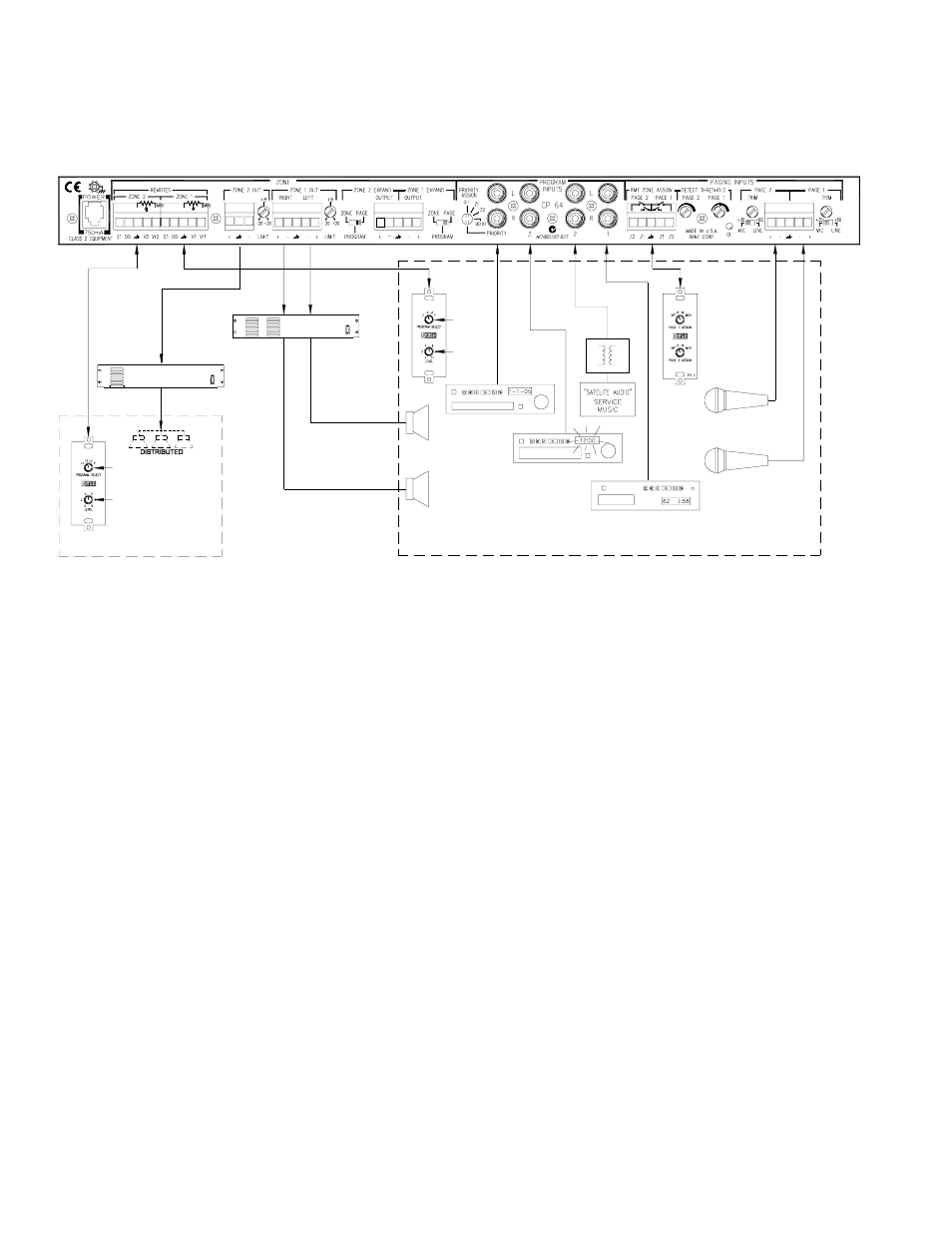

DINING AREA
ZR 1
LEVEL
PROGRAM
SELECT
MONO AMP
STEREO AMP
LEVEL
KARAOKE LOUNGE
VCR or TV TUNER AUDIO
PRIORITY 1
KARAOKE LASERDISC or DVD
CD CHANGER
or DINING PAGE
SINGER 1
SINGER 2
or ANNOUNCER
PR 2
SELECT
PROGRAM
ZR 1
PAGE IN LOUNGE
OR DINING AREA
