Vermont Castings EWF30
20008662
Specifications
Range of heat output* ............... 11,100 - 40,500 Btu/hr
Maximum heat output** ....... in excess of 55,000 Btu/hr
EPA emissions rating (g/h) ......................................3.5*
Area heated*** .............. Up to 2,400 sq. ft. (223 sq. m)
Size of wood splits ....................18” - 23” (457-584 mm)
Fuel Capacity .......................................... 40lbs. (18 kg)
Loading ..................................................................Front
Flue size .................................................... 8” (203 mm)
Fireplace weight ............................................... 350 lbs.
Primary Air Control ............................................ Manual
Glass panel ......................... High-temperature ceramic
Flue exit position ..................................................... Top
Blower rating ...............................160cfm. (115V, 60Hz) *Under specific test conditions used during EPA emis-
sions standard testing.
**This value can vary depending on how the unit is
operated, and the type and moisture content of the fuel
used. Figure shown is based on maximum fuel con-
sumption obtained under laboratory conditions and on
average efficiencies.
***These values are based on operation in building-
code conforming homes under typical winter climate
conditions. If your home is of nonstandard construction
(e.g. unusually well insulated, not insulated, built under
ground, etc.) or if you live in a more severe or more
temperate climate, these figures may not apply. Since
so many variables affect performance, consult your Ver-
mont Castings’ Authorized Dealer to determine realistic
expectations for your home.
EWF30
EWF30 Woodburning Fireplace

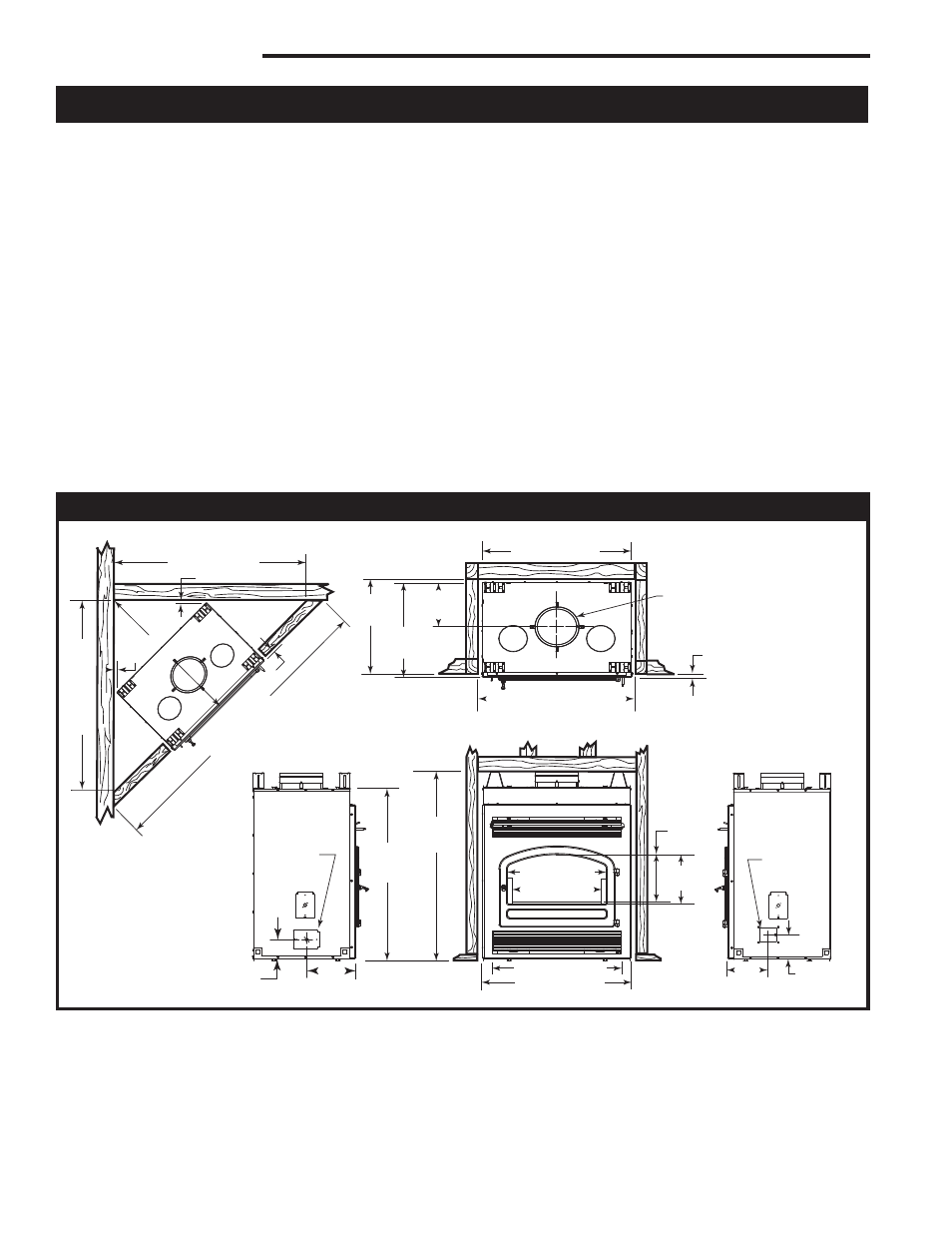

Fig. 1 EWF30 specifications and framing.
12”
(305 mm)
26”
(660 mm)
27”
(686 mm)
Rough Opening Width 39���”
(1000 mm)
37���” (949 mm)
11” Dia.
(279 mm)
5/8” (16 mm)
Recessed
Nailing Flange
32���” (826 mm)
37���” (949 mm)
47���"
(1203 mm)
6���”
(159 mm)
10”
(254 mm)
Outside Air
43���”
(1102 mm)
64���" (1635 mm)
64
���
" (1635 mm)
1" (25 mm)
1“
91” (231
1 mm)
46
���
”
(1
172 mm)
5/8" (16 mm)
Electrical
Access
4���”
(124 mm)
12���”
(318 mm)
8662
EWF30 specs
3/05
25“ (635 mm)
23���” (597 mm)
12���"
(318 mm)
12”
(305 mm)
An optional Gravity Vent Kit is available for installation on top of the fireplace as a means to provide additional heat to
the room the fireplace is in or an adjacent room. Installation instructions are provided with the Gravity Vent Kit if using
this option.
