Steps to Programming
2
Your Curtis Cafe System is Factory Pre-Set for Optimum Performance.
Portion Control Dispensing Mode
This program adjustment allows you to setup the machine to automatically dispense a preset volume of oatmeal product. When the user makes
a PUSH button selection, the unit dispenses only the volume of product programmed by the Portion Control Dispensing Mode. By setting the
unit for Portion Control Dispensing, you have locked out the manual dispense feature.
Enter Program Mode – press and hold STOP/WASH for about ten [10] seconds until all lights start blinking.
To select & change the Portion Control Dispensing Volume – while in the programming mode, press and hold the
selected PUSH button until hot water starts flowing, then release. The timing starts when hot water begins to flow.
Stop & Exit – When the cup volume reaches 3/4 full, press the PUSH button once again to stop the dispensing. You
have now set the automatic dispense timing for this button and have exited the programming mode. Pressing the
dispense button now will provide only the product volume that was just set. To reset the timing, you must start again
by entering the programming mode.
WARNING HOT LIQUID, Scalding
may occur. Avoid splashing.
Place an empty container under the
dispensing nozzles while programming.

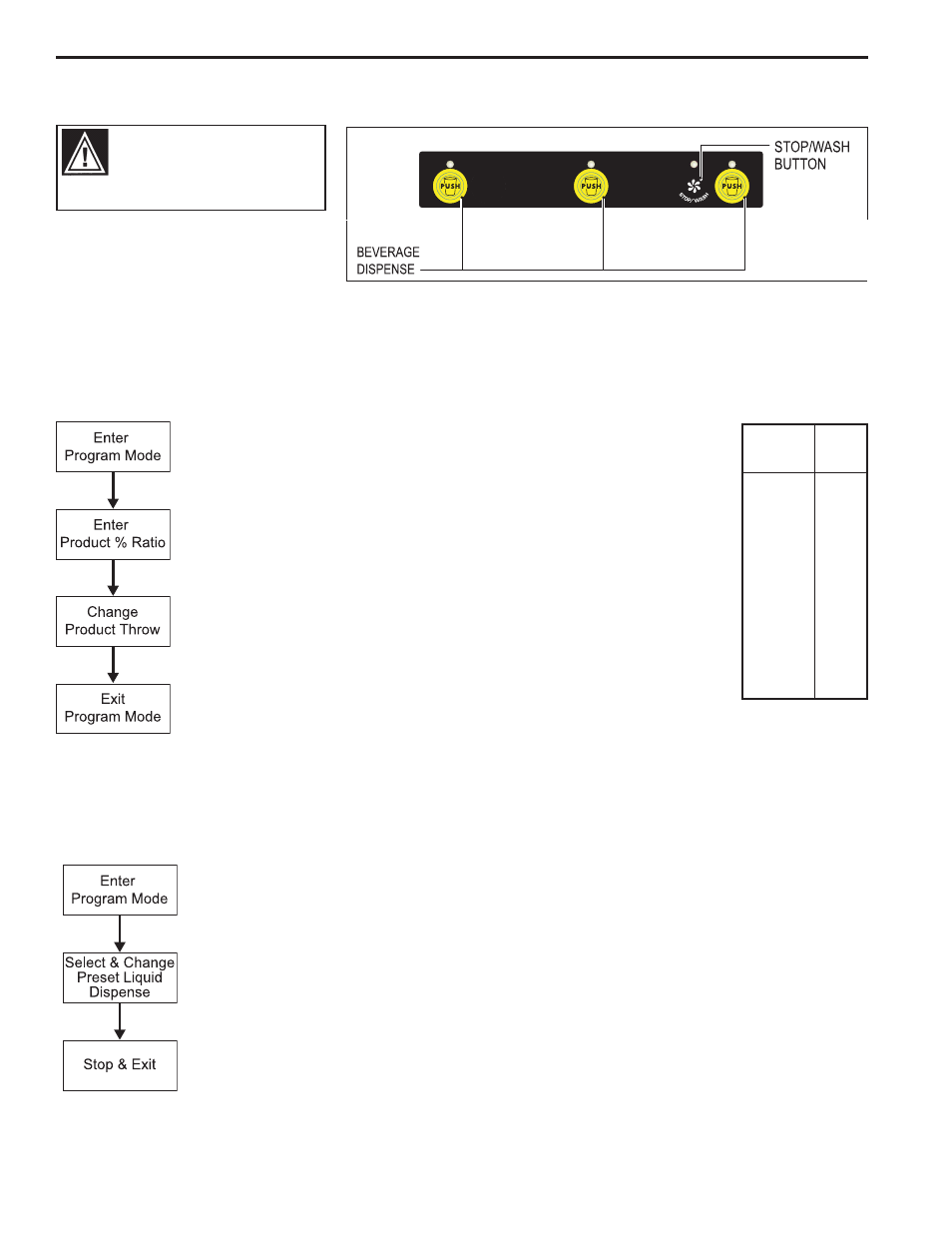

All programming is performed at the control panel
(illustration, right).
The STOP/WASH BUTTON has several func-
tions. This button is used to stop a Portion Control
dispense cycle. It is used to dispense hot water, and it is used to enter the programming functions.
Enter Program Mode – Press and hold the STOP/WASH button for about ten [10] seconds
until all lights start blinking.
To program Product % Ratio – Select the product button, marked PUSH, that you wish to
change. Press and hold this PUSH button for approximately one second, then release. The
current setting will be indicated by the blinking light above the button.
To change the product throw – Press and hold the selected PUSH button until the light
starts to quick flash. Each quick flash increases the amount by 10%. Release the button when
the desired throw ratio is attained. After releasing the button, the slower blinking light will
resume. The new product ratio setting is indicated by counting the number of blinks.
To exit the Powder Dispensing Mode, press one of the other PUSH buttons on the control
panel. This will set the product ratio and exit from the program mode.
Product % Ratio
This controls the amount of dry product that is metered from the hoppers. This can be programmed from 10% to 100% of the capacity of the
dispensing system. By counting number of flashes you can determine the product % ratio currently set for this dispense button (see table).
