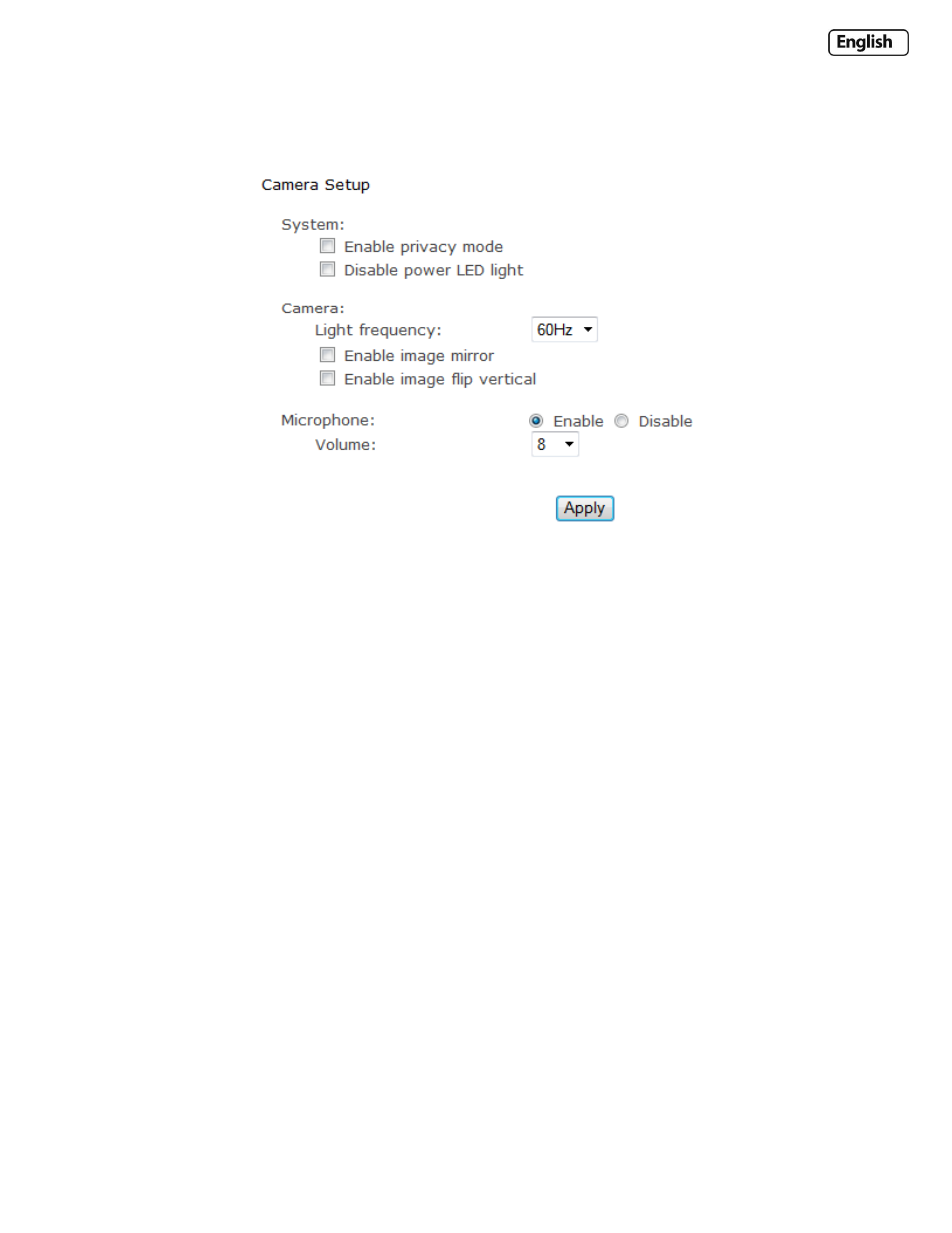

6.5.1 Camera Setup
For most users, many of these settings can be left as default.
Camera Setting Options
System:
[Enable privacy mode] Videos will not be seen.
[Power LED light] Turns off the Y-cam front LED on or off during normal operation.
Camera:
[Light Frequency] Two options: 50Hz & 60Hz. This should be set according to the mains frequency of the country the
camera is being used in. For UK this would be 50Hz. For the USA this would be 60Hz.
[Enable image mirror] Displays a mirrored view of the video.
[Enable image flip vertical] Display video upside down – useful if you have installed the camera upside down.
Microphone:
[Microphone] Enables or disables the built-in microphone.
[Volume] Adjusts the sensitivity of the microphone from 0~10 where 0 is the lowest.
Click Apply to confirm your setting.
