Connect Frame to Tent

– Insert one end of main tent pole end

onto pin of pin & ring system, at tent
corner. (illus. 3)

– Go to opposite end of pole and

gradually apply pressure to the pole
forming an arch until you are able to
insert the pin into the pole.

– Repeat for second pole. (illus. 4)

1

Layout & Positioning
of Tent, Pole Assembly

– Layout and position tent with door

facing desired direction. (illus. 1)

– Unzip door.
– Stake down tent corners only, using

the rings at the end of the stake loops.
Keep the floor taut. (illus. 2)

– Assemble frame poles by

interlocking shock-corded poles.
This will make two long poles.

– Insert the poles diagonally into pole

sleeves. The center of the poles
should cross forming an “X” in the
middle of tent. (illus. 1)

2

Assembled
poles
inserted
through
pole
sleeves

illus. 1

illus. 4

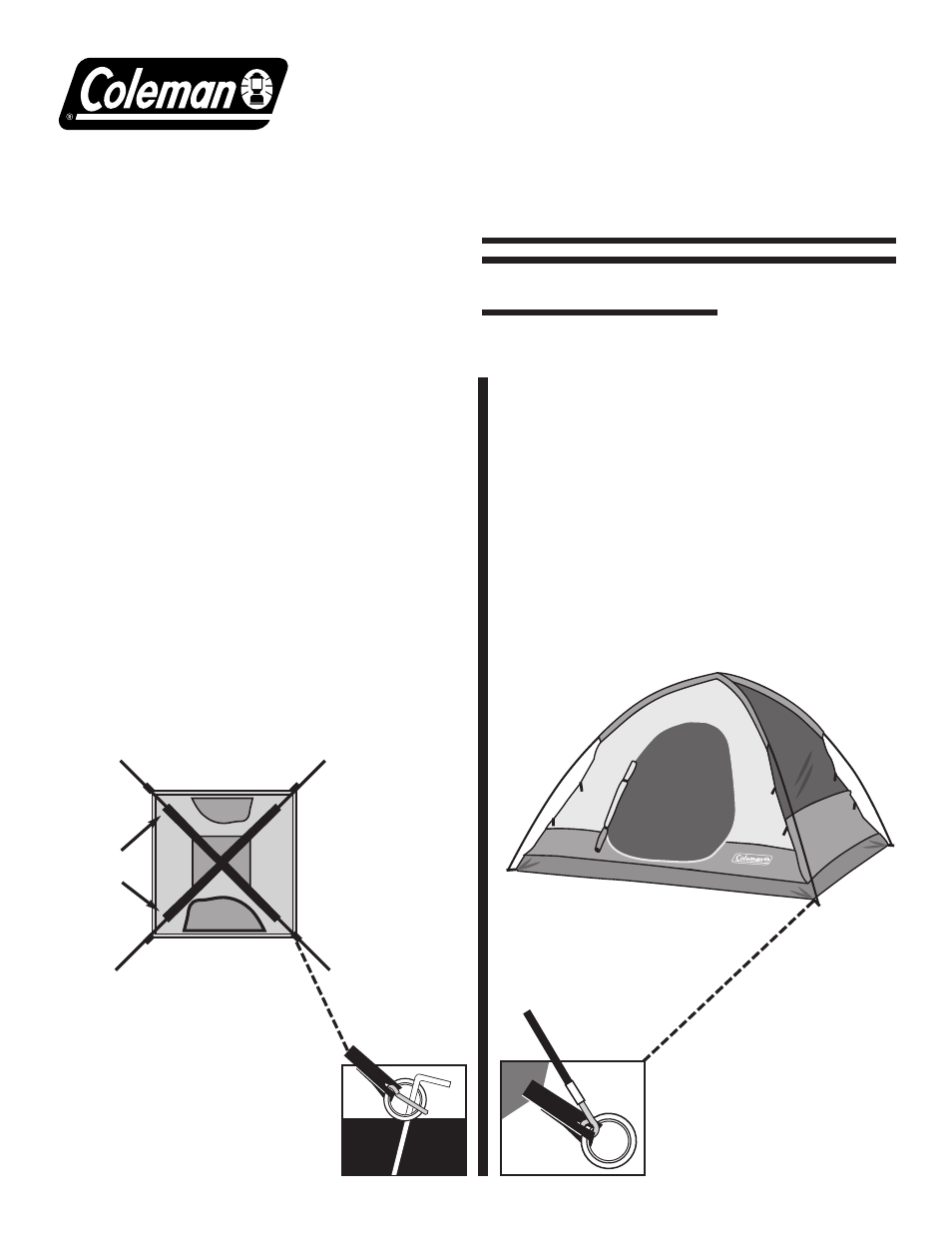

Tent frame set-up

illus. 2

Tent stake through ring

illus. 3

Insert pole end onto
pin & ring

SUNDOME

®

9’x7’

When You Are Ready
To Set Up Your Tent

– Select a level campsite clear of

rocks, branches and other hard
or sharp objects.

– Do not set up your tent under trees.
– For best results in windy conditions,

do not position the door of tent
into the wind.

Rainfly

Pole

Rainfly Part No. 9180B3071

Main Tent

Poles

POLE ASSEMBLY PARTS

Instructions apply to Part Number 9180B907

Part No. 9180A3081

Part No. 9180A3091
