Montana, 8 tent, Pole descriptions

background image

STITCH LINE

MONTANA

TM

8 TENT

MODEL 2000001594

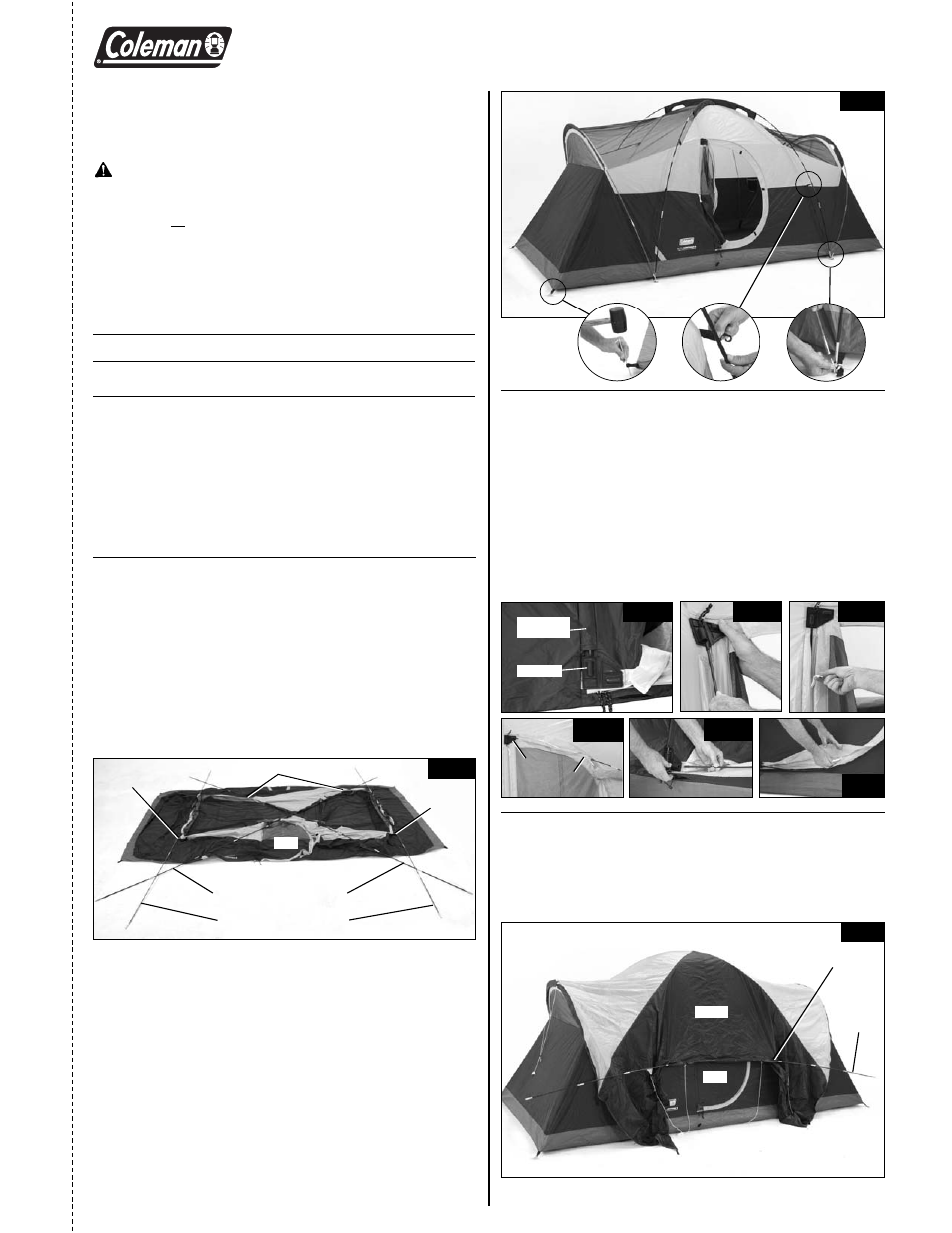

To Set Up Tent

1. Unfold tent and spread out on a clean, level surface with the door

facing the desired direction. (Fig. 1)

2.

Assemble all poles by interlocking the shock-corded, sections
together.

3.

Insert grey Side Body Poles through the grey trimmed sleeves on
both sides of tent; then insert black Main Body Poles through black
trimmed sleeves, in center of tent, forming a “X”. Make sure black
Main Body Poles overlap the grey Side Body Poles. (Fig. 1)

To Attach Rainfly

1. Insert black Rainfly Pole with through sleeve in underside of

Rainfly. (Fig. 9)

2. Drape Rainfly over tent with Rainfly Pole centered above front door

& the dark blue vestibule flaps located in the front. (Fig 9)

(continued on other side)

Fig. 2

Door

2C

Fig. 1

Door

Front of Tent

Black, Shock-corded Main Body Poles

Grey, Shock-corded Side Body Poles

Sleeve with

Grey Trim

Sleeves with Black Trim

Sleeve with

Grey Trim

Fig. 9

Black Rainfly

Pole

Door

Rainfly Sleeve

Pole Descriptions

Pole

Pole

Pole

Description

Qty.

Dia.

Repair Kit

Replacement Kit

Main Body Pole, black

2

11mm

501000539

501000549

Side Body Pole, grey

2

9.5mm

501000540

501000548

Rainfly Pole, black

1

11mm

501000539

501000549

Vertical Door Pole, black,

short w/rubber tips

1

6.3mm

501000543

501000545

Door Pole, black,

long w/rubber tips

1

6.3mm

501000543

501000545

Before you begin

Read all instructions before set up.
• Select a level site clear of rocks, branches, and other hard or sharp

objects, to install your tent.

WARNING: Keep clear of overhead power lines.

• Do not set up your tent under trees because of potential lightning

strikes or falling tree limbs in inclement weather.

• Secure with all stakes and guylines provided to prevent property

damage or personal injury.

• For best results in windy conditions, position narrow end of tent into

the wind.

• Enlist the help of at least one other person to assist you when it is

time to assemble the tent.

4. Insert end of each black Main Body Poles & grey Side Body Poles

into pins. (Fig. 2 & 2A)

5. Go to opposite end of each pole and gradually apply pressure to

each forming arches. Insert the pin into each pole end at the sides
and corners of tent. (Fig. 2 & 2A)

6. Attach frame clips along edges of tent to the black Main Body Poles

& grey Side Body Poles. (Fig. 2B)

7. Stretch tent until taut, then secure metal loops located on both

sides and web loops located at four corners of tent with stakes.
(Fig. 2C)

Hinged, Rigid Door

1. Assemble Vertical Door Pole (shorter black pole with plastic tips);

then insert through zippered vertical pole sleeve on hinged side of
door. (Fig. 3)

2. Insert end of Vertical Door Pole into bottom hinge plate, apply

pressure to form a slight bow, then insert other tip of pole into top
hinge. Zip up vertical pole sleeve. (Fig. 4 & 5)

3. Assemble Door Pole (longer black pole with plastic cap tips); then

insert into zippered pole sleeve at top of door. (Fig. 6)

4. Insert end of Door Pole into top hinge plate, apply pressure to form

a bow, then insert other tip of pole into the bottom hinge. (Fig. 7)

5. Zip up pole sleeve to enclose Door Pole. (Fig. 8)

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Vertical Pole

Sleeve

Door Hinge

Pole

Sleeve

Top

Door

Hinge

Pole

Sleeve

Top

Door

Hinge

Rainfly

2B

2A
