4

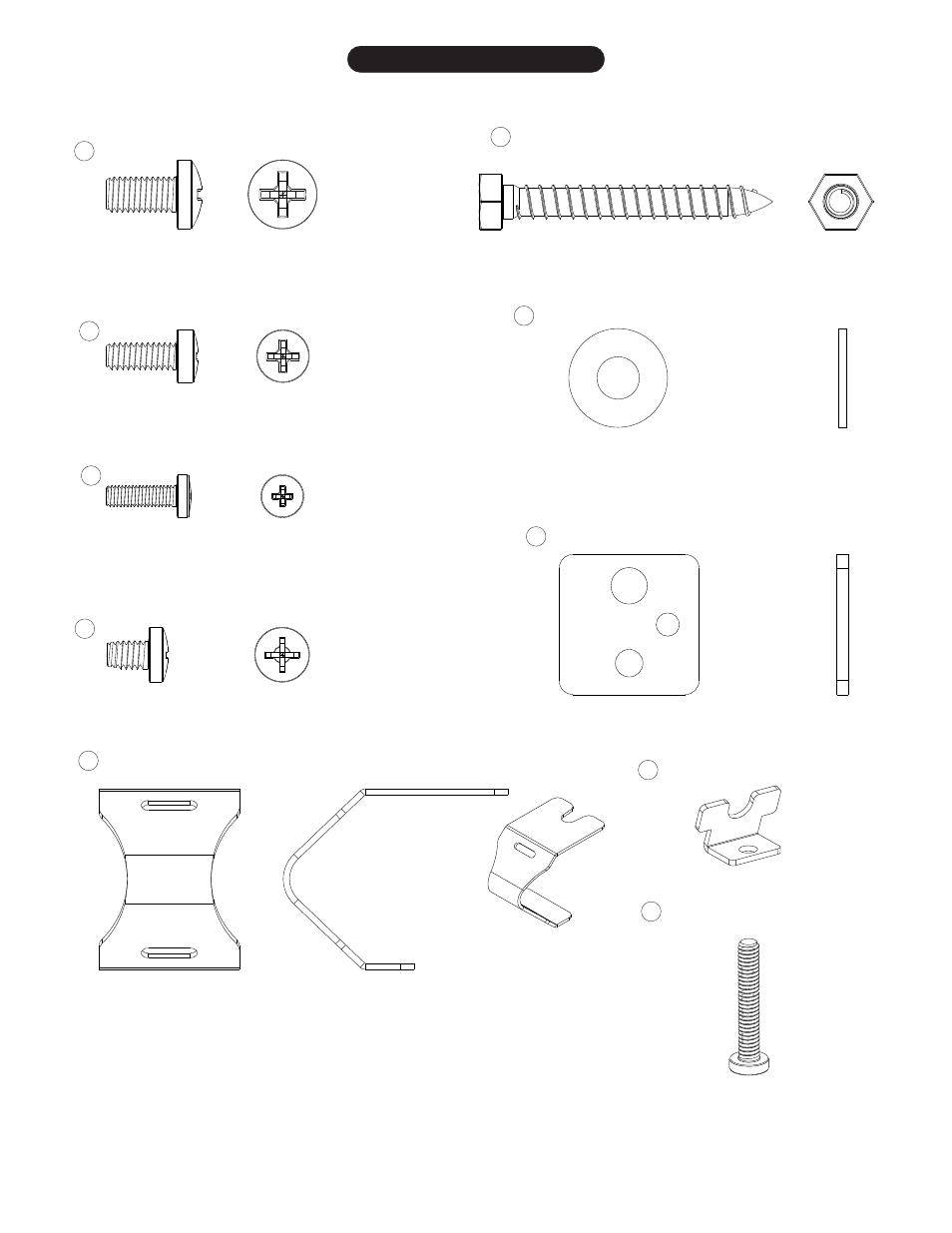

MOUNTING HARDWARE
1/4-20 X 1/2 PAN HEAD
PHILLIPS SELF TAPPING
MACHINE SCREW
8 REQUIRED
M8 X 16 PAN HEAD
PHILLIPS MACHINE SCREW
4 REQUIRED
M6 X 16 PAN HEAD
PHILLIPS MACHINE SCREW
4 REQUIRED
M5 X 16 PAN HEAD
PHILLIPS MACHINE SCREW
4 REQUIRED
5-16 X 2 1/2 LAG BOLT
6 REQUIRED
5/16 X 7/8 USS STEEL
FLAT WASHER
6 REQUIRED
SQUARE MULTI WASHER
LOCKING TAB 2 REQUIRED
4 REQUIRED
1
2
3
4
6
7
8
CABLE MANAGEMENT
BRACKET
8 REQUIRED
5
9
1/4-20 PAN HEAD PHILLIPS SCREW
2 REQUIRED
10
