10 | P a g e
3. To properly install ignition system, a spark and ground wire
need to be attached to the igniter box.


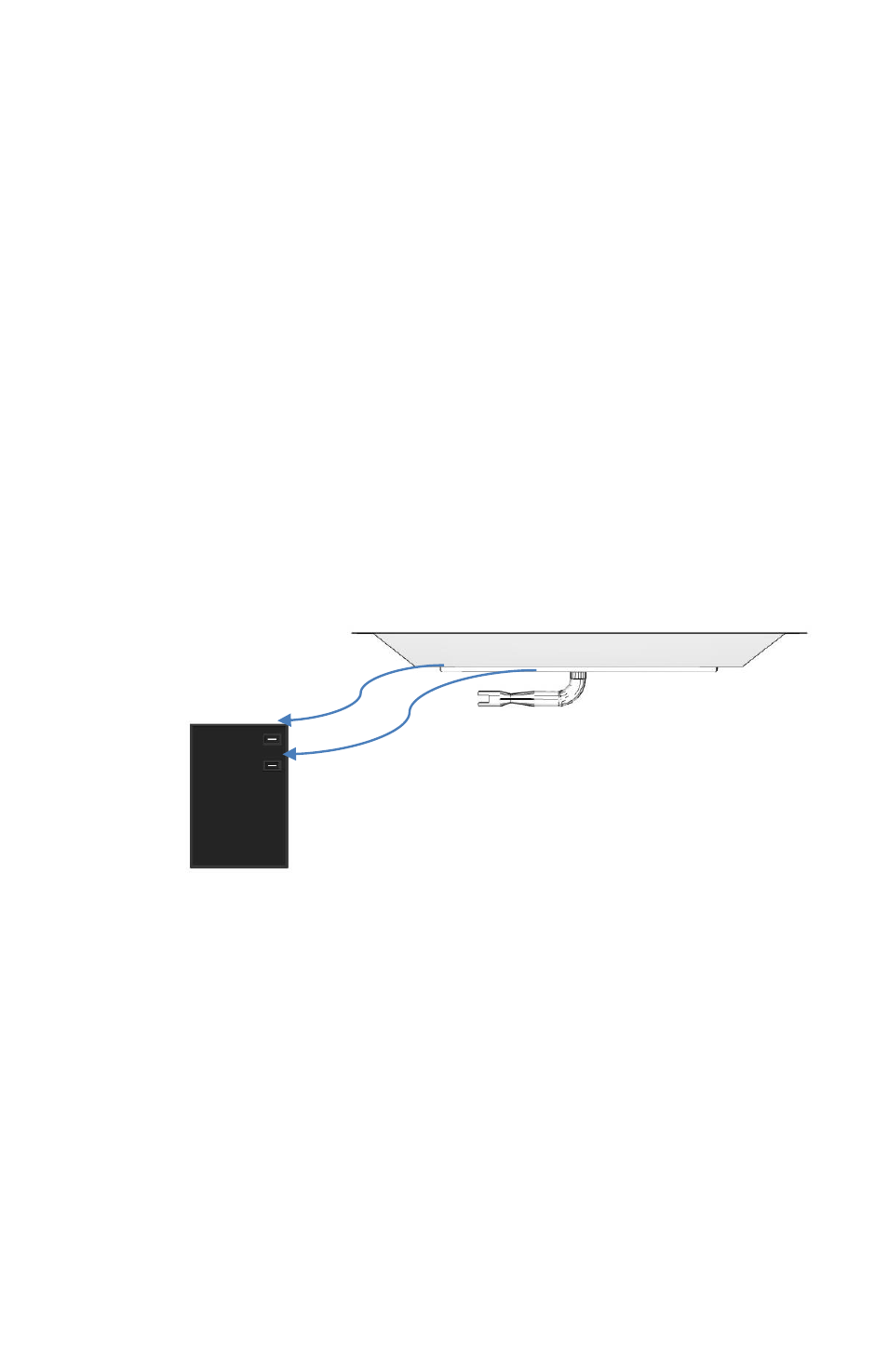

Make sure both black wires attached to the burner are
securely plugged into the backside of the sparker box
as shown.

Ensure that an AAA battery is installed in the sparker
box with the positive (+) side facing outward. Test
system by depressing the button on the igniter. A
continuous repeating spark between the igniter
electrode and spark-receiving probe means everything
is connected properly. Consult the troubleshooting
section of burner owner’s manual if spark is weak,
intermittent, or not present.
