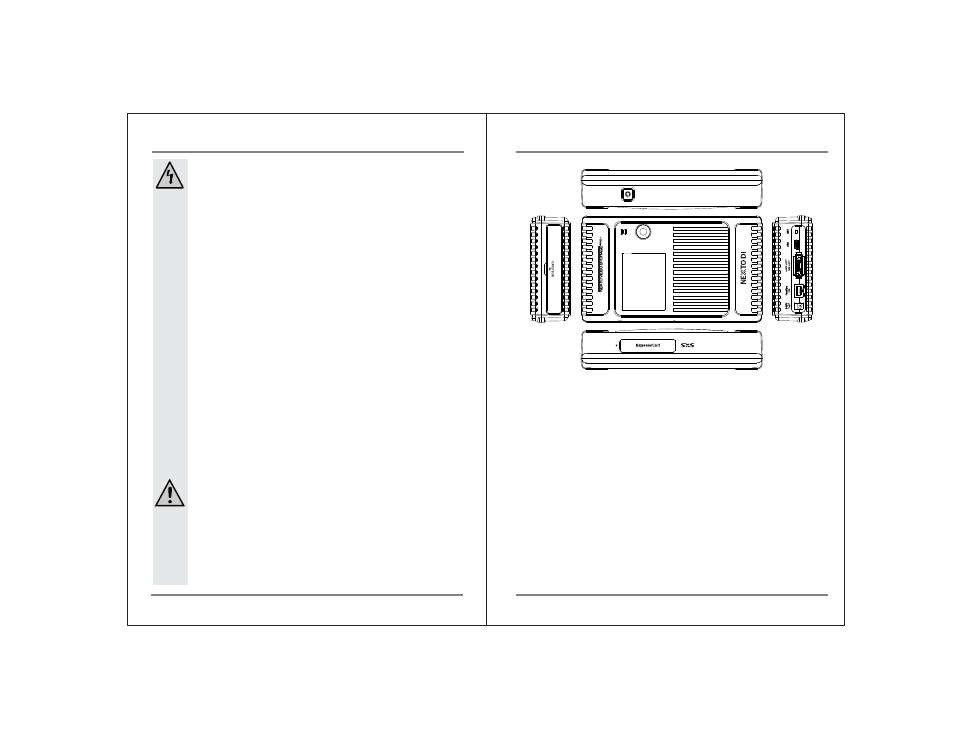

5. Device Diagram
07
SAFETY INSTRUCTIONS DEVICE DIAGRAM
08
Warning
● The case of the hard disk must not get damp or wet.
Protect the device from humidity and water, from sun, excessive heat
(>113°F) or cold (<32ºF), dust and dirt.
● When the product is brought from a cold place into a warm room,
condensation may form. This could damage the product. Always let
the product get to room temperature before use or before connecting
the AC power adapter unit. This can take several hours.
● Do not use in tropical climate conditions
● The AC power adapter unit complies with safety class II. As a voltage
source only a proper power socket of the public power supply system
may be used. Note the input voltage/frequency imprinted on the AC
Adapter. It must correspond to the voltage/frequency of the power
outlet. The AC power adapter is equipped with an input voltage
range of 100 ~ 240V, 50/60Hz. Adapters may be necessary for use in
countries other than the US.
● The product is not a toy and should be kept out of reach of children!
● Do not place liquid near the product. Liquid could get inside
the housing and cause a fire or electric shock. In case of fire damage
or short circuit, de-energize the respective socket (e.g. turn off
circuit breaker) and only then pull the AC power adapter unit from
the socket. Do not attempt to use the product! Take it to your dealer
for repair immediately.
● Never touch the AC power adapter unit when your hands are damp
or wet.
● In industrial facilities, safety regulations for electrical equipment
and facilities must be observed. If the product is used at schools,
training facilities, or do-it-yourself/hobby shops, it should not be
handled unless supervised by trained, responsible personnel.
● Do not drop NVSPRO+ device.
Caution
The product must not get damp or wet. This product is not a toy.
It contains fragile and swallowable glass parts, small parts,
and a rechargeable battery. Any use other than that described above
may damage the product. Read these operating instructions thoroughly
and carefully. The instructions contain important information for
installation, operation, and handling. Take note of all safety
instructions.
① DC IN" slot for AC power adapter unit (wall plug; 6~25V).
② Connector " IEEE 1394b (Firewire 800)" to connect to the computer with max
800Mbps speed.
③ Combo slot for “eSATA_Host” and “USB_Host”
● eSATA Host slot to connect eSATAp external hard drive.
● USB Host slot to connect USB external hard drive or IKEGAMI GFPAK or USB Blu-ray driver.
④ "USB” slot for USB2.0 device connection to a computer
⑤ Recessed Reset key, to be pressed with a tooth pick or similar tool;
switches off NVSPRO+ in the event of a hardware or software malfunction.
⑥ ExpressCard slot for SxS card and CF card connection. CF card needs CF card
adapter which is included in the NVSPRO+ box.
⑦ LCD Display
⑧ Control key. Controls up/down/left/right/select of cursor when power is on.
⑨ Power key. Controls power on/off and selecting command when power is on.
⑩ Cardbus slot for Cardbus Memory card (including P2/P2E) connection.
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
