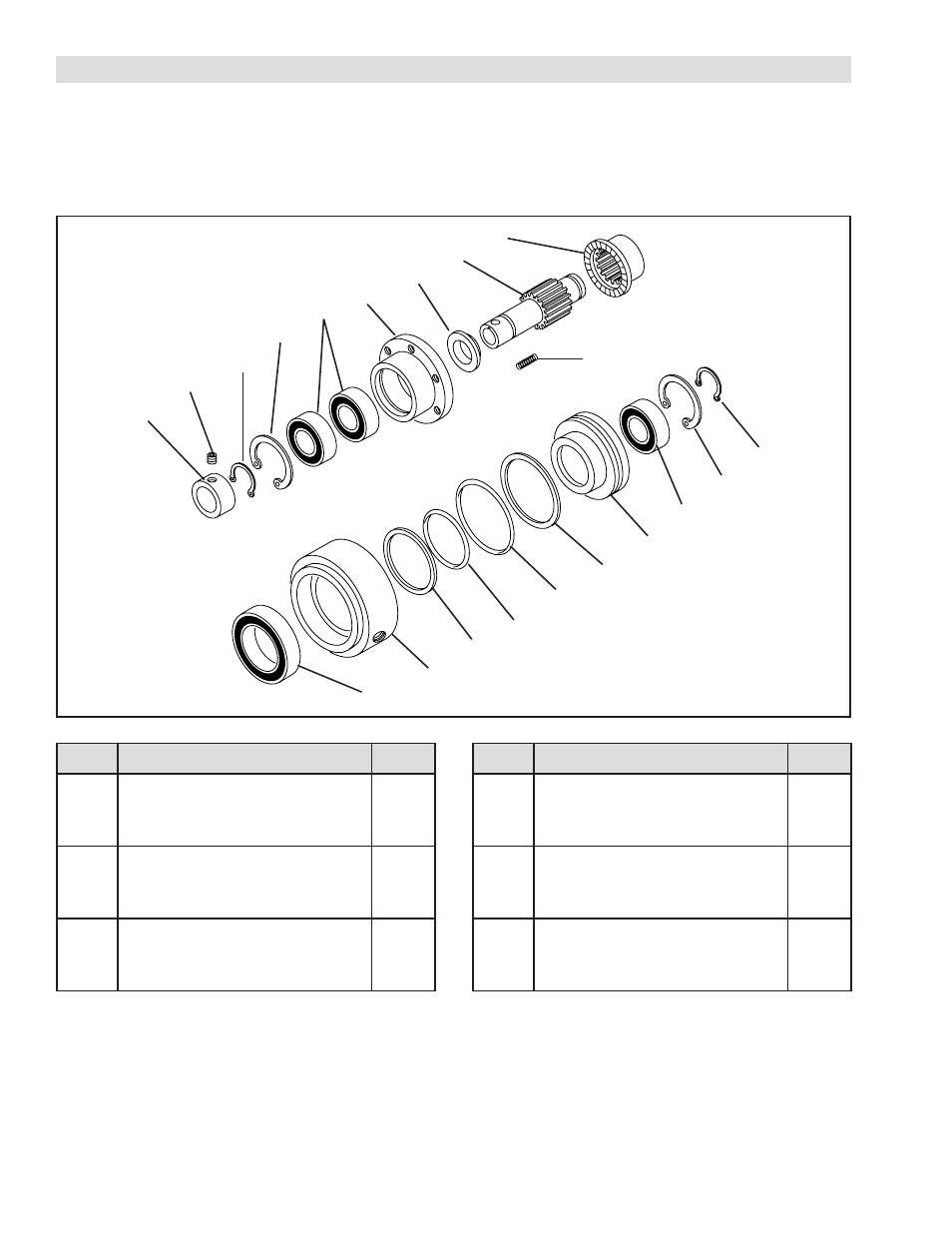

REPLACEMENT PARTS
ITEM DESCRIPTION QTY
1 Hub 1
2 Cylinder 1
3 Piston 1
4 Drive Ring 1
6 Backing Plate 1
7 Compression Spring 3
8 1 Ball Bearing 1
9 1 Ball Bearing 3
10 Retaining Ring (Int.) 2
1 Denotes Repair Kit Item (Repair Kit No. 911309).
The item or balloon number for all Nexen products is used
for part identification on all product parts lists, product
price lists, unit assembly drawings, bills of materials, and
instruction manuals. When ordering replacement parts, specify model designa-
tion, item number, part description, and quantity. Purchase
replacement parts through your local Nexen Distributor.
4
7
1
6
15
9
10
11
16
19
2
25
13
12
23
3
9
10
11
8
ITEM DESCRIPTION QTY
11 Retaining Ring (Ext.) 2
12 1 O-Ring Seal (Large) 1
13 1 O-Ring Seal (Small) 1
14 A/C Hose (8.25" long) (not shown) 1
15 Drive Flange 1
16 Set Screw 2
19 Hub Collar 1
23 1 Back-up Ring (Large) 2
25 1 Back-up ring (Small) 1
