Replacement parts (continued) – Nexen 5H60PSP-E 913059 User Manual
Page 14
14
FORM NO. L-20205-C-1209
4
2
9
5
6
25
21
16
20
15
3
12
14
13
8
24
14
13
12
7
19
18
1
11

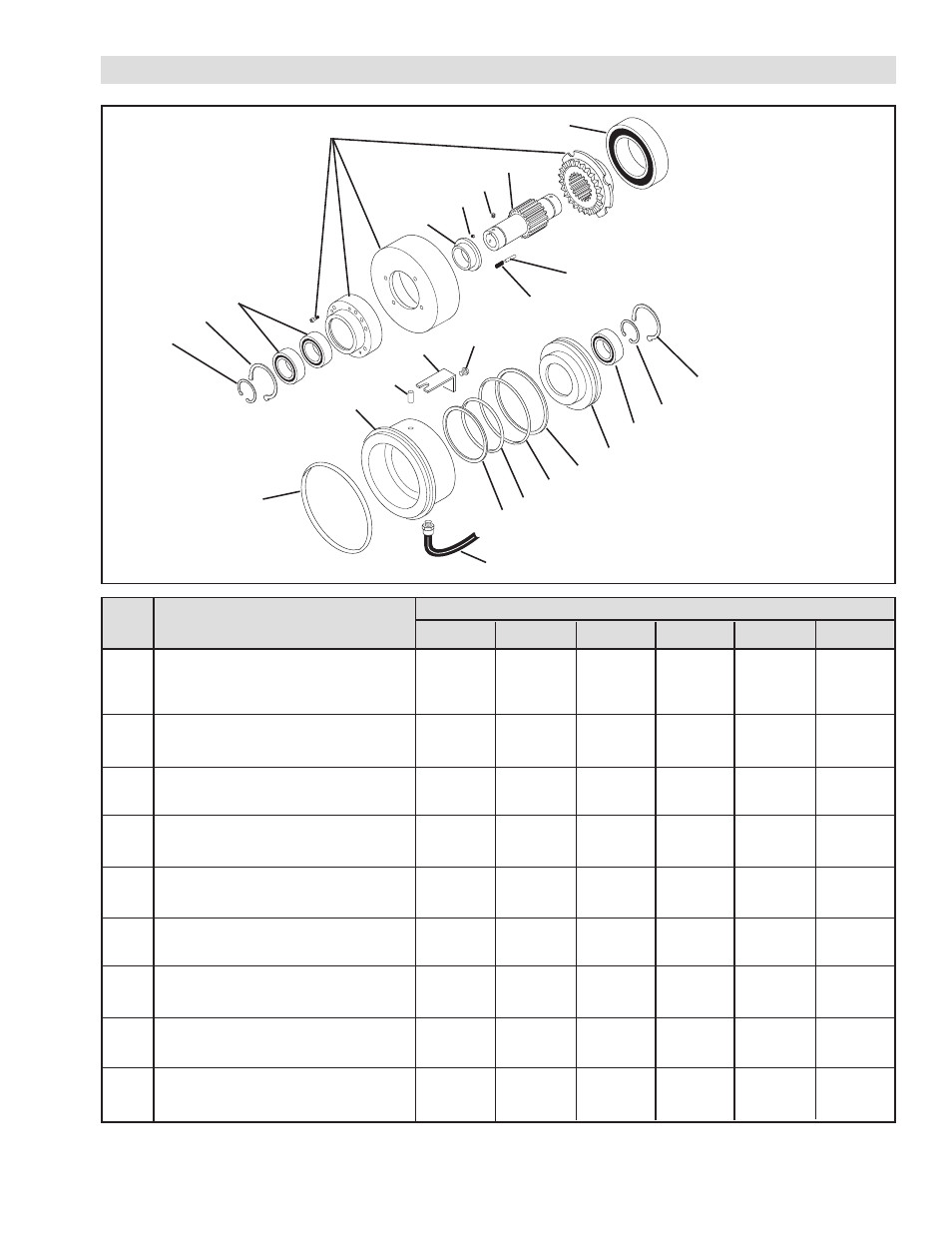

FIGURE 14
17
QUANTITY
ITEM
DESCRIPTION
5H30PSP-E 5H35PSP-E 5H40PSP-E 5H45PSP-E 5H50PSP-E 5H60PSP-E
1
Hub
1
1
1
1
1
1
2
Cylinder
1
1
1
1
1
1
3
Piston
1
1
1
1
1
1
4
Rotary Seal
1
1
1
1
1
1
5
Anti-Rotation Clip
1
1
1
1
1
1
6
Button Head Cap Screw
2
2
2
2
2
2
7
Backing Plate
1
1
1
1
1
1
8
1
Compression Spring
6
10
12
13
15
18
11
1
Ball Bearing
1
1
1
1
1
1
12
1
Ball Bearing
3
3
3
3
3
3
13
Retaining Ring (Int.)
2
2
2
2
2
2
14
Retaining Ring (Ext.)
2
2
2
2
2
2
15
1
O-Ring Seal (Large)
1
1
1
1
1
1
16
1
O-Ring Seal (Small)
1
1
1
1
1
1
17
Drive Flange Assembly
1
1
1
1
1
1
Socket Head Cap Screw (Included in 17)
3
3
3
3
3
3
Drive Flange (Included in 17)
1
1
1
1
1
1
Enclosure (Included in 17)
1
1
1
1
1
1
Drive Ring (Included in 17)
1
1
1
1
1
1
Balls (Included in 17)
5
5
5
5
5
5
Ball Carrier (Included in 17)
1
1
1
1
1
1
18
Set Screw (190-24)
2
2
2
2
2
2
19
Set Screw (250-20)
4
4
4
4
4
4
20
1
Back-Up Ring (Large)
1
1
1
1
1
1
21
1
Back-Up Ring (Small)
1
1
1
1
1
1
24
Spring Stiffener Pin
6
10
12
13
15
18
25
Air Line
1
1
1
1
1
1
1
Denotes Repair Kit Item.
REPLACEMENT PARTS (continued)
