11
FORM NO. L-20205-C-1209
BEARINGS (Items 11 & 12)
Cylinder/Piston Assembly

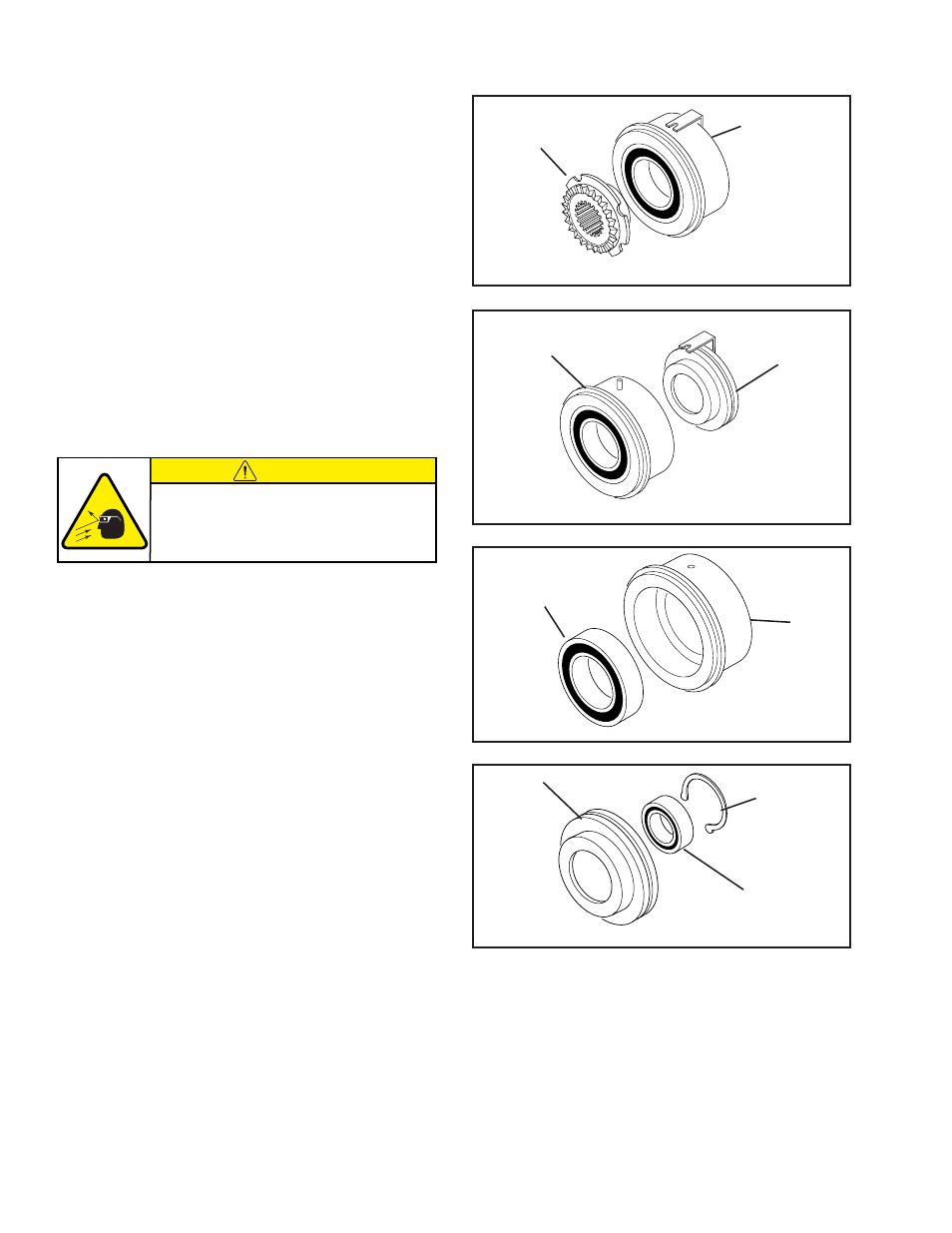

Refer to Figures 5 - 8.
1. Remove Drive Flange (Item 22).
2. Separate Piston (Item 3) from Cylinder (Item 2).
3. Press Bearing (Item 11) out of Cylinder (Item 2).
4. Clean bore of Cylinder (Item 2) with fresh safety solvent.
5. Apply Loctite ® 680 to O.D. of new Bearing (Item 11)
and press Bearing into Cylinder (Item 2).
NOTE: When installing new Bearing, carefully align
Bearing O.D. with bore of Cylinder to prevent
bearing misalignment.
6. Remove Retaining Ring (Item 13) from Piston (Item 3).
7. Press Bearing (Item 12) out of Piston (Item 3).
8. Clean bore of Piston (Item 3) with fresh safety solvent.
9. Apply Loctite ® 680 to O.D. of new Bearing (Item 12)
and press Bearing into Piston (Item 3).
NOTE: When installing new Bearing, carefully align
Bearing O.D. with bore of Piston to prevent
bearing misalignment.
10. Install Retaining Ring (Item 13).
Piston/Cylinder
Assembly
Drive Flange
(Item 22)
FIGURE 5
Piston
(Item 3)
Cylinder
(Item 2)
FIGURE 6
Cylinder
(Item 2)
Bearing
(Item 11)
FIGURE 7
Piston
(Item 3)
Bearing
(Item 12)
Retaining
Ring
(Item 13)
FIGURE 8
PARTS REPLACEMENT (continued)
CAUTION
Working with spring loaded or tension
loaded fasteners and devices can cause
injury. Wear safety glasses and take the
appropriate safety precautions.
