Page 9

FORM NO. L-21222-E-1211

MANUAL RELEASE

The Nexen RLSS-C-MR a n d t h e R LS S - S - M R a r e
designed with a manual release (override). In the event that
the air supply is cut off or unavailable, unlocking can be
performed with a common wrench or socket. Simply turn
the bolt clockwise and hold to release the Rod Lock (See
Figure 6).

The cam is designed to be fail-safe and will not allow the
Rod Lock to unlock without applying torque. If torque to the
bolt is relieved, the mechanism will re-lock.

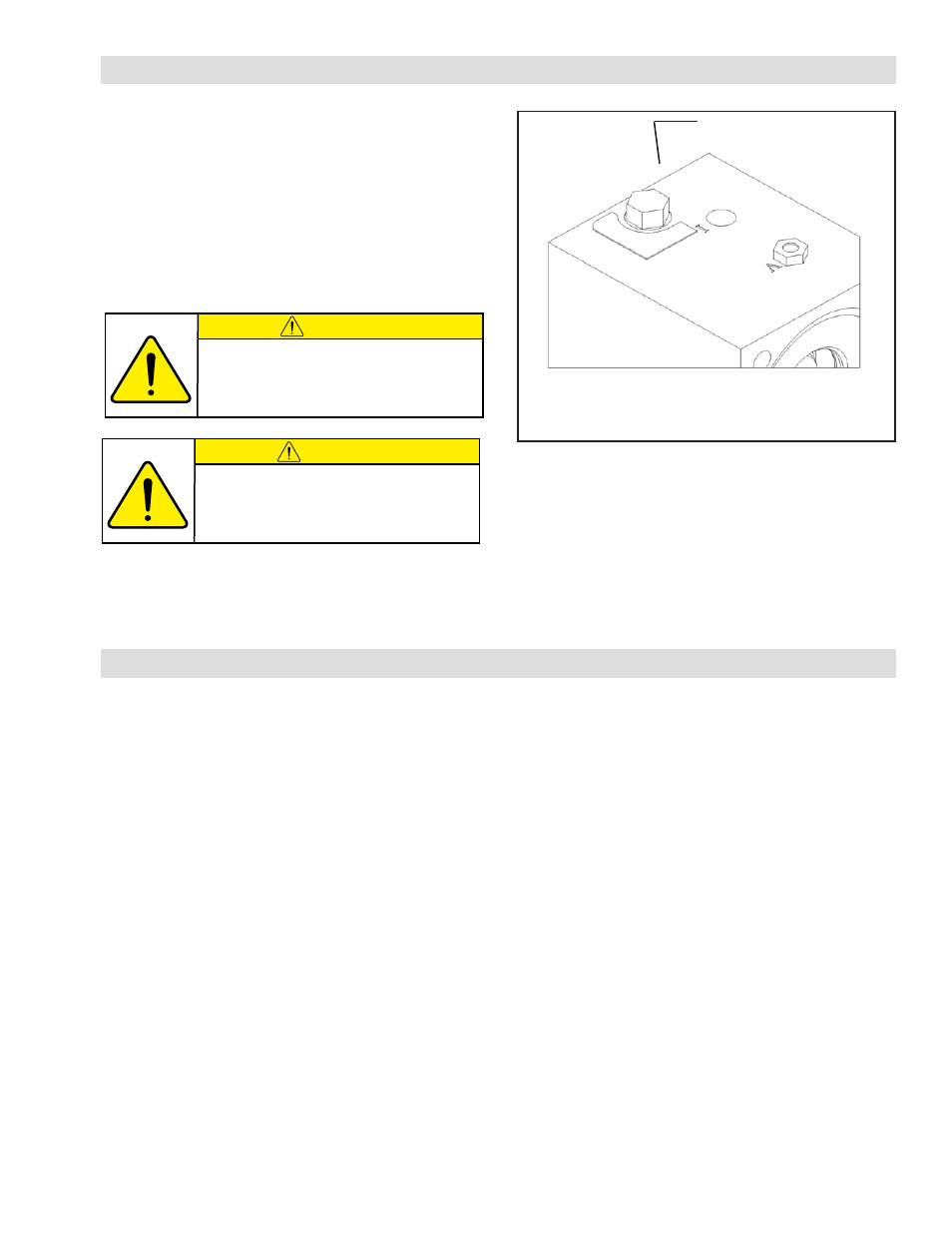

Figure 6

Manual Release

Turn the bolt clockwise and hold to manually

release the Rod Lock.

Turn Clockwise Only.

CAUTION

The release of mechanism is designed to turn

only in the clockwise direction, as shown by

the arrows on the product. Do not turn the

bolt counterclockwise; damage to the release

mechanism may result.

CAUTION

Do not over-torque release mechanism.
Using excessive torque may damage
mechanism.

SERVICE RECOMMENDATION

NOTE: The rod lock assembly is designed for extended service life. Due to this long product life, stored spring

energy, and the complexity of the internal components, Nexen recommends that all service be performed by trained

personnel.

Do not attempt to remove the retaining ring and dismantle the rod lock assembly. This product is spring loaded

and under pressure. If the product malfunctions, replace the unit or contact Nexen.
