GENERAL SPECIFICATIONS
Specifications
Release Pressure: *4.0 bar (60 psi)
Service Temperature: 4.5 - 50 C (40 - 120 F)
Approximate Weight: RBR20 - 0.51 kg [1.12 lbs]
RBR25 - 0.47 kg {1.04 lbs]
RBR30 - 1.24 kg [2.74 lbs]
RBR35 - 1.65 kg [3.63 lbs]
GENERAL SAFETY PRECAUTIONS
Designed for static holding
only. Any use as a dynamic
or emergency-stop brake will
result in a failure to hold the
load and may cause serious
injury or death.
*Rail brakes are factory set to disengage at 4 bar
[60 psi]. However, an air pressure of 5.0 bar [72 psi]
will ensure a minimum facing-to-rail clearance of
.05 mm [.002”] per side. The additional clearance at
5.0 bar [72 psi] will help reduce facing drag caused
by rail variation.
CAUTION
Watch for sharp features when
installing and servicing the brake.
The brake has complex and
machined edges.
WARNING
Keep indoors. This product is
intended for indoor environments
only. Use of the brake outdoors
will damage components.
WARNING

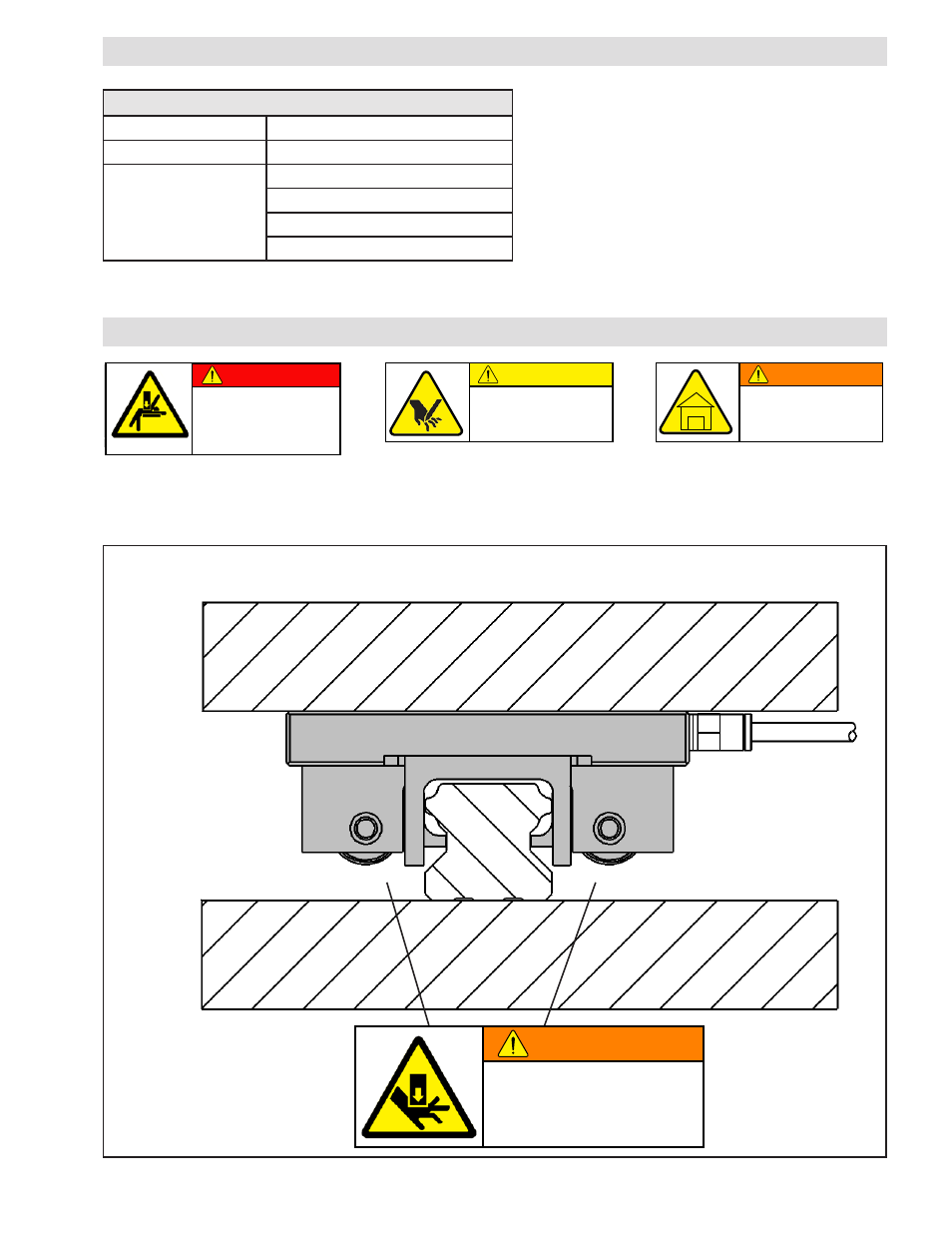

Crush hazard. Keep hands and
fingers clear. Use guarding
where necessary.
