Venting Parts & Dimensions

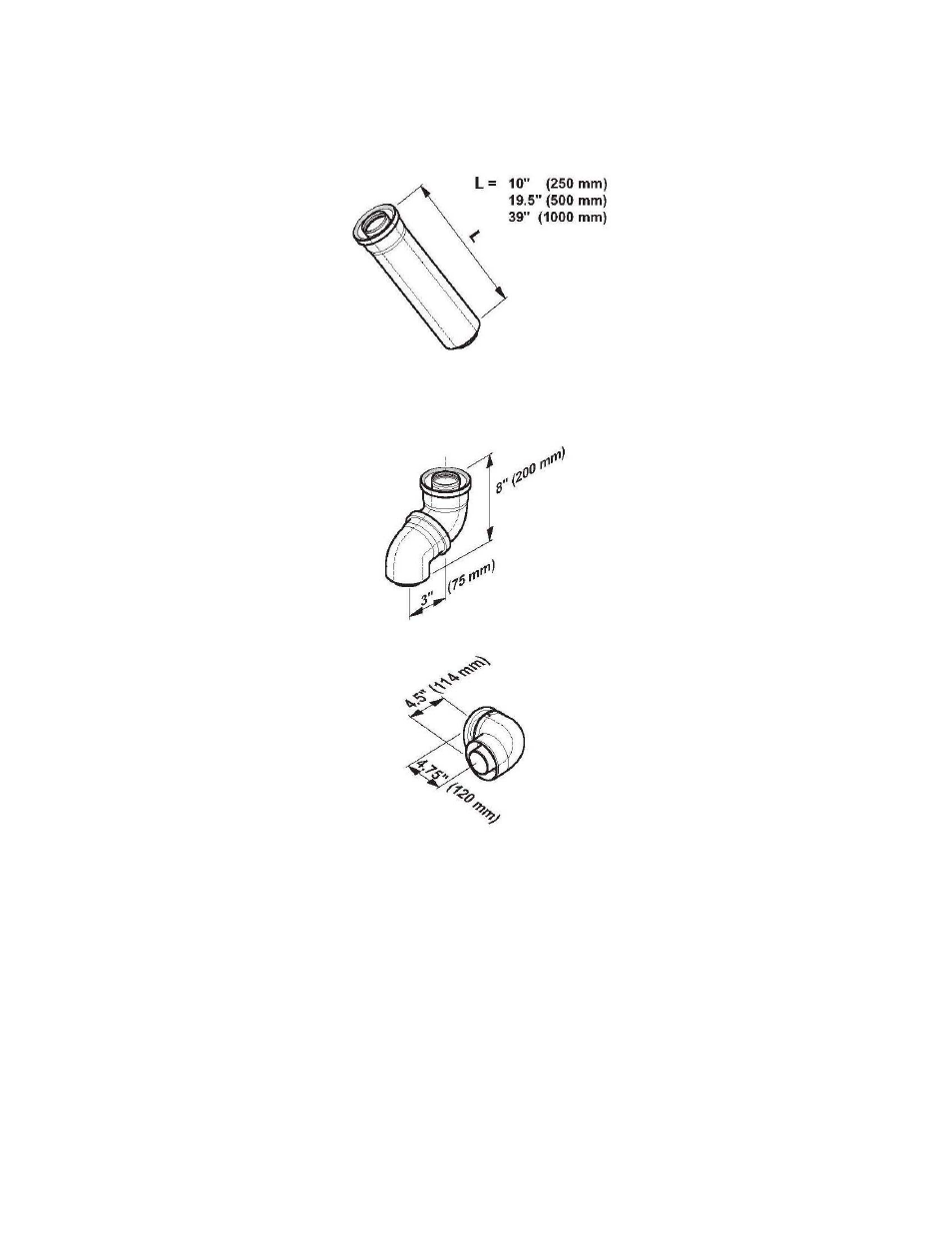

Components Needed for Direct Vent Applications
Figure 18.
Vent Extensions, (3) Different Lengths.
10 in., p/n 224087PP
19.5 in., p/n 224079PP
39 in., p/n 224080PP
Figure 19.
(2) 45º Vent Pipe Elbows, Sold in Pairs Only, p/n 224077PP.
Figure 20.
90º Vent Pipe Elbow, p/n 224078PP.
