MANUFACTURED HOME (MOBILE HOME)

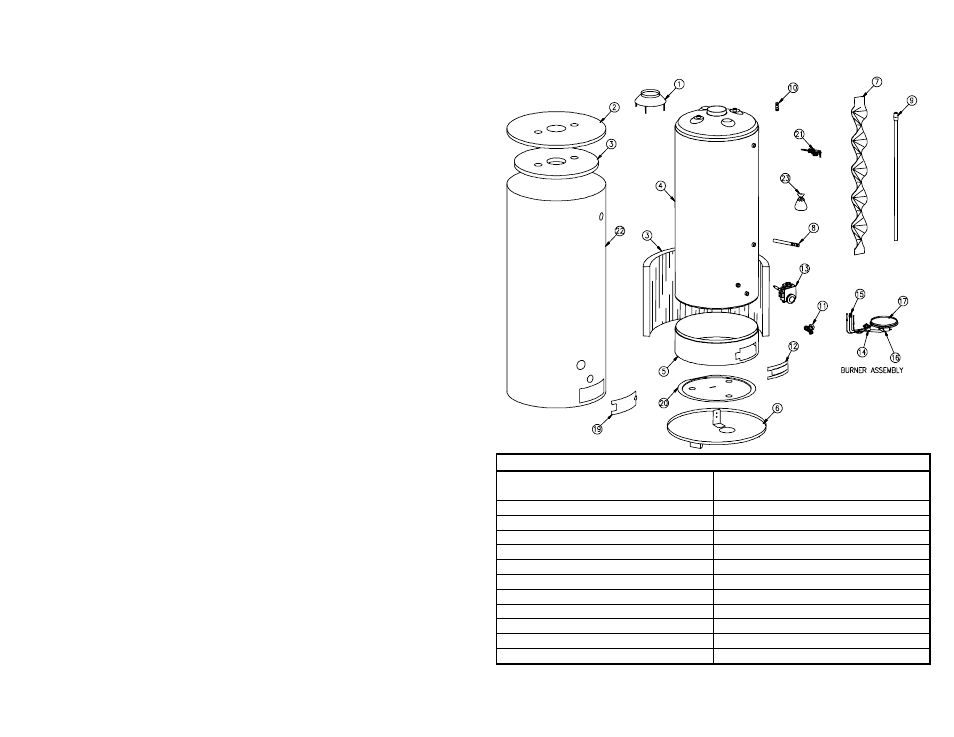

GAS-FIRED WATER HEATER PARTS LIST
PART NAME & DESCRIPTION
1. Draft Diverter 13. Thermostat w/ECO (Convertible-
Nat. or L.P. Gas)
2. Jacket Top 14. Pilot Assembly
3. Foam / Fiberglass Insulation 15. Gas Feed Line (Burner)
4. Glass Lined Tank 16. Main Burner Orifice
5. Tank Skirt Assembly 17. Burner
6. Jacket Base Assembly 18. Pilot Orifice
7. Flue Baffle Assembly 19. Outer Door
8. Cold Water Inlet Tube w/Nipple 20. Radiation Shield
9. Magnesium Anode 21. T&P Relief Valve (Optional)
10. Hot Water Outlet Nipple 22. Jacket
11. Drain Valve 23. Gas Conversion Kit
12. Inner Door
