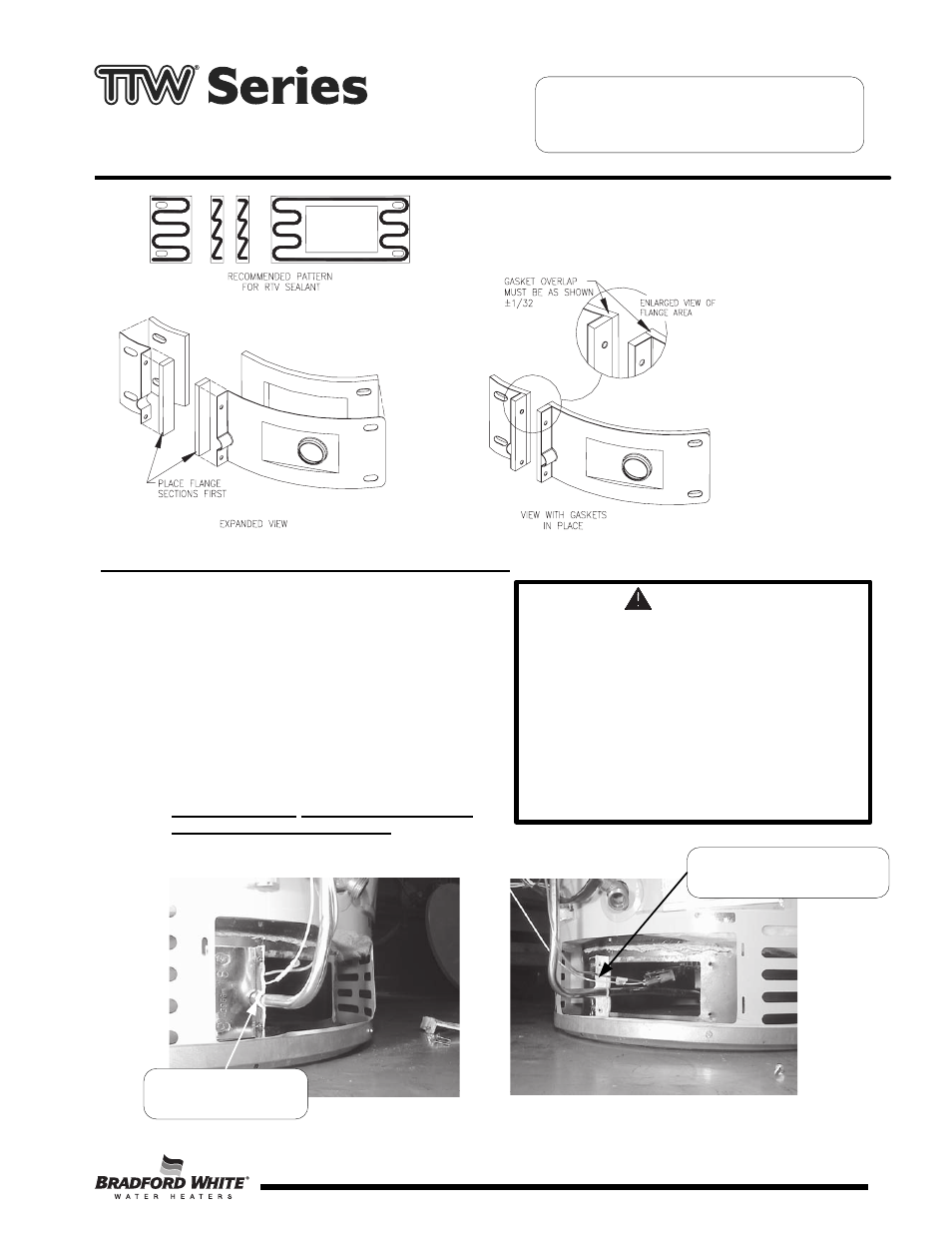

Installation of Inner Door With Gasket.

WARNING

Stripped fastener connections may allow

for seal breach of inner door. A seal

breach may result in a fire or explosion

causing property damage, personal injury

or death. Do not over tighten screws in

steps 8, 10 and 11.

If a fastener connection is stripped,

contact the manufacturer listed on the

water heater rating plate.

Radiused Channel

for Feedline

Position pilot tubing and

igniter/sensor wire.

TTW SERVICE PROCEDURE

XIII

Inner Door/Gasket Removal, Inspection

Replacement and Reinstallation

Page 35

Step 7.

Clean any residual gasket residue or other debris
from combustion chamber surface before
installing the inner door/gasket assembly.

Step 8.

Place the left side inner door into position first.
Firmly position the radiused channel of the inner
door around the feedline. Using the 1/4” hex drive
screws from step 3c, secure left side inner door in
place.

DO NOT OVER TIGHTEN SCREWS.

Step 9

Position pilot tube and igniter/sensor wire
against left side inner door flange gasket.

DO NOT ROUTE THROUGH RADIUSED

CHANNEL WITH FEEDLINE.
